R&S ZNB - DUTVNA Connections

GUI Reference
R&S
®
ZNB/ZNBT
662User Manual 1173.9163.02 ─ 55
DUT/VNA Connections

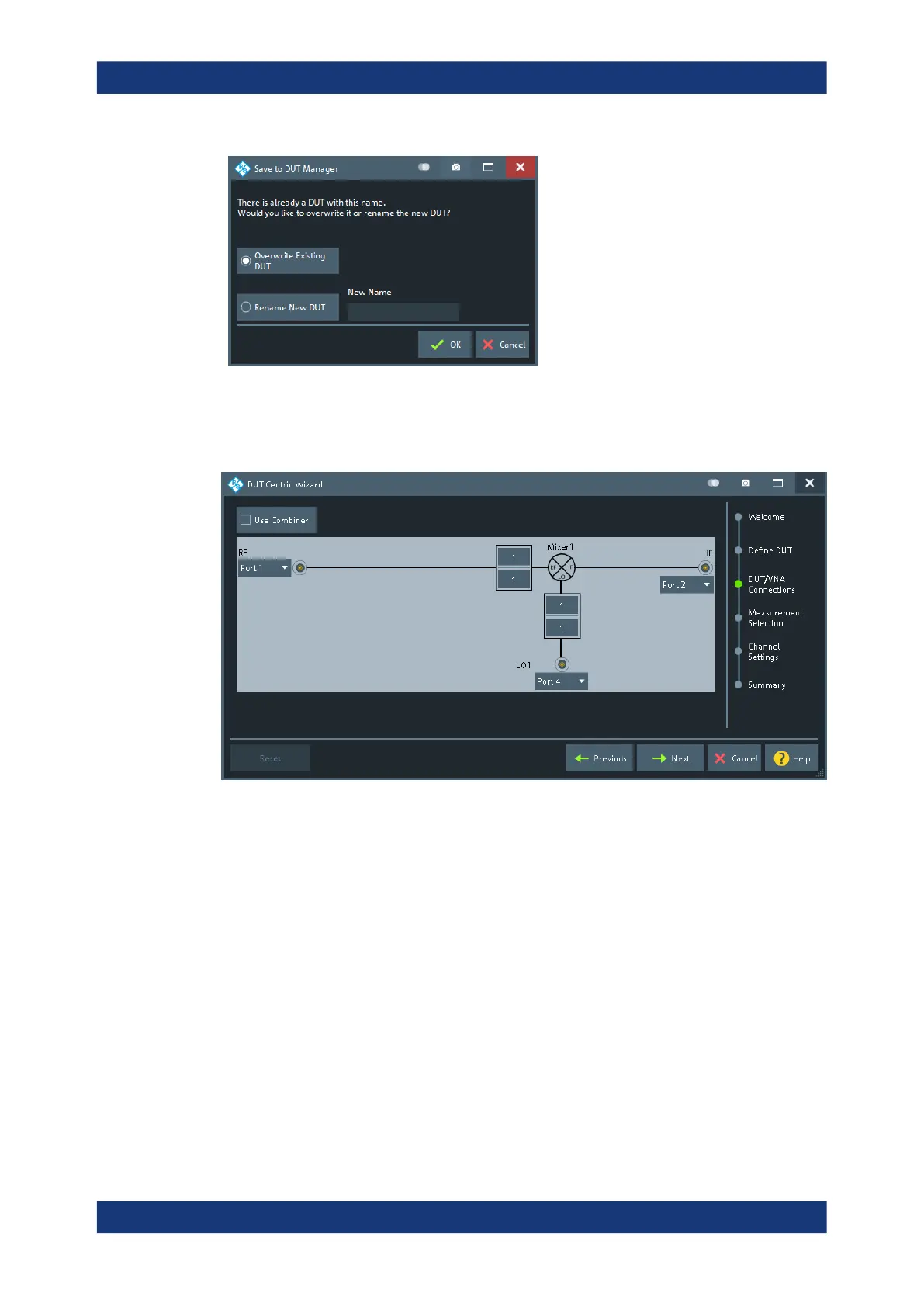

The "DUT/VNA Connections" page of the "DUT Sentric Wizard" allows you to configure
the RF connections between VNA and DUT.
Figure 6-69: Mixer/VNA connections
Applic Softtool
