● Use [-] to change the sign of the value.
●
Use [G/n], [M/μ], [k/m], or [x1] to multiply the entered value with factors of 10
(-)9
,
10
(-)6
, 10
(-)3
or 1 and to add the appropriate physical unit.
To enter a character string:
1. Tap a character data input field to activate it.
2. Press the DATA ENTRY keys as if you were writing a short message on your
mobile phone.
● Use [0] to [9] to enter the corresponding numbers.
● Use [.] and [-] to enter a dot or hyphen.
● Use Use [G/n], [M/μ], or [k/m] to enter the letters G, M or K (case-insensitive).
●
Use the
key to correct wrong entries, deleting the character to the left of the
current cursor position.
●
Press to complete an entry.
● Press [ESC] to discard the entries made.
3. To enter letters other than G, M or K, you can also use one of the methods descri-
bed in the following sections:
● Chapter 4.3.5.3, "Using the Analyzer's On-Screen Keyboard", on page 63
●
Chapter 4.3.5.4, "Using the Windows
®
On-Screen Keyboard", on page 63
4.3.5.2 Using the Numeric Editor

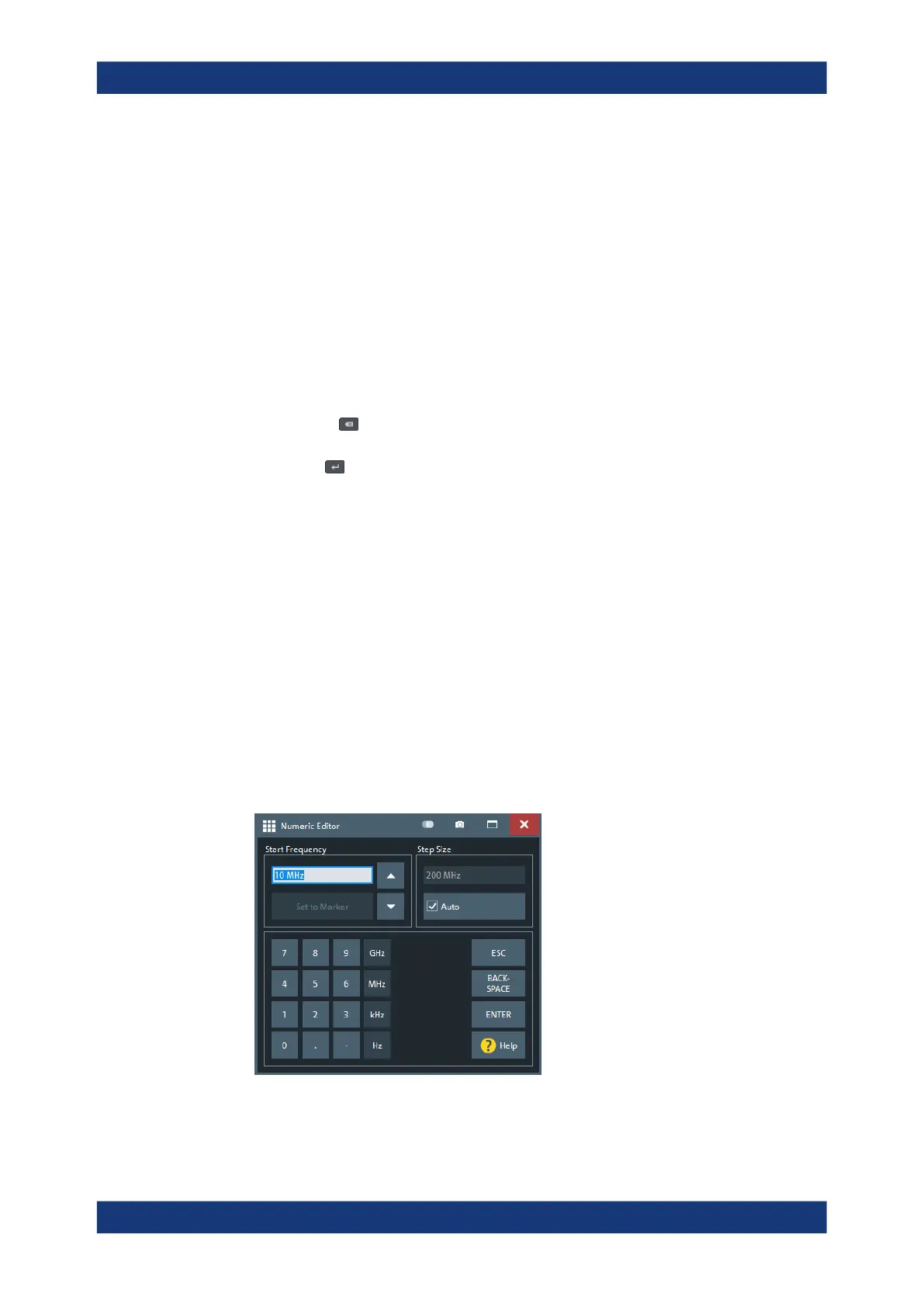

The "Numeric Editor" is a tool for convenient entry and modification of numeric values.
It is available for all numeric input fields in the analyzer GUI.
Operation with touchscreen or mouse:
1. Double-tap (double-click) a numeric input field in a dialog or on a softtool to open
the numeric editor.
2. Use the buttons in the numeric keypad to compose the numeric input value.
