Remote command:
MMEMory:LOAD:VNETworks<Ch>:SENDed:DEEMbedding<PhyPt>
MMEMory:LOAD:VNETworks<Ch>:BALanced:DEEMbedding<LogPt>
Cancel
Closes the dialog without applying any deembedding files.
6.13.5.2 Measure Coupon

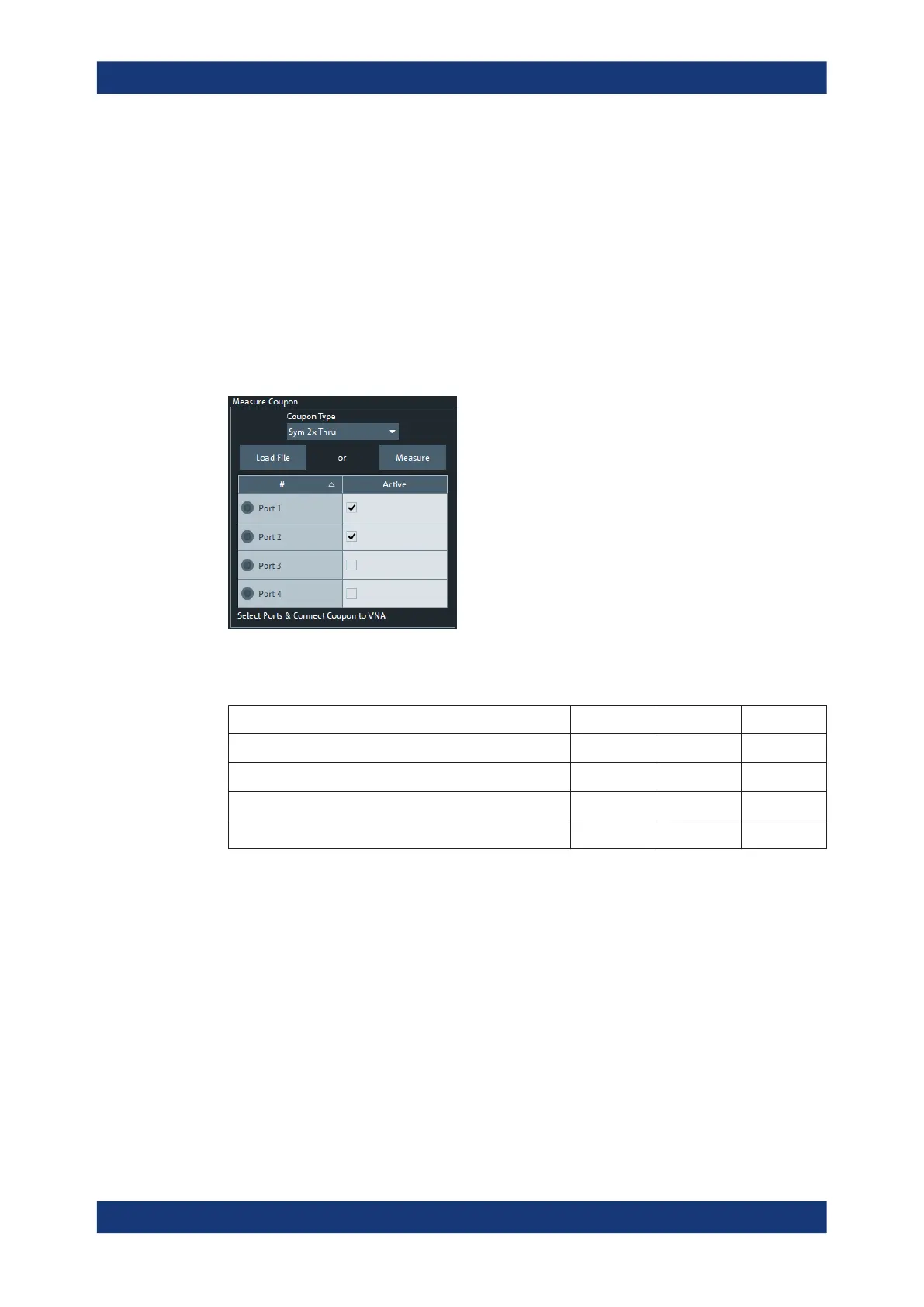

The "Measure Coupon" section allows you to measure one or more test coupons for
the related fixture.
Coupon Type
Selects the coupon type to be measured. The following coupon types are supported:
ISD SFD EZD
"Sym 2x Thru" ✓ ✓ ✓
"1x Open" ✓ ✓ –
"1x Short" ✓ ✓ –
"1x Open, 1x Short" ✓ – –
Remote command:
CALCulate:FMODel:ISD<Ph_pt>:COUPon:TYPE
CALCulate:FMODel:SFD<Ph_pt>:COUPon:TYPE
Measure / Measure Open / Measure Short
Starts the coupon measurement at the Active ports.
The display will change to show all the S parameter measurements being made. The
resulting Touchstone file is written to C:\Users\Public\Documents\Rohde-Schwarz\Vna
\Embedding.
For Coupon Type "1x Open, 1x Short" (ISD only) the measurement proceeds in two
steps: one for the "1x Open" and one for the "1x Short" coupon. The label of the "Mea-
sure" button changes accordingly.
Offset Embed Softtool
To Next Page
