GUI Reference
R&S
®
ZNB/ZNBT
591User Manual 1173.9163.02 ─ 55
All files generated by actions in this dialog are stored in the directory C:\Users\Public
\Documents\Rohde-Schwarz\Vna\Embedding.
The current implementation assumes symmetrical lead-ins and lead-outs.

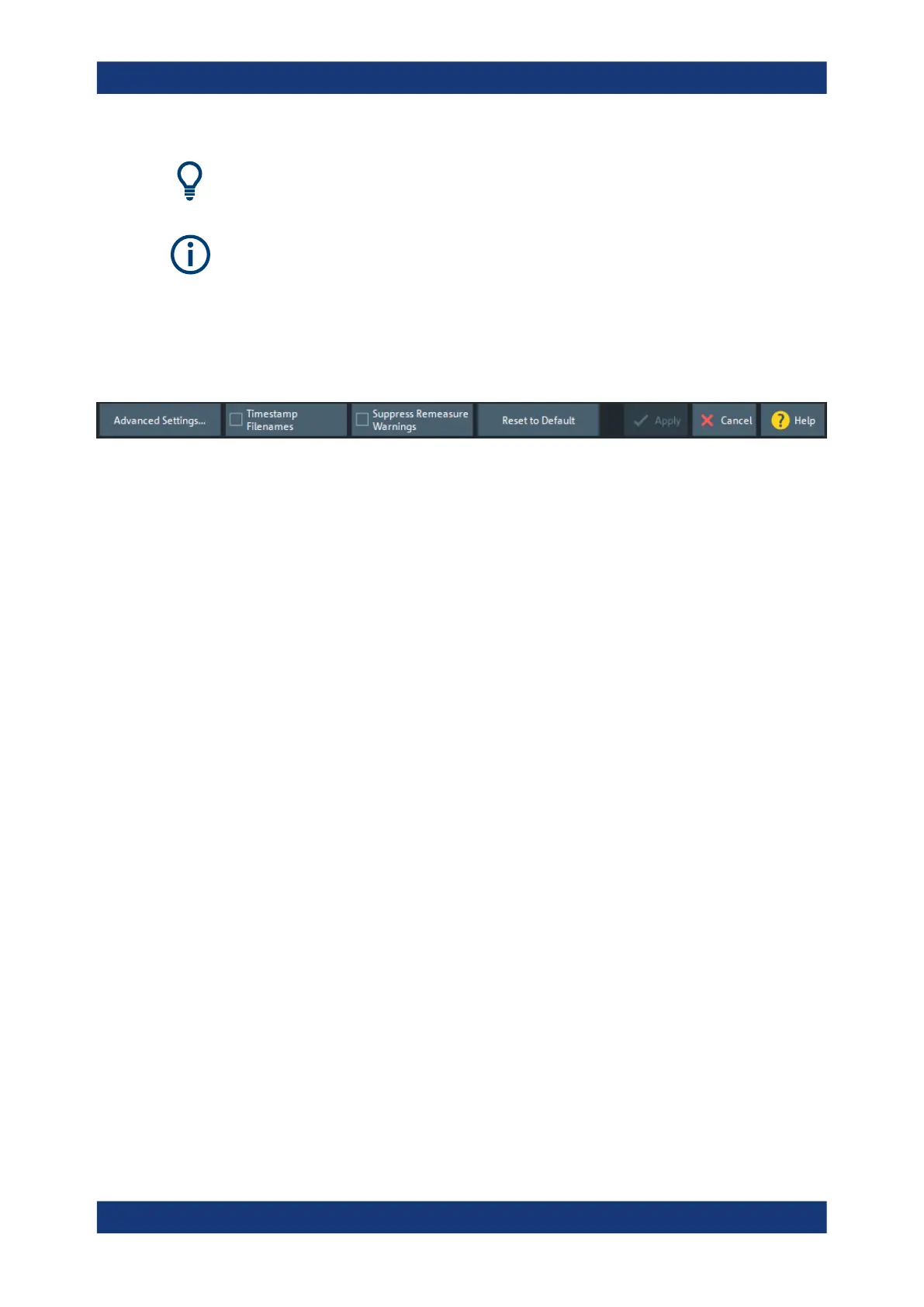

6.13.5.1 Common Controls on the Dialog
The following controls are located at the bottom of each dialog (ISD/SFD/EZD, single-
ended/balanced):
Advanced Settings ...
Opens the Advanced Settings dialog of the selected tool. See:
●
Chapter 6.13.5.6, "ISD Advanced Settings", on page 596
●
Chapter 6.13.5.7, "SFD Advanced Settings", on page 600
●
Chapter 6.13.5.8, "EZD Advanced Settings", on page 601
Timestamp Filenames
If checked, the names of subsequently generated "Test Coupon" and "DUT + Test Fix-
ture" files are prefixed with the current date and time.
Remote command:
CALCulate:FMODel:REName
Suppress Remeasure Warnings
If checked, the Measure Coupon and Measure DUT + Test Fixture don't raise warn-
ings, if the measurement is repeated with different ports.
Remote command:
n.a.
Reset to Default
Restores the default settings of the selected fixture modeling tool. This comprises:
●
the states and settings in the Measure Coupon, Measure DUT + Test Fixture and
Save Fixture Model sections (common for all tools)
●
the advanced settings of the selected tool (tool specific)
Remote command:
n.a.
Apply
This button is only active, if the selected deembedding tool has been successfully run
(see Chapter 6.13.5.4, "Save Fixture Model", on page 594).
Applies the calculated deembedding files <...>_left_DUT.sNp and
<...>_right_DUT.sNp) to the ports marked "Active" in the Save Fixture Model sec-
tion.
