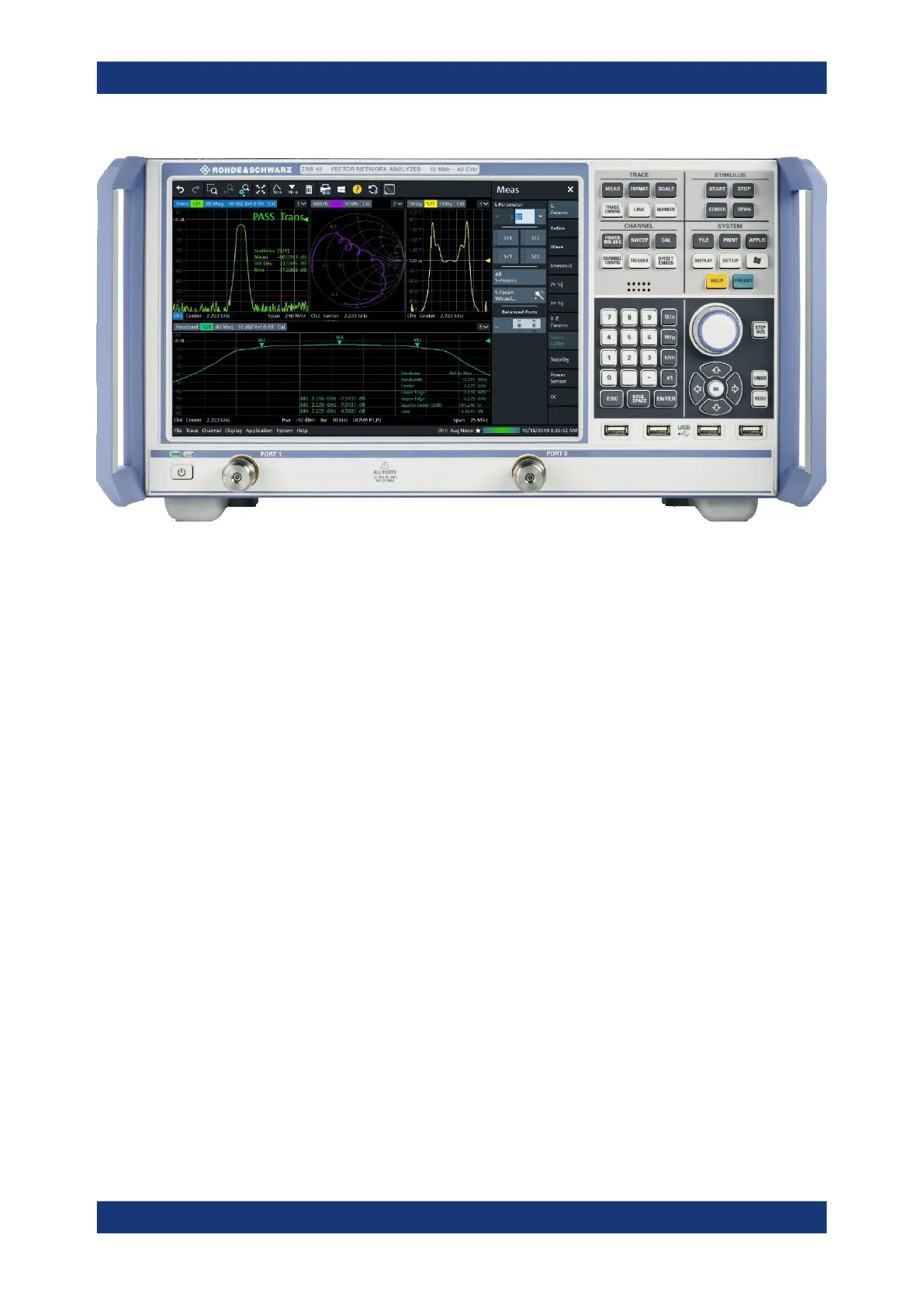

Figure 4-2: R&S ZNB40 with two ports
4.2.1.1 Touchscreen
The analyzer is equipped with a 12.1'' XGA color touchscreen. The touchscreen pres-
ents all measurement results, mostly in the form of diagrams. Besides, all instrument
functions can be accessed and operated by tapping the control elements on the touch-
screen. For an introduction to touchscreen operation, refer to Chapter 4.3.1, "Manual
Operation ", on page 45.
The following sections contain further useful information about manual control of the
instrument.
●
Refer to the other sections in chapter Chapter 4.3, "Operating the Instrument",
on page 45 to learn how to handle traces and diagrams, and how to use menus,
keys and softtools.
●
Refer to Chapter 5.2.1, "Display Elements of a Diagram", on page 91 to obtain
information about the results in the diagram.
●
Refer to section Chapter 6.16, "Display Softtool", on page 682 to learn how to cus-
tomize the screen.
●
Refer to the data sheet for the technical specifications of the display.
