GUI Reference
R&S
®
ZNB/ZNBT
626User Manual 1173.9163.02 ─ 55
The HCOPy... commands provide the printer settings; see Chapter 8.3.7, "HCOPy
Commands", on page 1051.

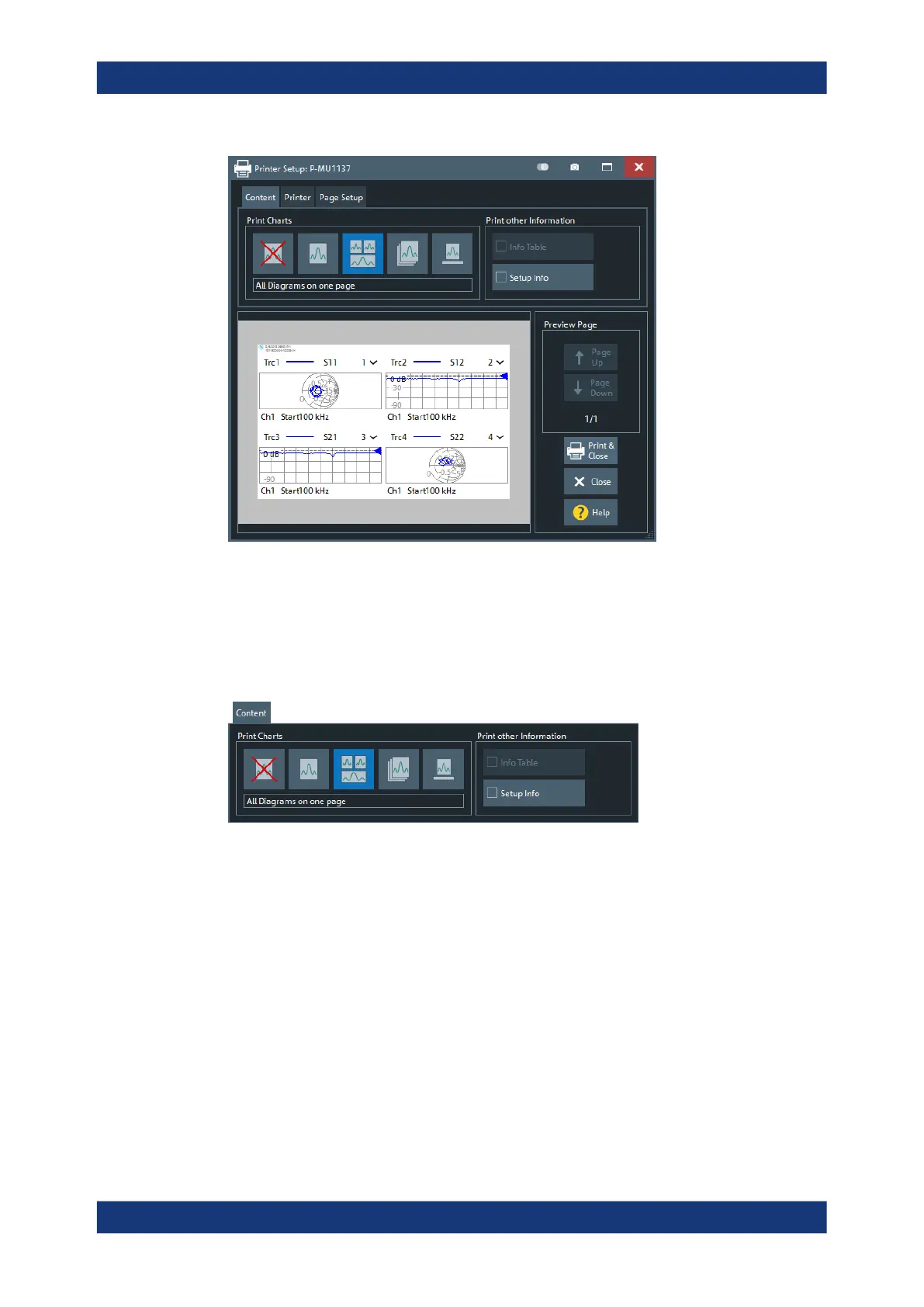

6.14.4.1 Content Tab
The "Content" tab allows you to select the contents to be printed.
The selected item in the "Print Charts" group specifies how the active recall set is prin-
ted. Currently the following options are offered: "No Diagram at all", "Active Diagram
only", "All diagrams on one page", "All diagrams on their own page" and "Hard copy of
the diagram". The latter is the new print option which preserves colors and layout.
If selected in the "Print other information" group, the content of the "Info Table" (see
"Info Table: Show / Position" on page 689) and/or "Setup Info" (see "Setup Tab"
on page 711) is printed on additional pages.
6.14.4.2 Printer Tab
The "Printer" settings select one of the installed printers and specify printer options.
