The R&S ZNB/ZNBT uses the Clear Signal Solutions AITT-DL implementation of the
Delta-L v4.0 algorithms (see https://clearsig.com/clearsig/tools/#Delta). It allows you to
perform:
●
1L (one line/length) analysis
Typically used for high-volume manufacturing (relative comparison)
●
2L analysis
Typically used for board-quality validation (removes the test fixture impact)
●
3L analysis
Typically used for material characterization (best accuracy, self-validation of
results).
3L
2L
1L

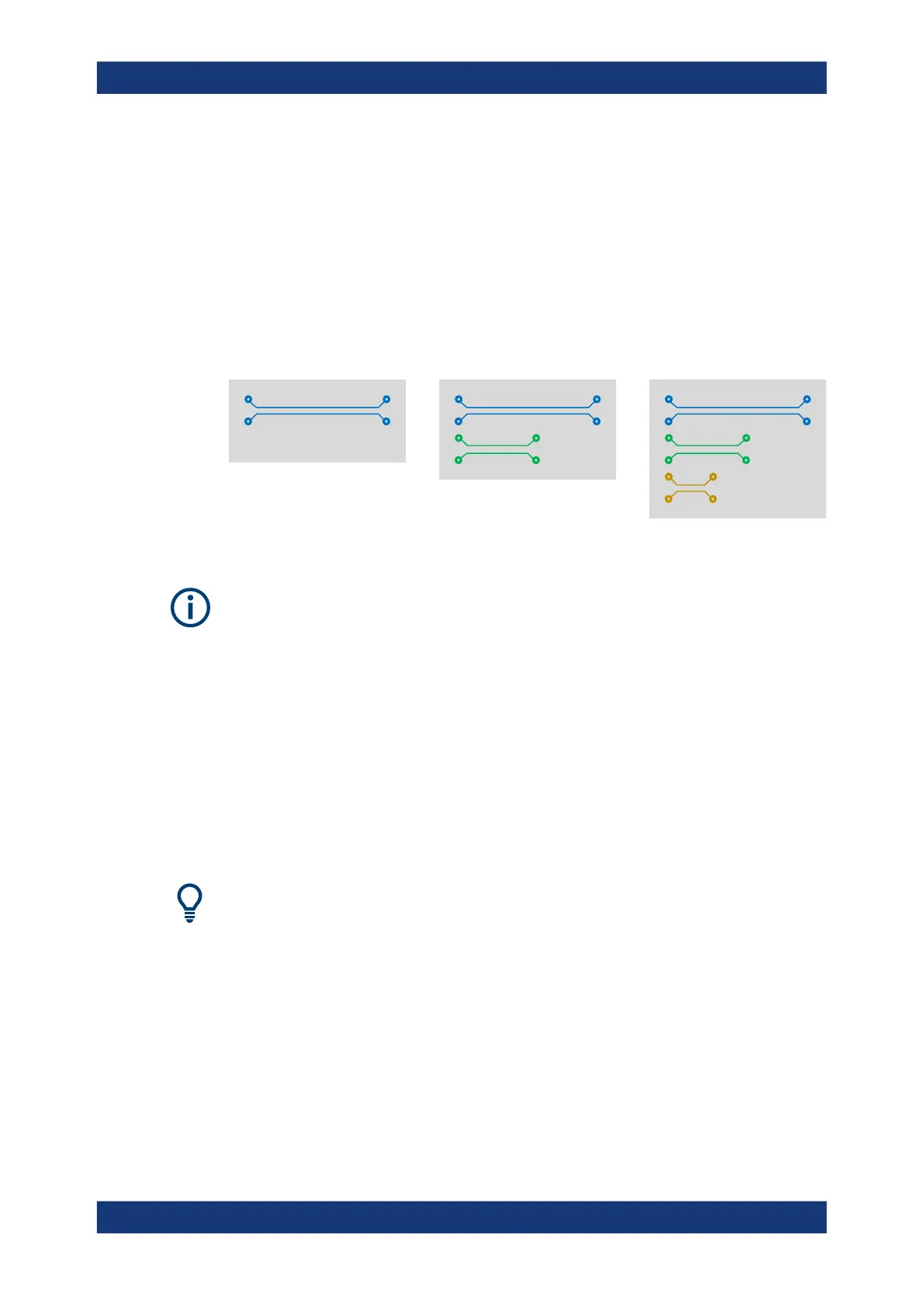

Figure 5-22: Test coupons for 1L, 2L and 3L measurements
Option R&S ZNB/ZNBT-K231 can be ordered with a new instrument or retrofitted at
Rohde&Schwarz service.
5.7.12 Bias Tees (R&S ZNB only)
Option R&S ZNB-B1 for R&S ZNB4|8
The hardware option R&S ZNB-B1 provides additional BNC inputs (labeled BIAS 1,
2,...), which can be used to apply an external DC voltage (bias) to the analyzer ports:
●
Bias Tees for Two-Port R&S ZNB4|8, Order No. 1316.1700.02
●
Bias Tees for Four-Port R&S ZNB4|8, Order No. 1316.1700.04
●
R&S ZNB20|40 are always equipped with bias tees.
●
Bias Tees are not available for the R&S ZNBT.
●
The optional bias tees have an impact on the start frequency of R&S ZNB4 and
R&S ZNB8 network analyzers; for details refer to the data sheet and to
[SENSe:]FREQuency... commands.
