For PAM signals these results are not available.
For a description of the result values see "Eye Diagram Results" on page 210.
Furthermore it is possible to change the Rise (and Fall) Time definition for the eye
measurement from the standard 10–90% (90–10%) step to any other "Start
Value"/"Stop Value" pair.
Remote command:
CALCulate<Chn>:EYE:MEASurement:TTIMe:THReshold
Export Measurements...
If the active trace is an eye diagram, the "Export Measurements" button opens the
"Export Eye Measurements – ASCII Files" dialog that allows to save the Eye Diagram
Results to an ASCII file.

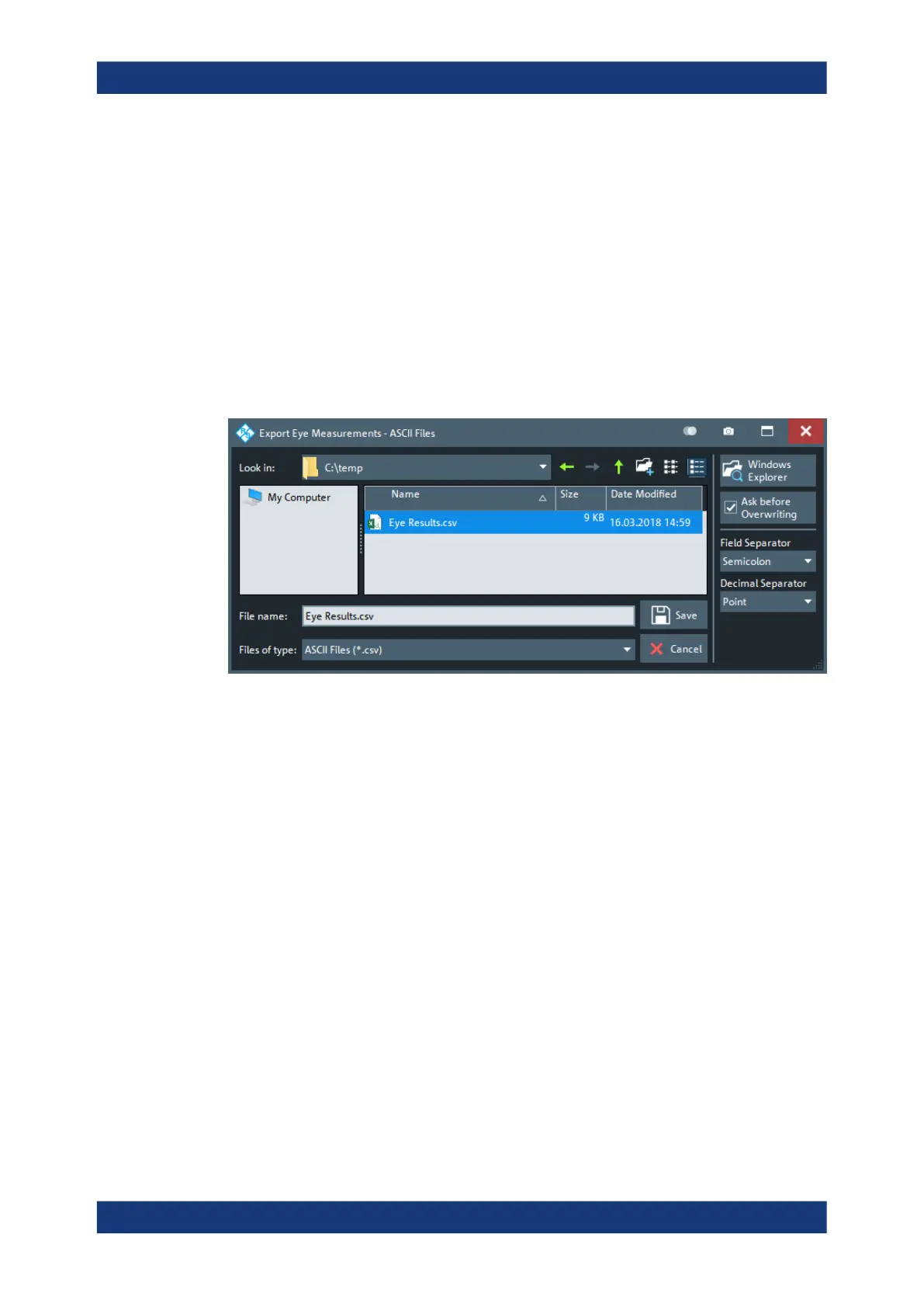

The "Export Eye Measurements – ASCII Files" dialog is a standard "Save File" dialog
with the additional options of selecting a "Field Separator" (semicolon, comma, tab or
space) and a "Decimal Separator" (comma or point).
Note that the decimal separator and field separator must be different.
Remote command:
MMEMory:STORe:EYE:MEASurements
6.15.2.5 Eye Diagram Dialog
Allows basic configuration of the eye diagram simulation.
Access: SYSTEM – [APPLIC] > "TDR" > "Eye Diag" > "Eye Diagram..."
Applic Softtool
