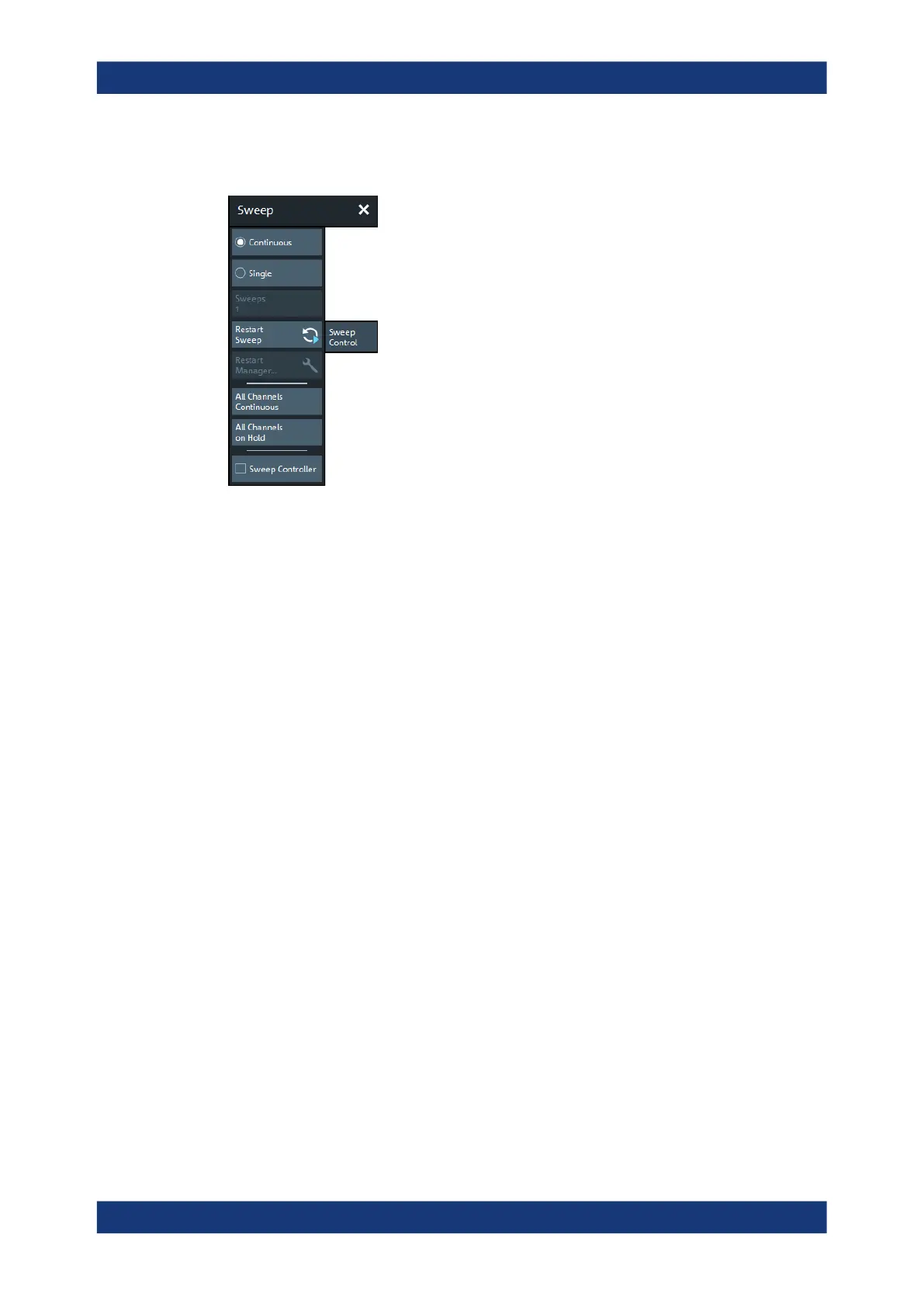

6.10.4.1 Controls on the Sweep Control Tab
Continuous / Single
Activate either continuous or single sweep mode for the active channel.
●
In "Continuous" mode, the analyzer measures continuously, repeating the current
sweep.
●
In "Single" sweep mode, the measurement is stopped after the configured number
of Sweeps. Restart Sweep initiates a new measurement cycle.
Tip:
Use "All Channels Continuous" or "All Channels on Hold" to select a common sweep
mode for all channels.
If a Remote Language other than DEFAULT is used and "Sweep All Channels" is
selected in the Restart Manager Dialog, then the selected sweep mode applies to all
channels.
Remote command:
INITiate<Ch>:CONTinuous
See also:
CONFigure:CHANnel<Ch>:MEASure[:STATe]
CONFigure:CHANnel:MEASure:ALL[:STATe]
Sweeps
Selects the number of sweeps to be measured in "Single" sweep mode: the measure-
ment is stopped after the specified number of sweeps. This setting applies to the active
channel.
Tip: If a Remote Language other than DEFAULT is used and "Sweep All Channels" is
selected in the Restart Manager Dialog, then "Sweeps" applies to all channels.
Remote command:
[SENSe<Ch>:]SWEep:COUNt
[SENSe:]SWEep:COUNt:ALL
