This tab is only visible if the Extended Time Domain Analysis option R&S ZNB/
ZNBT-K20 is available.
●
If the active trace is represented as an eye diagram, the "X Axis Settings" are
grayed out, as shown above.
If the active trace is represented as a rise time or skew diagram, the "X Axis Set-
tings" allow you to adjust the center/span or start/stop, no matter if the X axis rep-
resents "Time" or "Distance" (see "Time / Distance" on page 387).
6.15.3 DUT Centric Application
The "DUT Centric" application provides functions for configuring and managing DUTs
and for a DUT-centric measurement setup and calibration.
Access: SYSTEM – [APPLIC] > "DUT Centric"
6.15.3.1 DUT Centric Wizard
The "DUT Centric Wizard" guides you through the measurement setup for certain fun-
damental DUT types.
Access: SYSTEM – [APPLIC] > "Application: DUT Centric" > "DUT Centric Wizard"

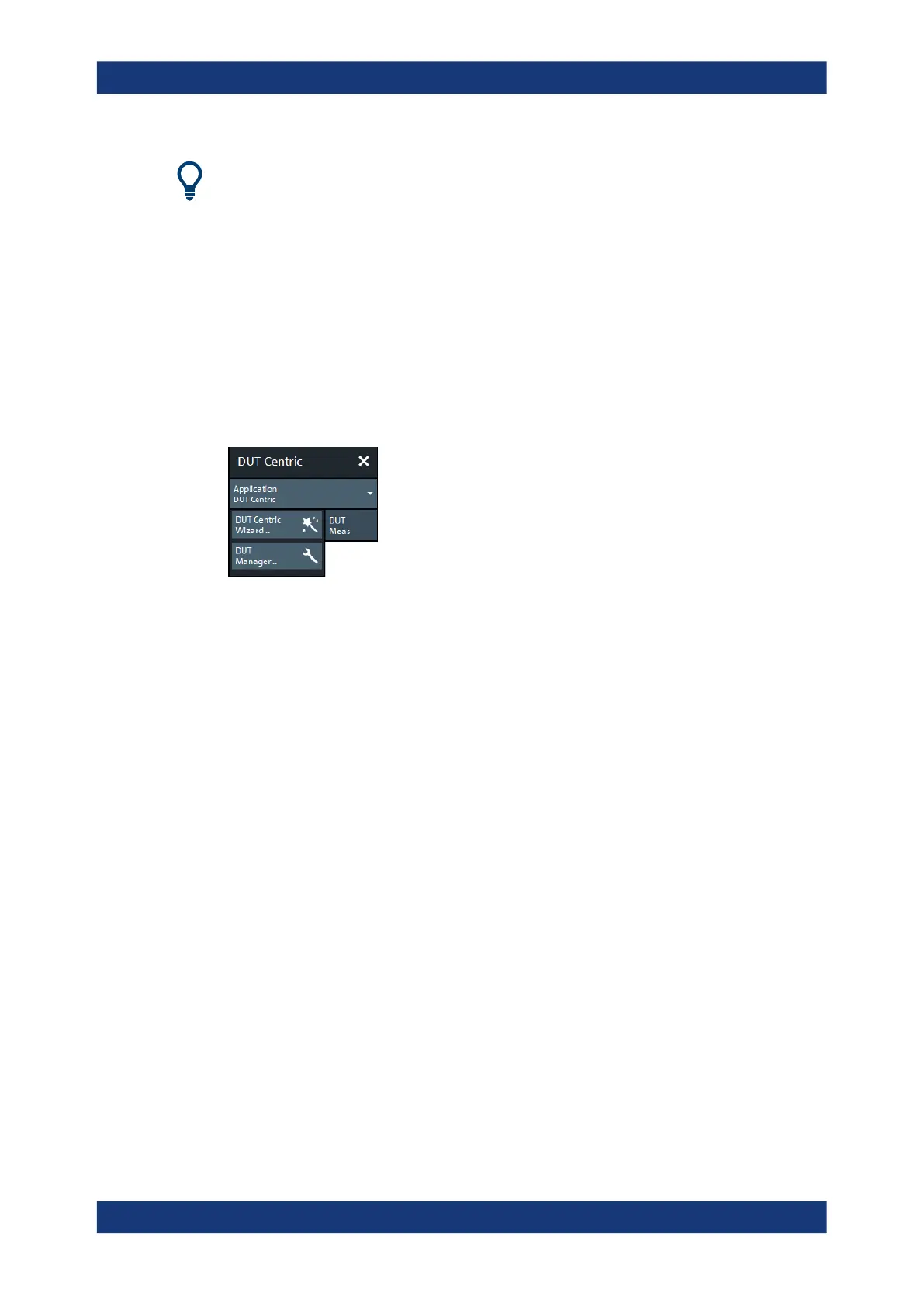

Applic Softtool
