GUI Reference
R&S
®
ZNB/ZNBT
661User Manual 1173.9163.02 ─ 55
Guided Mixer Setup
Define DUT

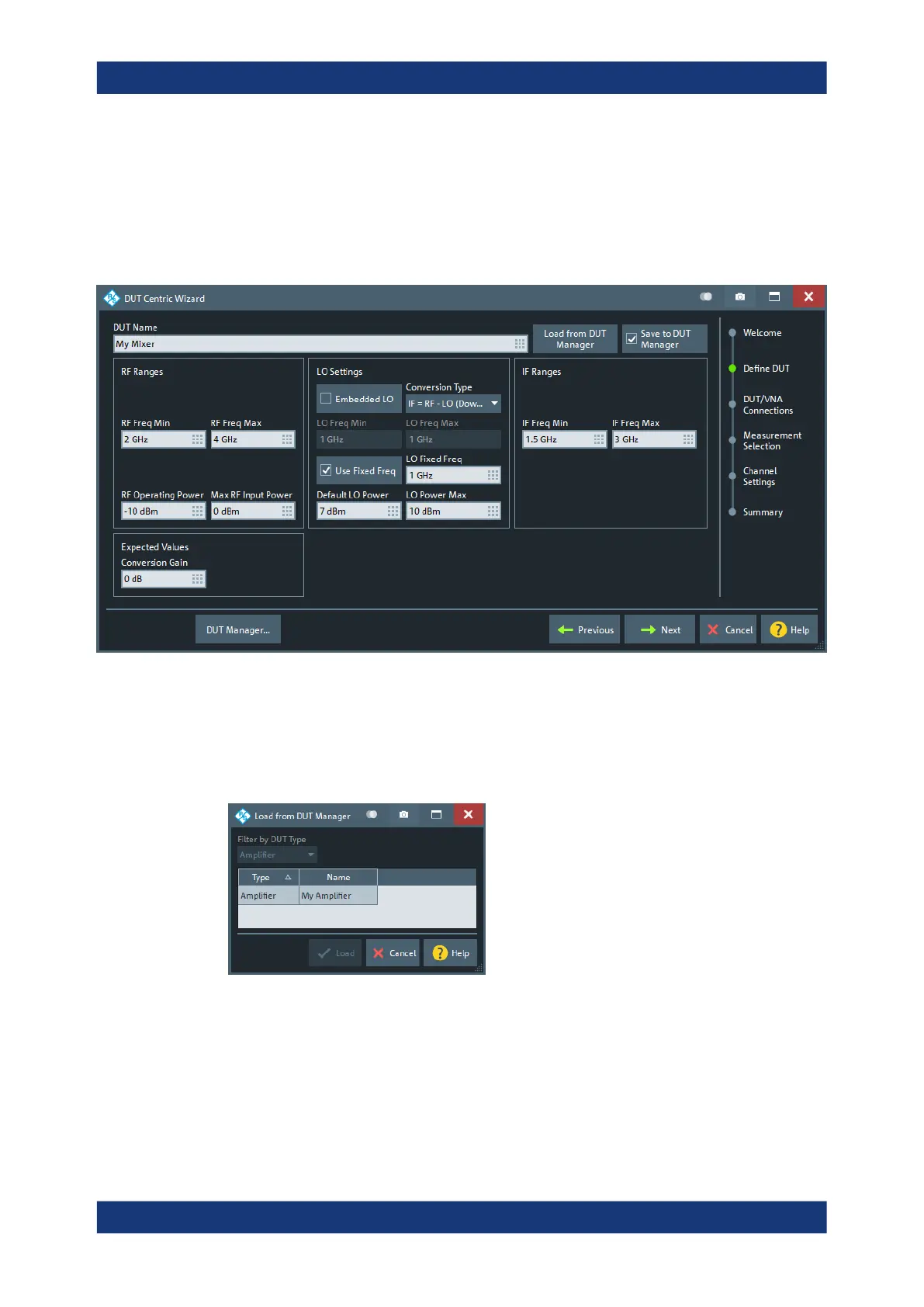

The "Define DUT" page of the "DUT Centric Wizard" allows you to set up the basic
properties of a mixer.
Similar to the Mixer Configuration Dialog of the DUT Manager.
Load from DUT Manager
Use "Load from DUT Manager" to load a previously configured mixer from the DUT
manager.
This will open a dialog that allows you to select the DUT to be loaded:
Save to DUT Manager
Use "Save to DUT Manager" to persist new/modified mixer settings to the DUT man-
ager when you proceed to the next step of the "DUT Centric Wizard". If a DUT with the
same name exists, you are asked whether you want to overwrite the existing DUT con-
figuration, or to create a DUT with a different name.
