GUI Reference
R&S
®
ZNB/ZNBT
567User Manual 1173.9163.02 ─ 55

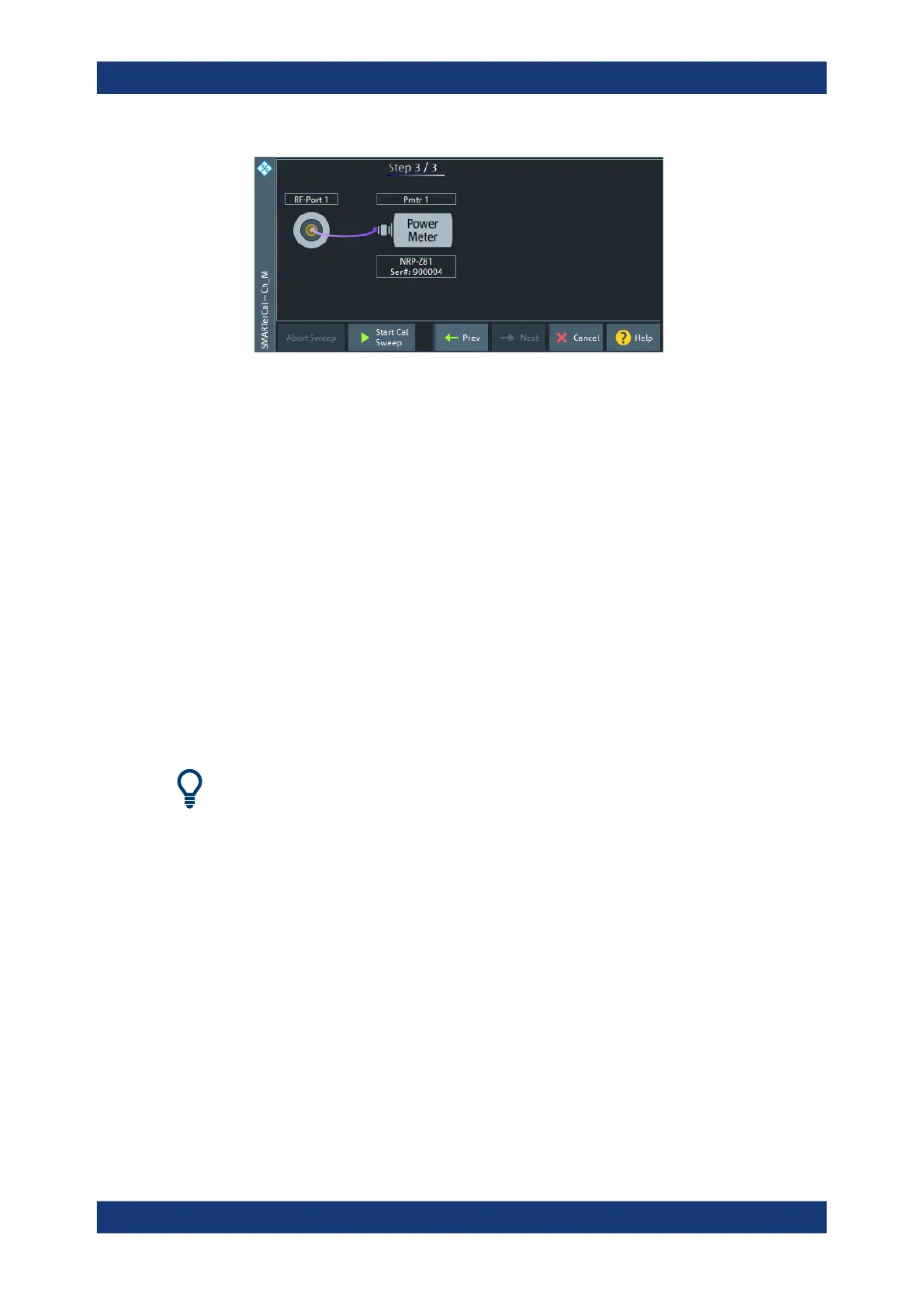

Figure 6-43: Scalar Power Calibration
6.12.6.5 SMARTerCal (Manual) Wizard for Mixer Mode
Allows to perfom a variant of a manual "SMARTerCal" that is specially tailored to the
"Mixer Mode".
Access: CHANNEL – [CHANNEL CONFIG] > "Mixer Mode" > "SMARTerCal" –
"Start... (Manual)"
Offers similar functionality as the general SMARTerCal Wizard (Manual), with the fol-
lowing differences:
●
Always all channels are calibrated
●
The affected test ports are already preselected and labeled according to their role
in the mixer measurement
●
The adequate calibration type is already preselected
●
A source flatness calibration can be automatically included as a the final calibration
step
Background information
Refer to Chapter 5.5.7, "SMARTerCal", on page 179 for background information
The wizard proceeds as follows:
1. Specify the remaining (non-fixed) properties of the manual SMARTerCal (required
hardware, ports, connections etc.)
