GUI Reference
R&S
®
ZNB/ZNBT
663User Manual 1173.9163.02 ─ 55

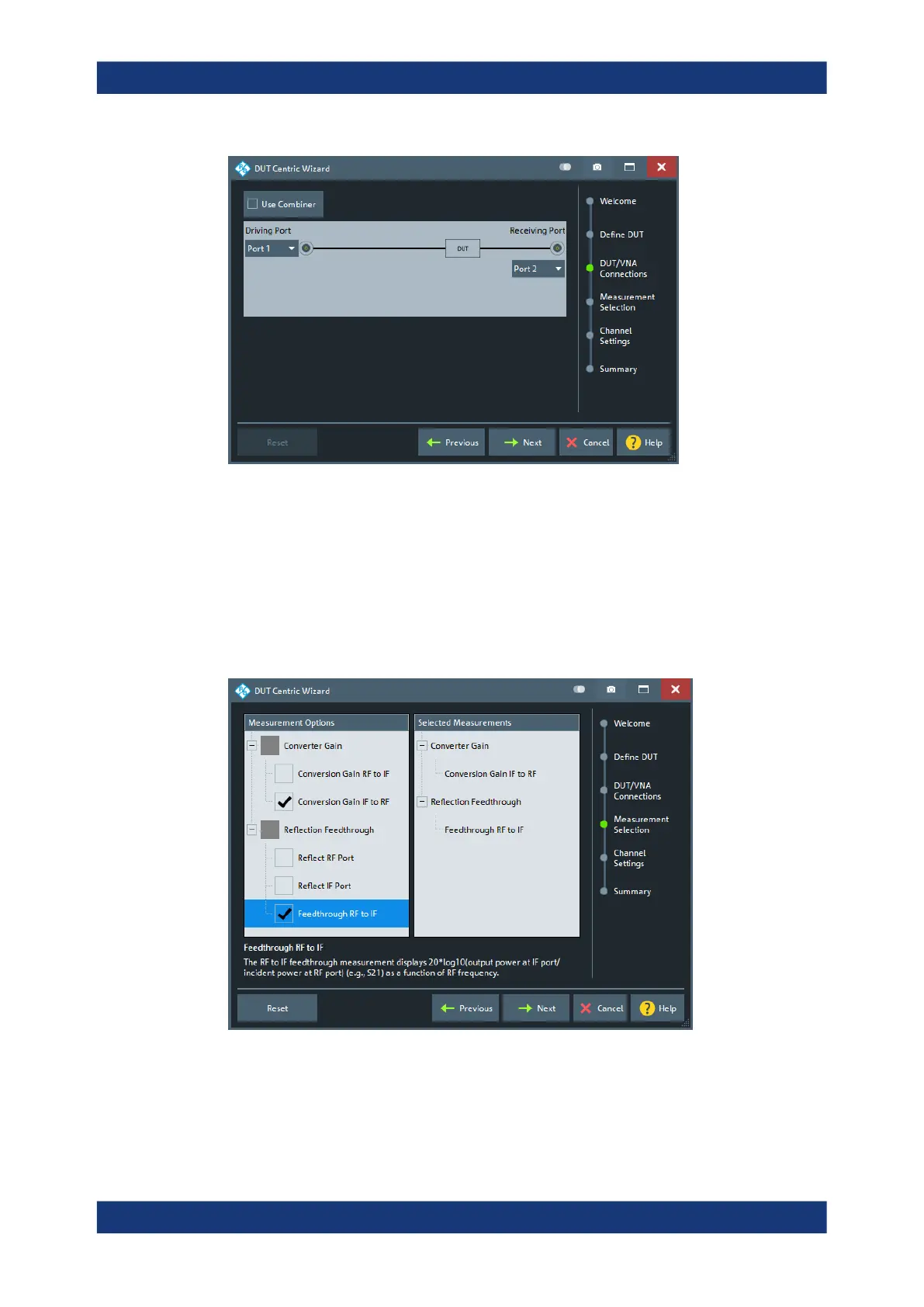

Figure 6-70: Amplifier/VNA connections
Which connections are actually possible, depends on the number of ports (on the ana-
lyzer and connected switch matrices) and the number of independent sources (on the
VNA and connected external generators).
Measurement Selection
The "Measurement Selection" page of the "DUT Centric Wizard" allows you to select
the mixer properties to be measured.
Channel Settings
The "Channel Settings" page allows you to change the measurement channel configu-
ration proposed by the "DUT Centric Wizard" based on the properties of the DUT, the
RF topology and the selected measurements.
