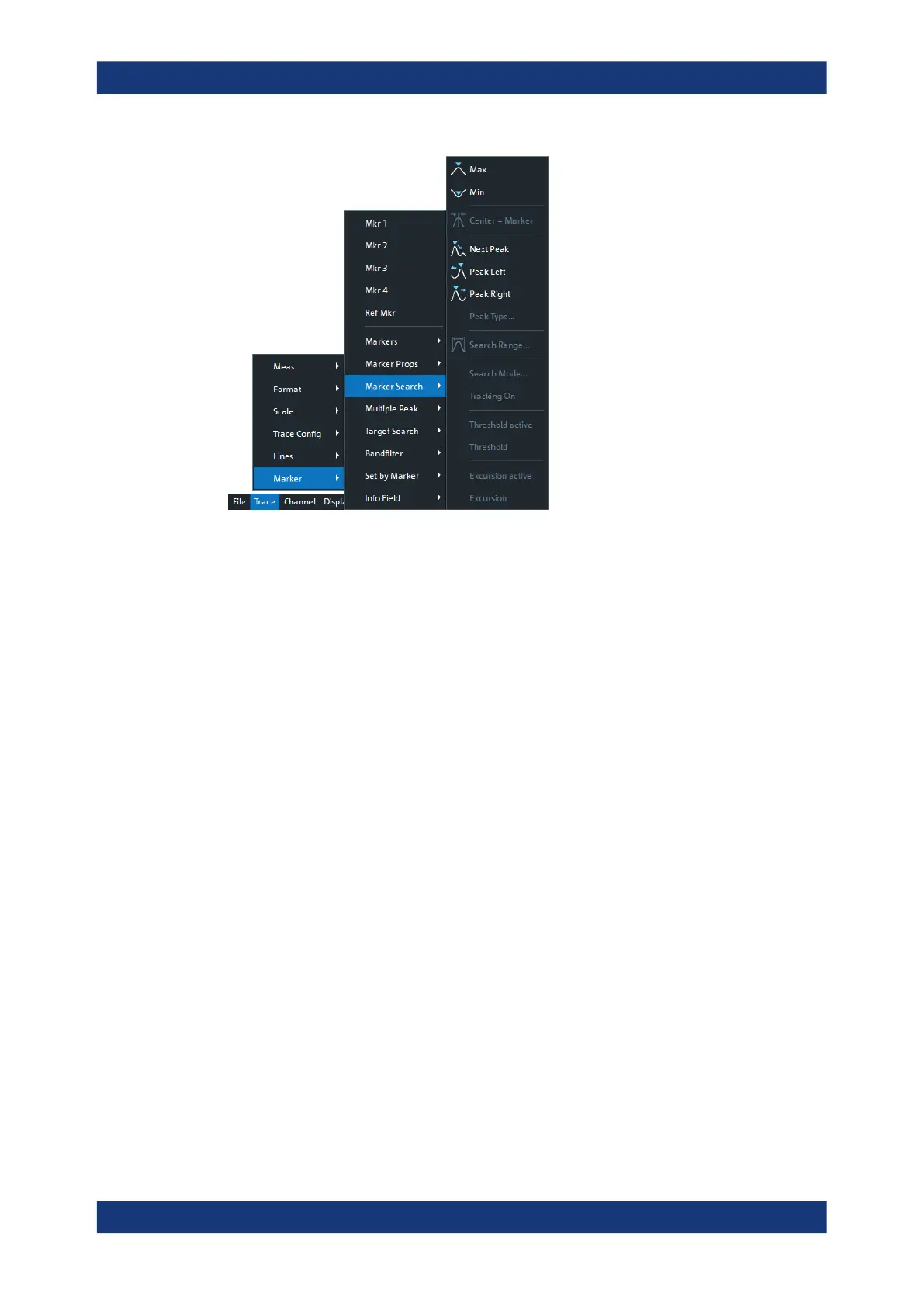

A menu command with a right arrow expands a submenu with further related set-
tings.
Example: "Marker" expands a submenu with marker-related properties.
●
A menu command with three dots appended calls up a dialog providing several
related settings.
Example: "Search Range" opens a dialog to define the search range for the
marker search.
●
A menu command with no arrow or dots initiates an immediate action.
Example: "Max" sets the active marker to the maximum of the active trace.
4.3.2.6 Hardkey Panel
The (virtual) "Hard Key" panel provides on-screen access to the function keys (plus the
[UNDO] and [REDO] key) that are available at the front panel of a R&S ZNB. Most of
the function keys open a related softtool. For a short description, refer to section Chap-
ter 4.2.1.2, "Function Keys", on page 34.
