6.15.4.3 Fault List Dock Widget
The "Fault List" dock widget allows you to explore and save all peaks that violate the
active Fault Limit.
Access: [Trace] > "Distance to Fault" > "Fault List..."

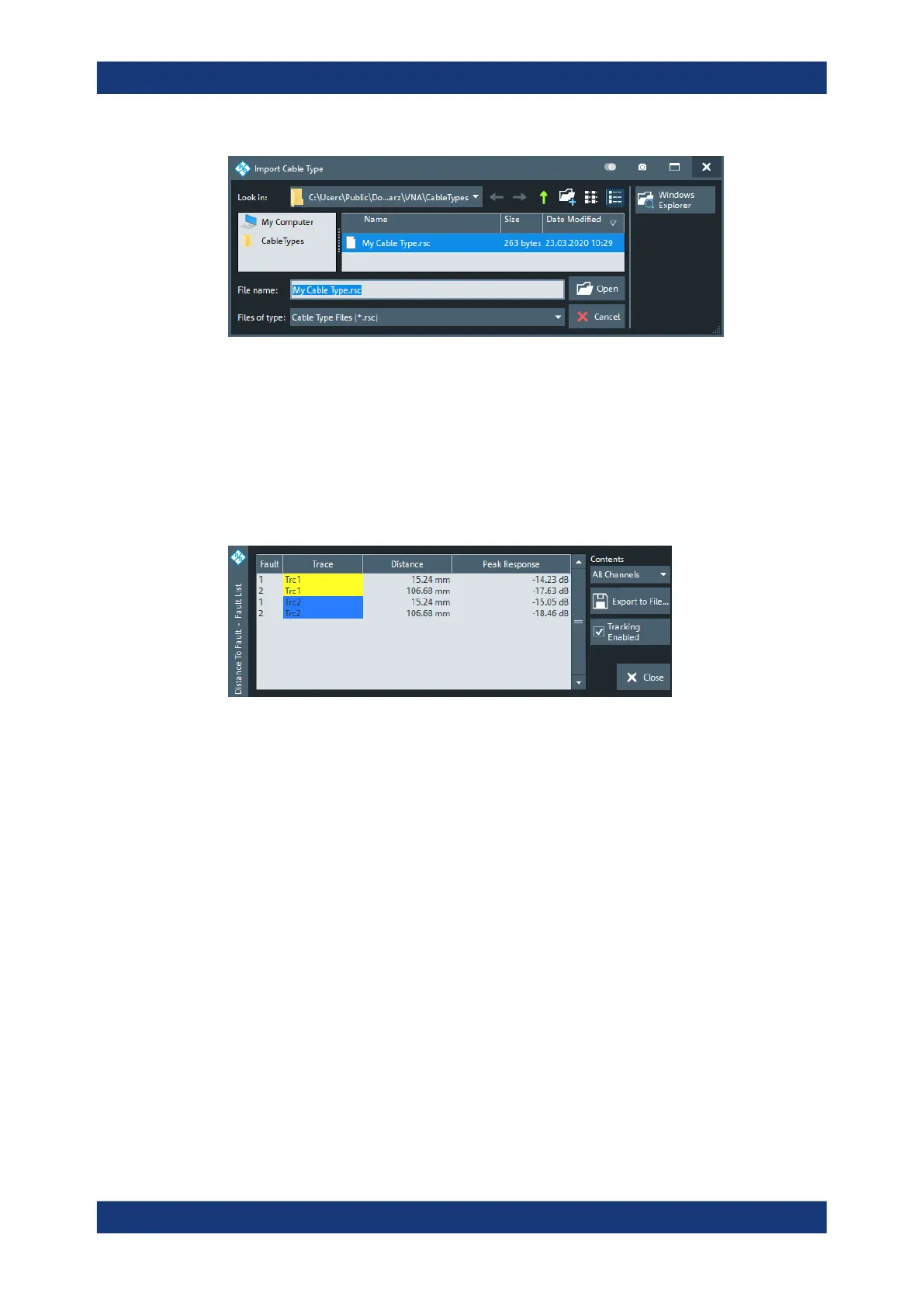

Figure 6-73: Fault List Dock Widget
Fault Table
The displays a list of all peaks that violate the active Fault Limit. Unless tracking is dis-
abled (see "Tracking Enabled" on page 682), the table is updated with every sweep.
Remote command:
CALCulate<Chn>:TRANsform:DTFault:PEAK:COUNt?
CALCulate<Chn>:TRANsform:DTFault:PEAK:DATA<FaultNo>
Contents
Allows you to filter the Fault Table:
●
"All Channels" (default)
The table displays the faults of all Distance to Fault traces in the current recall set.
●
"Active Channel"
The table displays the faults of all Distance to Fault traces in the active channel (if
any).
●
"Active Trace"
The table displays the faults of the active trace (in case it is a Distance to Fault
trace) .
Applic Softtool
