the balanced port was dissolved and only the uncalibrated (single-ended) port was
disabled.
In earlier FW versions there was no such port deactivation mechanism.
●
Since FW version 2.40 an uncalibrated port is only disabled if it is not used by a
measurement, i.e. if it is not required by any trace of the related channel.
Remote command:
The port parameters in many calibration commands define ports to be calibrated.
Type
Selects the calibration type to be performed. For background information, see Chap-
ter 5.5.7.2, "Calibration Types", on page 180.
SMARTerCal is based on a full n-port calibration (n > 1): "Adapter Removal" is a 2-port
calibration, all other calibration types can be used for any combination of 2 or more
ports.
Remote command:
[SENSe<Ch>:]CORRection:COLLect:METHod:DEFine
Power Meter
Shows a list of all power meters that have been properly configured and are available
for the scalar source power calibration of a single source port. The last configured
power meter is selected by default. See "Configured Devices" on page 720.
Remote command:
[SENSe:]CORRection:COLLect:PMETer:ID
Step 2: Connectors and Cal Kits
Selects the connector type and gender for all ports and allows you to import a calibra-
tion kit.

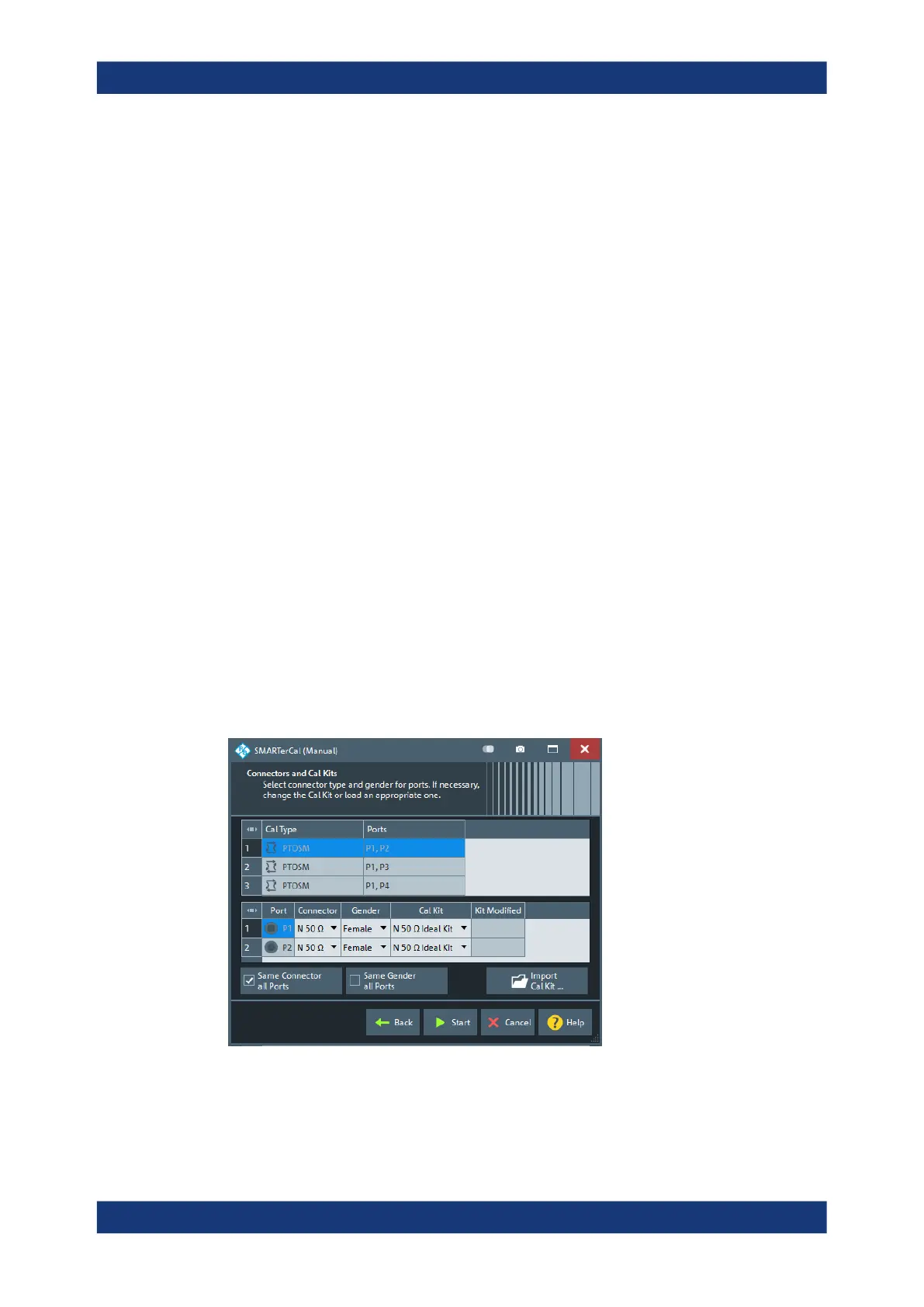

The upper part of the panel shows the previously configured SMARTerCal(s). Select
the appropriate one to get access to the related port settings. For the individual calibra-
tions, the functionality is the same as described for the single calibration version of the
wizard (see "Step 2: Connectors and Cal Kits" on page 466).
