a wave, b wave, Source

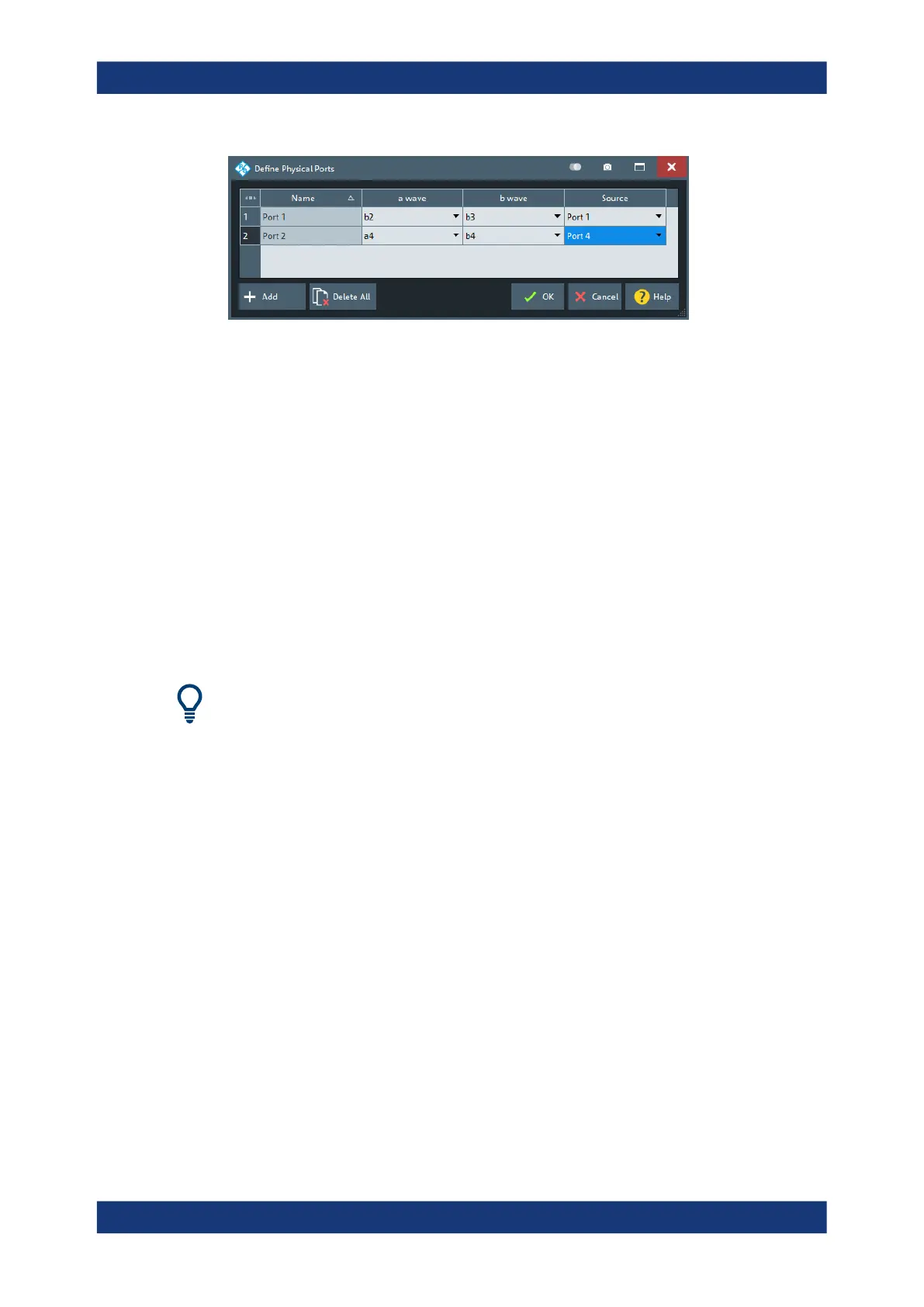

Define a physical port by assigning its reference receiver, measurement receiver and
generator, respectively.
The receivers and generators can be freely assigned, but without reusing the same
(original) physical port in different (redefined) ports.
Remote command:
[SENSe:]UDSParams<Pt>:PARam
[SENSe:]UDSParams:ACTive
6.17.5.3 External Matrices Dialog
The "External Matrices" dialog allows you to discover and register external switch
matrices.
Access: SYSTEM – [SETUP] > "External Ports" > "Switch Matrix..."
Background information
Refer to section Chapter 5.7.27, "External Switch Matrices", on page 245.
