General > Black White Scheme / Line Styles Scheme / Light Scheme
Modifies the user color scheme, in particular the trace and channel lines, in a prede-
fined way. As an alternative, select predefined color schemes; see "Color Scheme"
on page 688.
Remote command:
DISPlay:CMAP<DispEl>:RGB
Recall... / Save...
Opens standard dialogs to recall a previously saved color scheme or save the current
scheme to a file. Color scheme files are non-editable files with the extension
*.ColorScheme; the default directory is
C:\Users\Public\Documents\Rohde-Schwarz\Vna\ColorSchemes.
Remote command:
MMEMory:STORe:CMAP
MMEMory:LOAD:CMAP

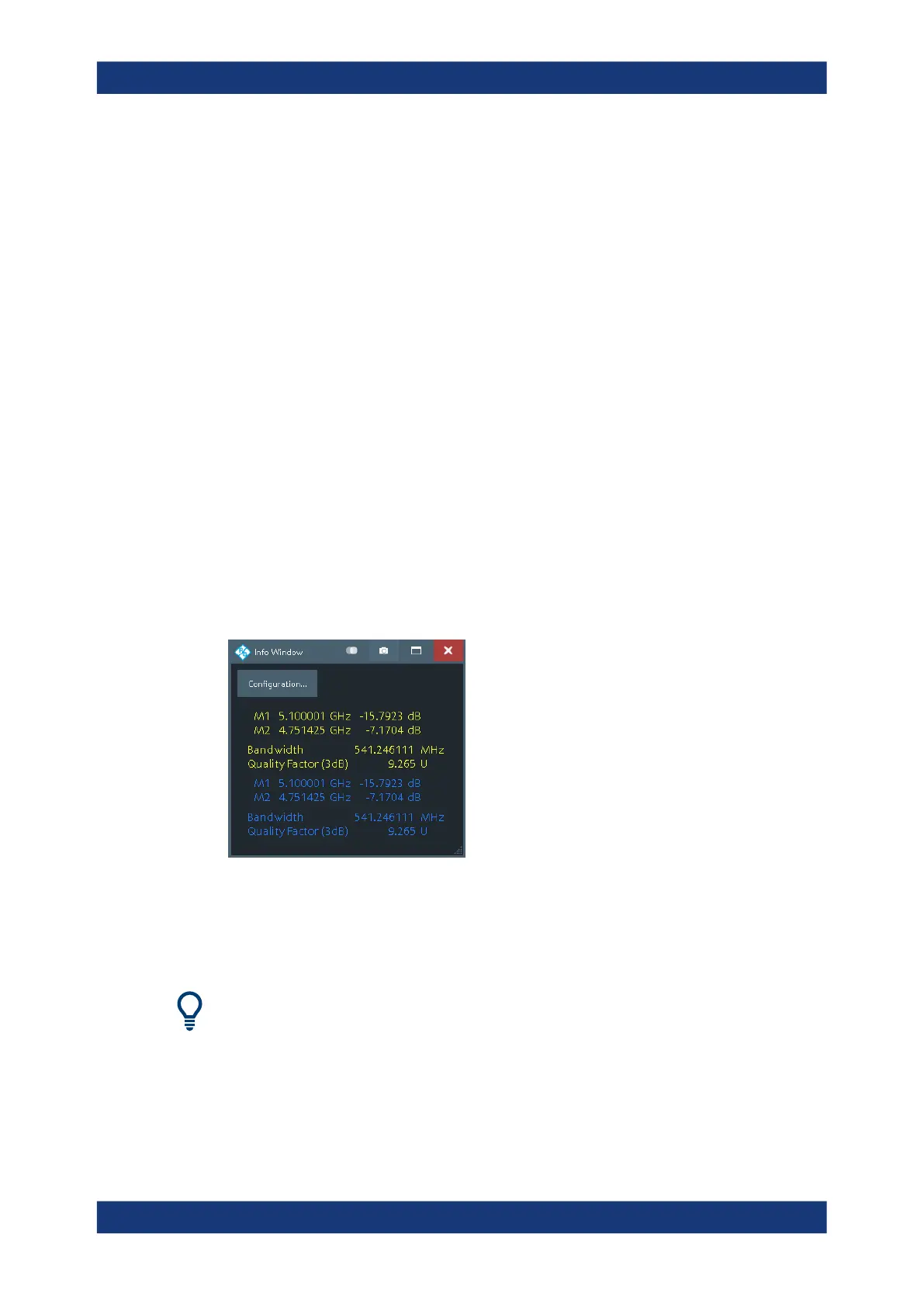

6.16.3.3 Info Window
The "Info Window" displays a configurable set of marker properties and Bandfilter
Search results. It automatically resizes the displayed text to fit the window height and
width.
Access: SYSTEM – [DISPLAY] > "Config" > "Info Window" checkbox
Use the "Configuration..." button to open the Info Window Configuration Dialog and
select the information items to be displayed.
To disambiguate the displayed marker info fields, you can assign descriptive names to
the markers (see "Marker Name" on page 363).
If a trace is hidden, then its marker and bandfilter search info is also hidden in the "Info
Window".
Info Window Configuration Dialog
The "Info Window Configuration" dialog allows you to select the markers and Display
Elements of a Diagram results to be displayed in the Info Window.
Display Softtool
