GUI Reference
R&S
®
ZNB/ZNBT
694User Manual 1173.9163.02 ─ 55

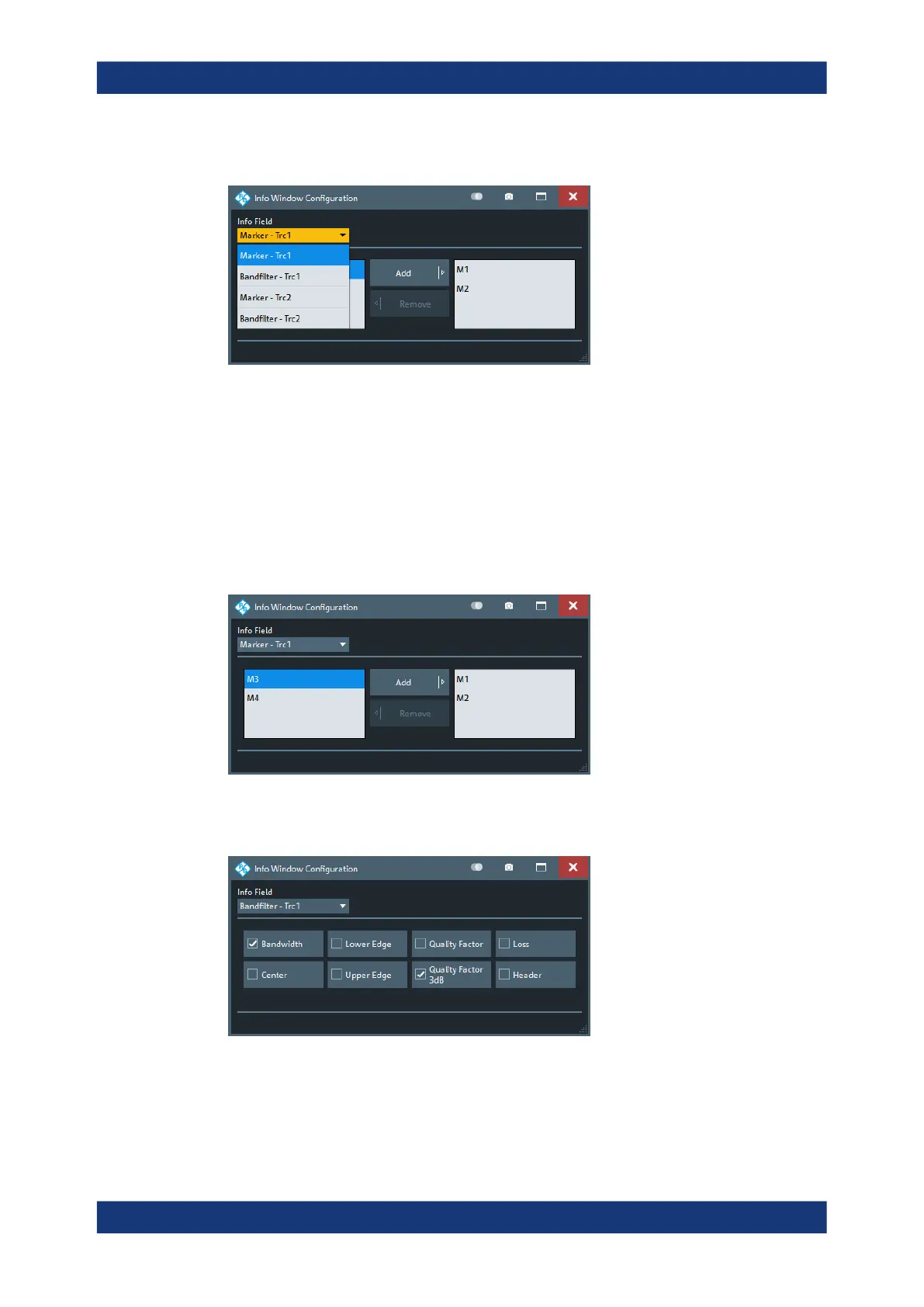

Access: Info Window > "Configuration..."
Use the "Info Field" combo box to select a marker or bandfilter search info field whose
contents you want to display in parts or in total. It contains all info fields of the current
recall set that are currently not displayed in the info table (see "Info Table: Show / Posi-
tion" on page 689).
Content Selection
The lower part of the "Info Window Configuration" dialog allows you to pick the con-
tents of the selected info field you want to display in the Info Window.
For marker info fields, use the "Add" and "Remove" buttons to show/hide the selected
marker in the "Info Window".
Figure 6-74: Content selection: marker info fields
For Bandfilter Search info fields simply pick the results to be displayed.
Figure 6-75: Content selection: bandfilter search info fields
Remote command:
DISPlay:IWINdow:MARKer<Mk>[:STATe]
DISPlay:IWINdow:BFILter[:STATe]
Display Softtool
