GUI Reference
R&S
®
ZNB/ZNBT
667User Manual 1173.9163.02 ─ 55

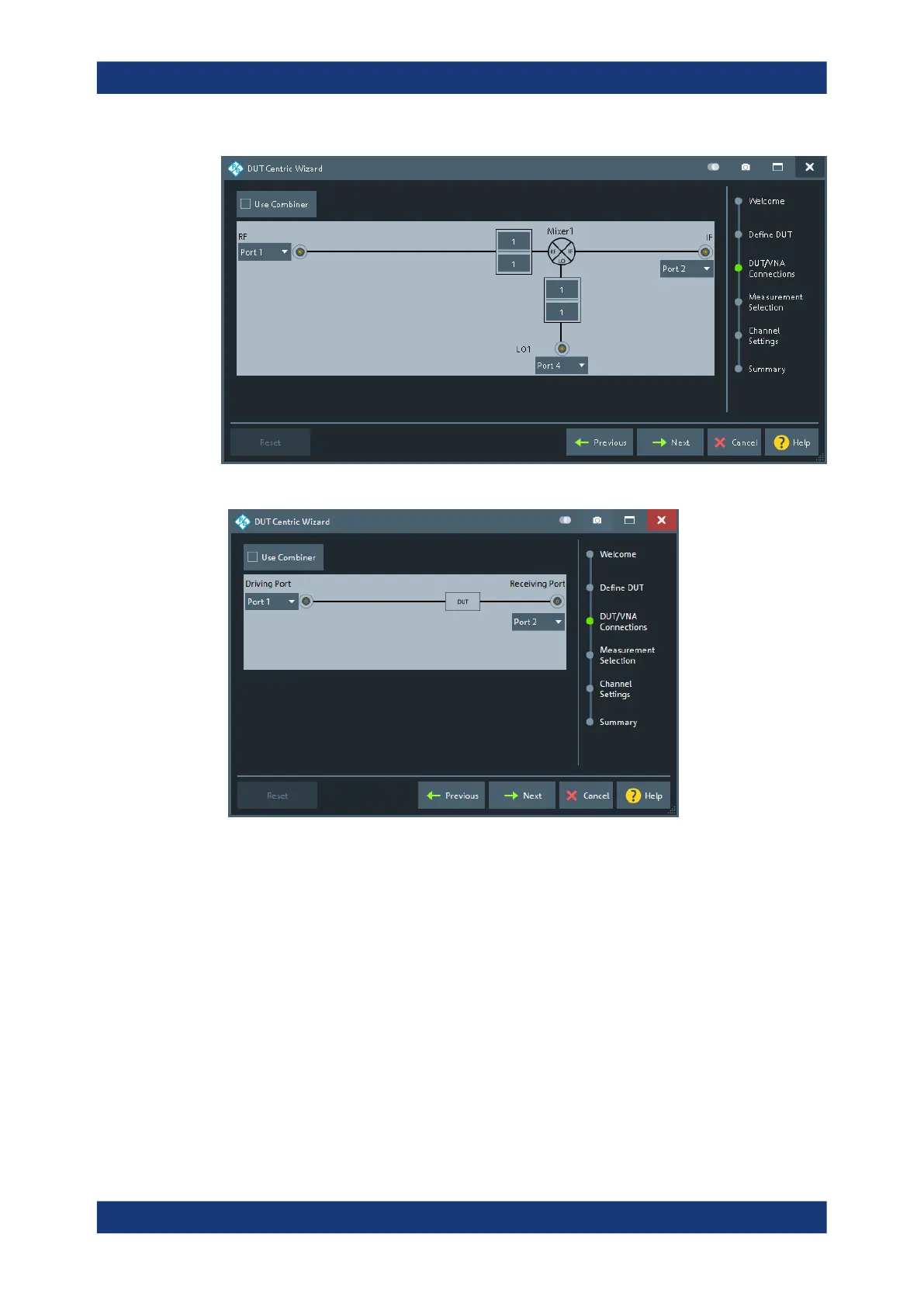

Figure 6-71: Mixer/VNA connections
Figure 6-72: Amplifier/VNA connections
Which connections are actually possible, depends on the number of ports (on the ana-
lyzer and connected switch matrices) and the number of independent sources (on the
VNA and connected external generators).
Measurement Selection
The "Measurement Selection" page of the "DUT Centric Wizard" allows you to select
the amplifier properties to be measured.
Applic Softtool
To Next Page
