Persistent vs. session settings
The settings in the "Setup" softtool and the configuration dialogs are global settings
and not affected by a "Preset" or shutdown of the analyzer.

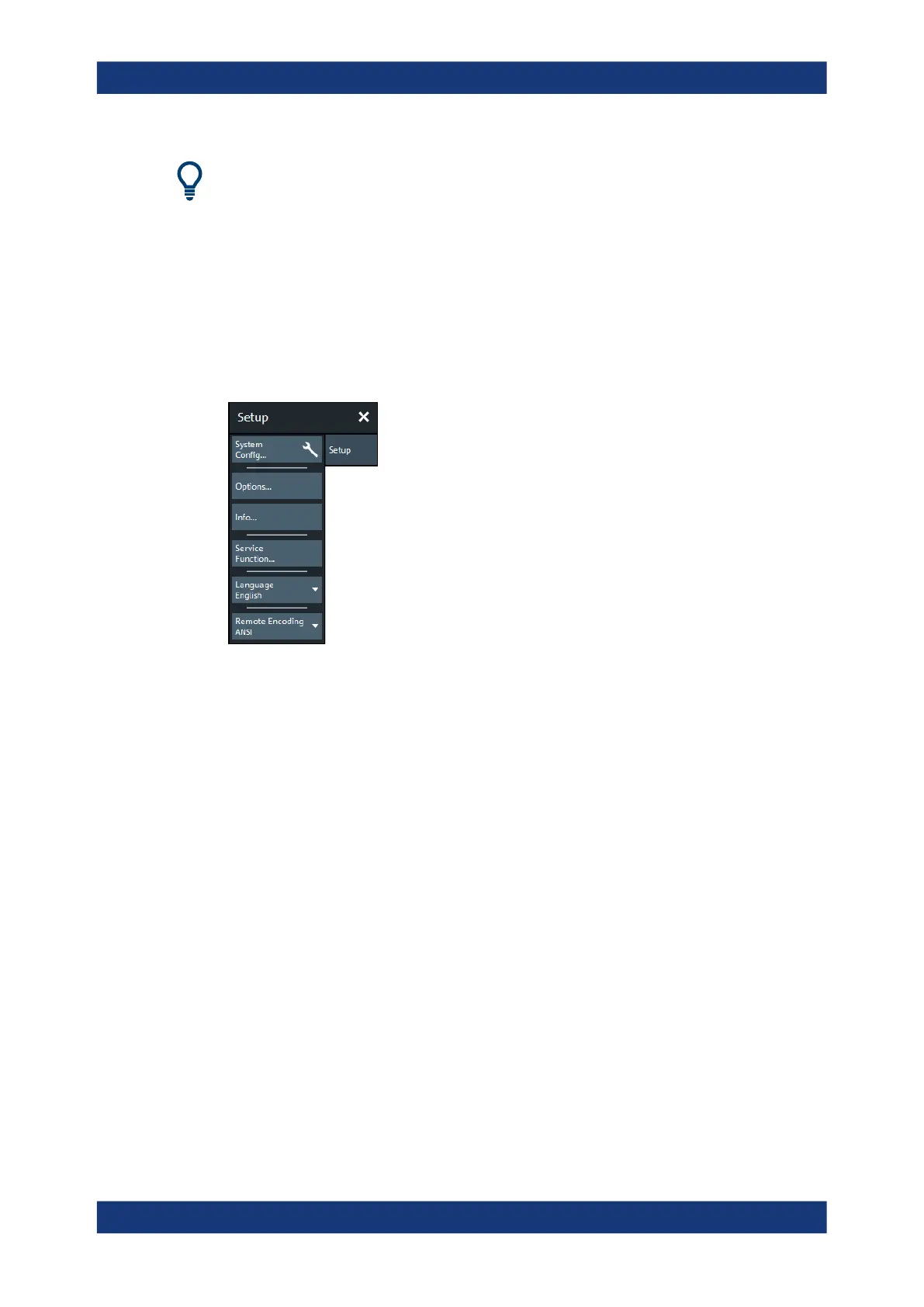

6.17.1 Setup Tab
Gives access to system-wide properties, settings, resources and service functions.
6.17.1.1 Controls on the Setup Tab
The following buttons in the "Setup" tab open related dialogs:
●
"System Config...": System Config Dialog
●
"Options...": "Info" dialog > Options Tab
●
"Info...": "Info" dialog > Setup Tab
●
"Execute Selftest...": "Info" dialog > Selftest Tab
(Runs the selftest first)
●
"Service Function...": Service Function Dialog
Language
Selects the language of the graphical user interface. A message box indicates that the
vector network analyzer application needs to be restarted to activate a different lan-
guage.
English is the preinstalled language. A setup file for additional languages ("Vector Net-
work Analyzer Translation Setup") is available for download from the Rohde & Schwarz
Internet site (see https://www.rohde-schwarz.com/firmware/znb/ or https://www.rohde-
schwarz.com/firmware/znbt/). For the R&S ZNB, make sure to select the correct setup
file (32 bit or 64 bit). To check for the firmware application type, open the "About Vna"
dialog (select "Help" > "About..." from the menu bar) and watch out for the "Application
Type" property.
Remote command:
n/a
Setup Softtool
