Load Simulation Data...
Imports previously stored trace data into the active diagram. The analyzer opens a dia-
log box to select the file from all trace files (*.s?p, *.csv, *.dat) stored on the
file system; see "Open Dialog" on page 104. The opened trace replaces the active
trace.
Exit
Persists the current state of all loaded recall sets and ends the analyzer session.
These states are automatically recalled when the analyzer application is restarted.
Tip: This button is equivalent to the Windows
®
"Close window" command and to the
close icon
in the title bar of the main firmware application window.
6.15 Applic Softtool
The "Applic" softtool gives access to applications and tools that extend the functionality
of the analyzer firmware.
Access: SYSTEM – [APPLIC]

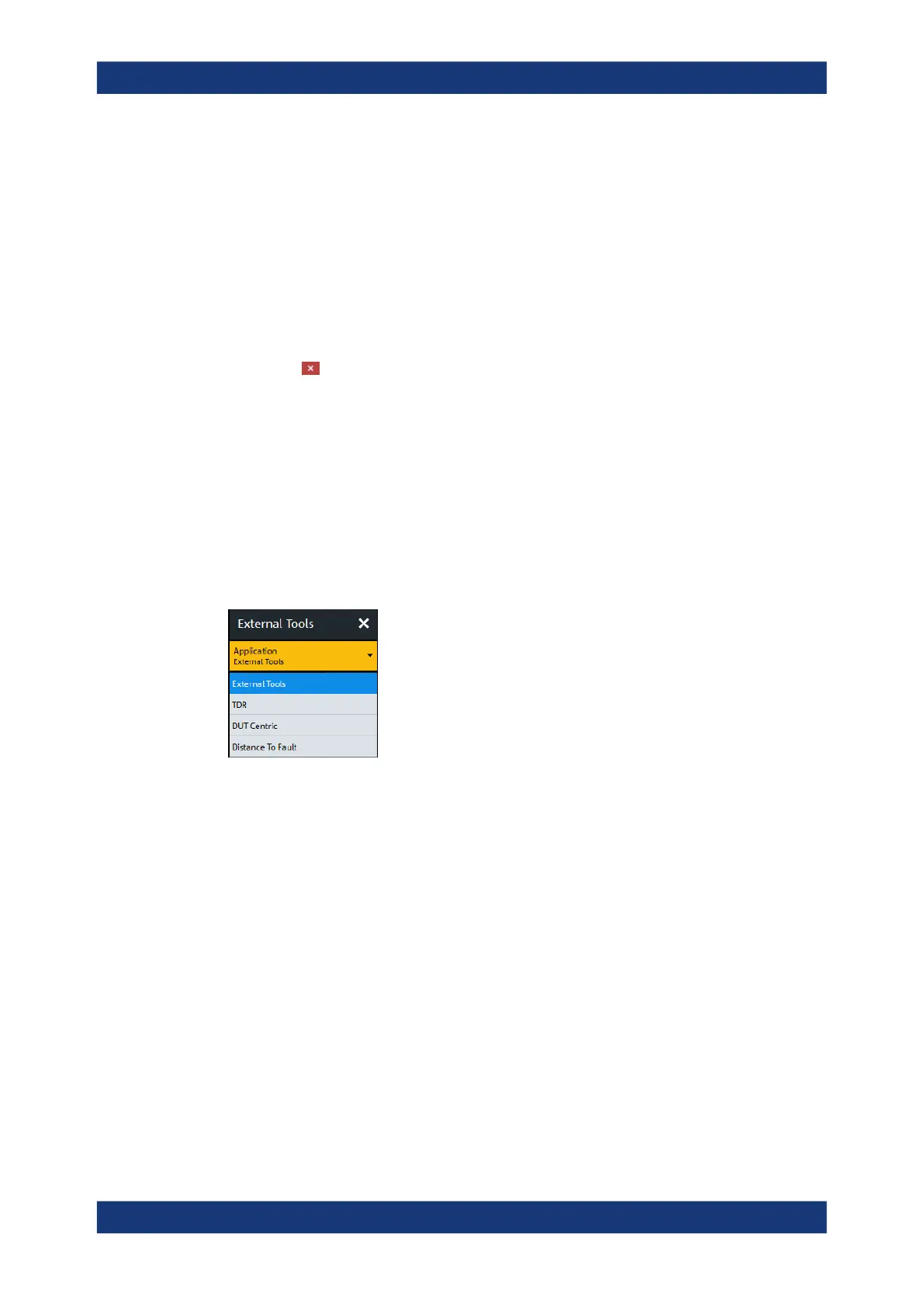

Use the combo-box at the top of the softtool to load one of the available applications
and to display the softtool tabs related to this application.
The "External Tools" and "DUT Centric" applications are always available, other appli-
cations are provided by certain software options.
6.15.1 External Tools Application
The "External Tools" application gives access to pre-installed and user-defined external
tools.
Access: SYSTEM – [APPLIC] > "External Tools"
Applic Softtool
