"Disable all
other Measure-
ments"
●
Disables all channels, except the active one
●
Disables all traces in the active channel, except the active one
●
Hides all diagrams except the active one
"Enable all
Measure-
ments"
Restores the previous channel/trace/diagram configuration
Same functionality as the
6.5.1.2 New Trace Dialog
The "Trc+" tool bar button allows you to create a trace in the active channel.
●
Tap/click the "Trc+" button to duplicate the active trace (equivalent to Add Trace).
●
Drag the respective button onto the diagram area to create the trace in any other
existing diagram or in a new one.

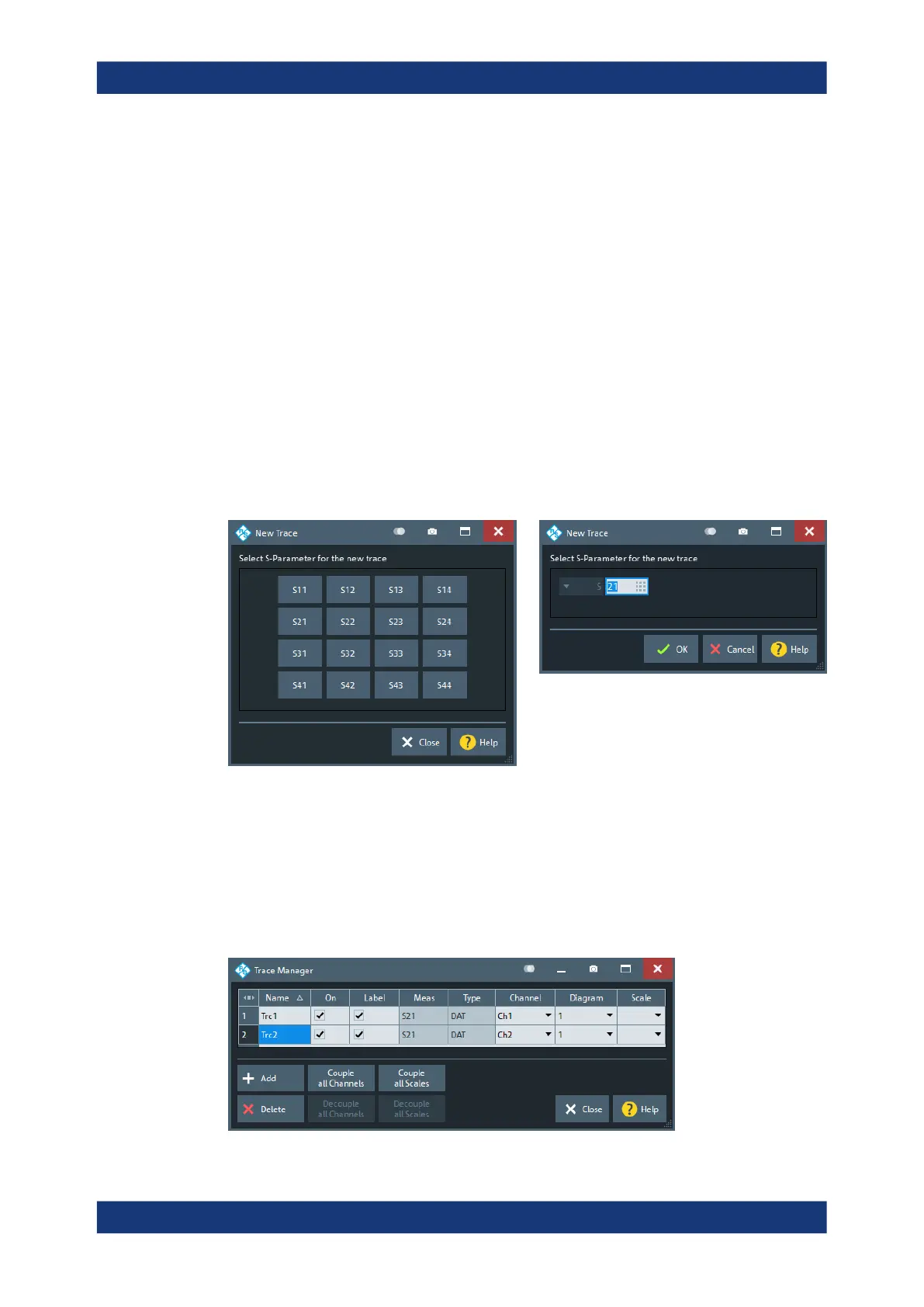

After the button has been dropped, the "New Trace" dialog pops up and lets you
select the quantity to be measured.
left
= buttons (up to 9 ports)
right = numeric input (10 or more ports)
6.5.1.3 Trace Manager Dialog
The "Trace Manager" dialog allows you to perform operations on traces.
Access: TRACE – [TRACE CONFIG] > "Traces" > "Trace Manager..."
Trace Config Softtool
To Next Page
