Concepts and Features
R&S
®
ZNB/ZNBT
249User Manual 1173.9163.02 ─ 55
ZNx
ZV-Z82-16
X

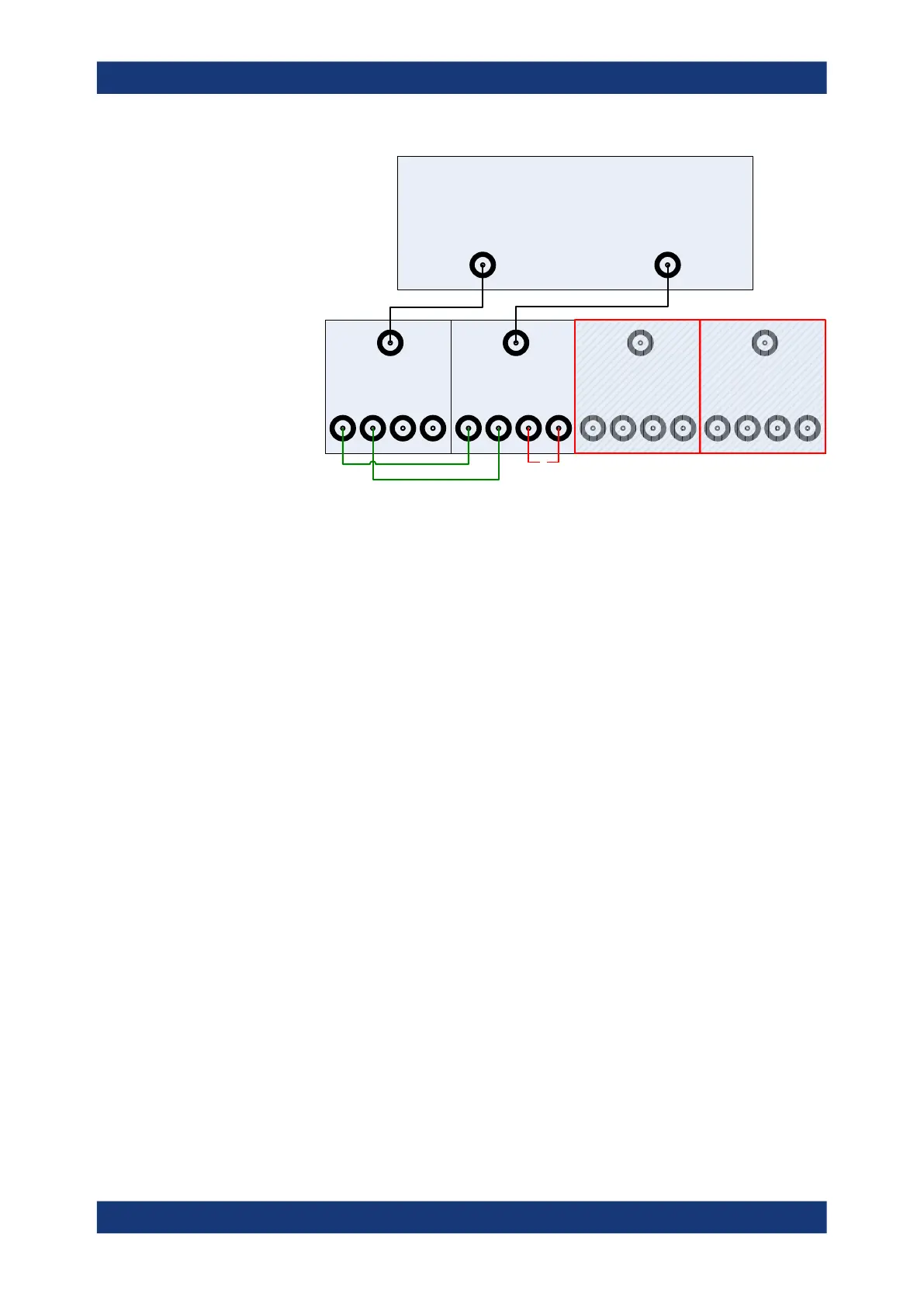

Figure 5-26: ZV-Z82-16: limited connectivity
5.7.27.4 Multiple Paths: Precision vs. Speed
A switch matrix may offer multiple routes to a given matrix test port and hence mea-
surements may be performed using different physical paths (where a path consists of
the traversed VNA connections and matrix routes).
These paths may have different characteristics - in particular if the corresponding
matrix routes differ in the number of semiconductor or mechanical switching functions
that have to be traversed.
Example:
For switch matrix ZV-Z82-09 every test port can be reached via two different routes,
traversing either one or two semiconductor switches:
Optional Extensions and Accessories
