GUI Reference
R&S
®
ZNB/ZNBT
505User Manual 1173.9163.02 ─ 55
Same Connector all Ports/Same Gender all Ports
See "Same Connector All Ports / Same Gender All Ports" on page 433.
Import Cal Kit...

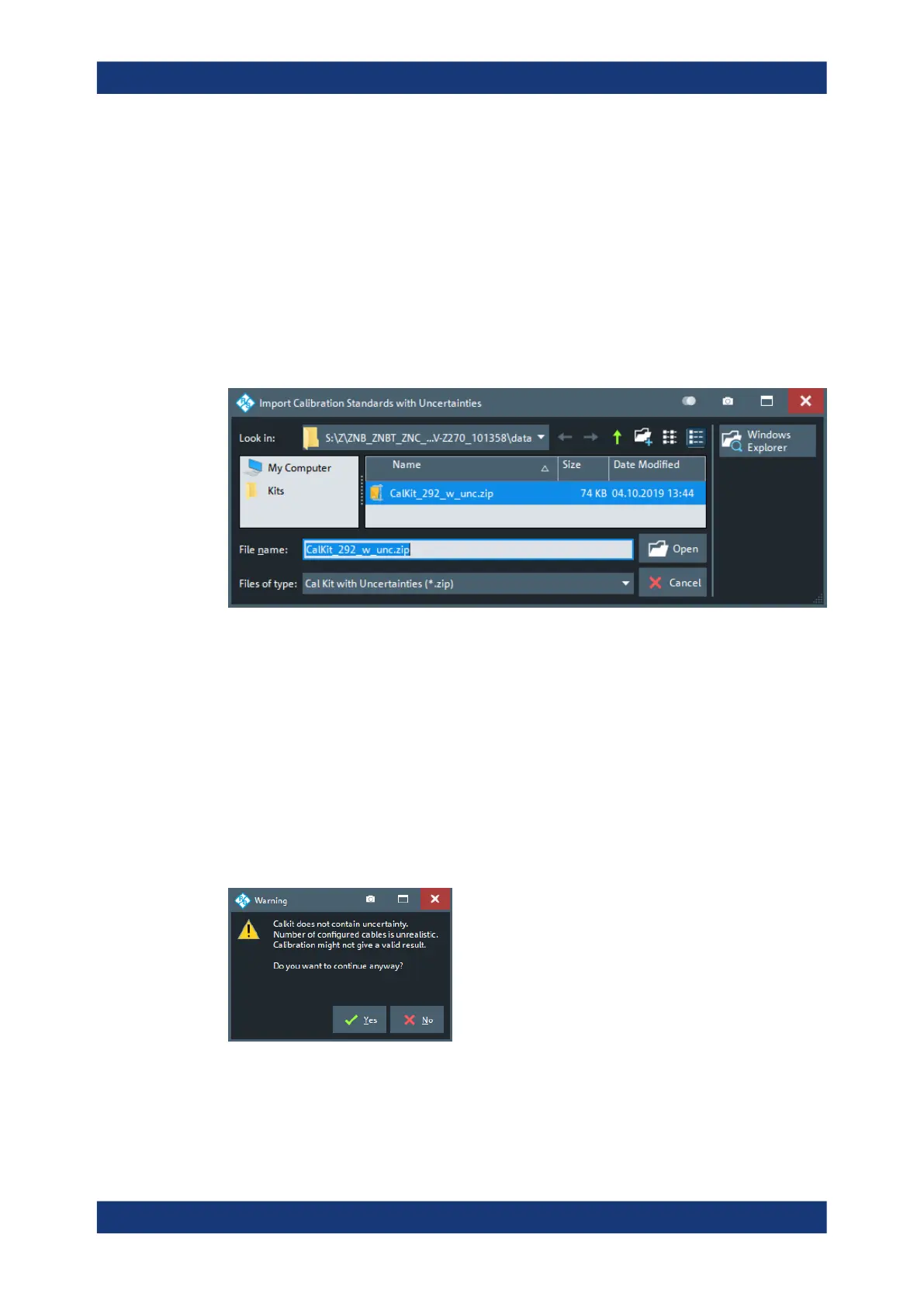

Opens the "Import Calibration Standards with Uncertainties" dialog, that allows you to
import cal kits with (or without) uncertainties.
A "CalKit with Uncertainties" is a zip file containing calibration standard characteriza-
tions in a format supported by METAS VNA Tools (sdatb, sdatx, sdatcv, calstd).
See the document "Data Formats" on the METAS VNA Tools internet page (https://
www.metas.ch/metas/en/home/fabe/hochfrequenz/vna-tools.html, section "VNA Tools"
> "Installer and Documentation").
The imported cal kit is assigned to the selected Connector type; the name of the ZIP
file is used as the cal kit name.
The name of a characterization file inside the zip container must indicate
●
the standard type (Open, Short, Match, Load, Line, Reflect, Through)
and, if applicable, its gender (f, m, ff, fm, mf, mm).
Imported cal kits with uncertainties are preserved and added to the Cal Kit selection
combo-box. There and in the Calibration Kits Dialog, they appear with an "Uncertainty"
flag.
Start
Proceeds to Step 3: Calibration. If the configuration is not plausible, a warning is dis-
played:
Step 3: Calibration
In step 3, the calibration is performed. The procedure is the same as for regular cali-
brations of the selected type (see "Step 3: Calibration" on page 434).
