"Add CW Mode"

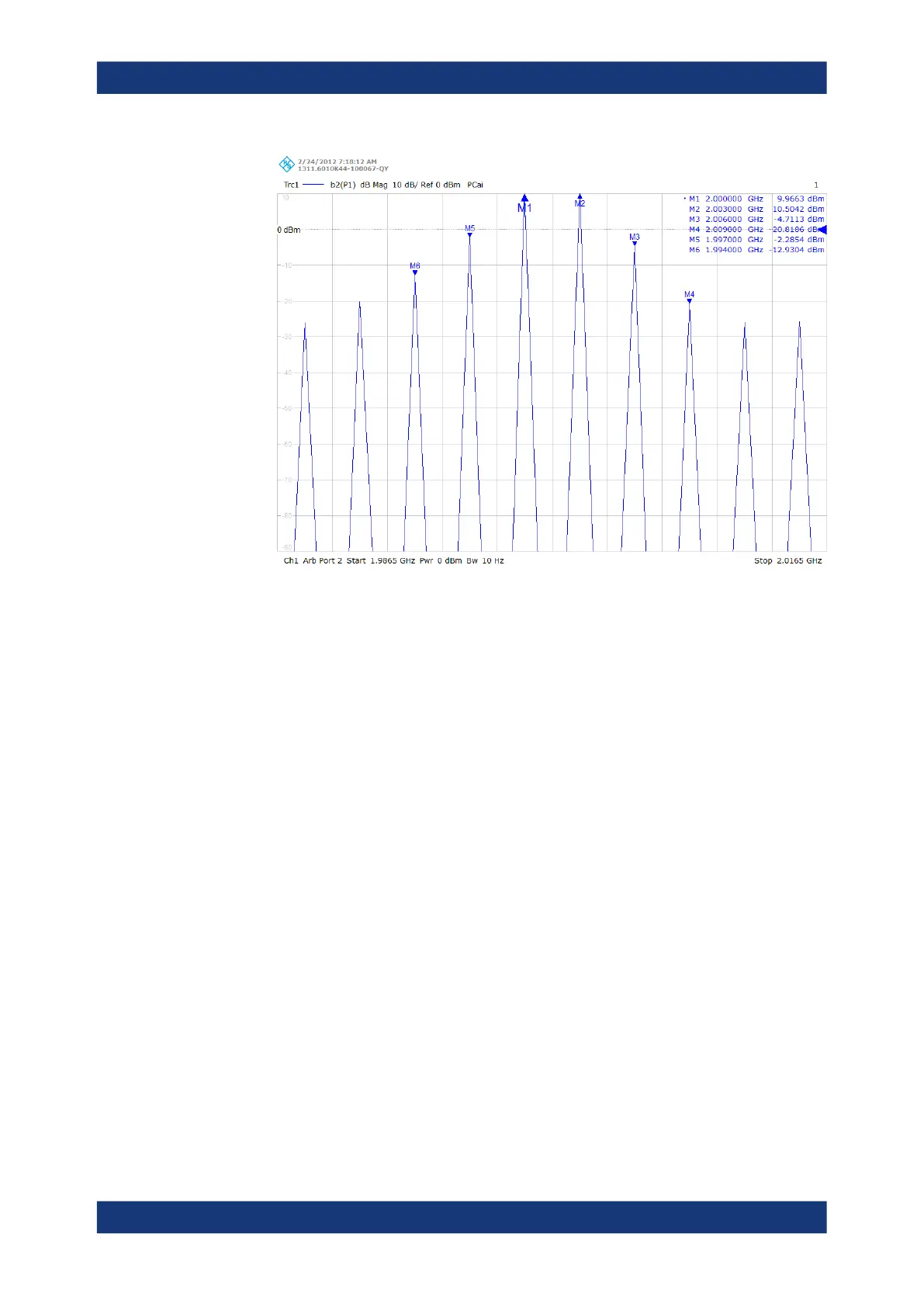

Activates a new channel for the spectrum measurement. The "CW Frequency" plus
half the "Tone Distance" defines the center of the diagram.
●
"Max IM Order"
Defines the width of the spectrum measurement.
Remote command:
[SENSe<Ch>:]FREQuency[:CW]
[SENSe<Ch>:]FREQuency:IMODulation:SPECtrum:MORDer
[SENSe<Ch>:]FREQuency:IMODulation:SPECtrum[:STATe]
6.12.4.2 Intermodulation Presetting Wizard
The "Intermodulation Presetting" wizard guides the user through the setup of an inter-
modulation measurement.
Access: CHANNEL – [CHANNEL CONFIG] > "Intermod" > "Intermod Wizard..."
The wizard proceeds in 4 steps:
1. Configure intermodulation measurement. Refer to Chapter 6.12.4, "Intermod. Tab",
on page 545.
Channel Config Softtool
