Use the special directory to make sure that you do not have to import kits manually,
even after terminating the VNA application improperly. In this case, previously imported
cal kit files are not stored in the recall set file.
Remote command:
MMEMory:LOAD:CKIT:UDIRectory

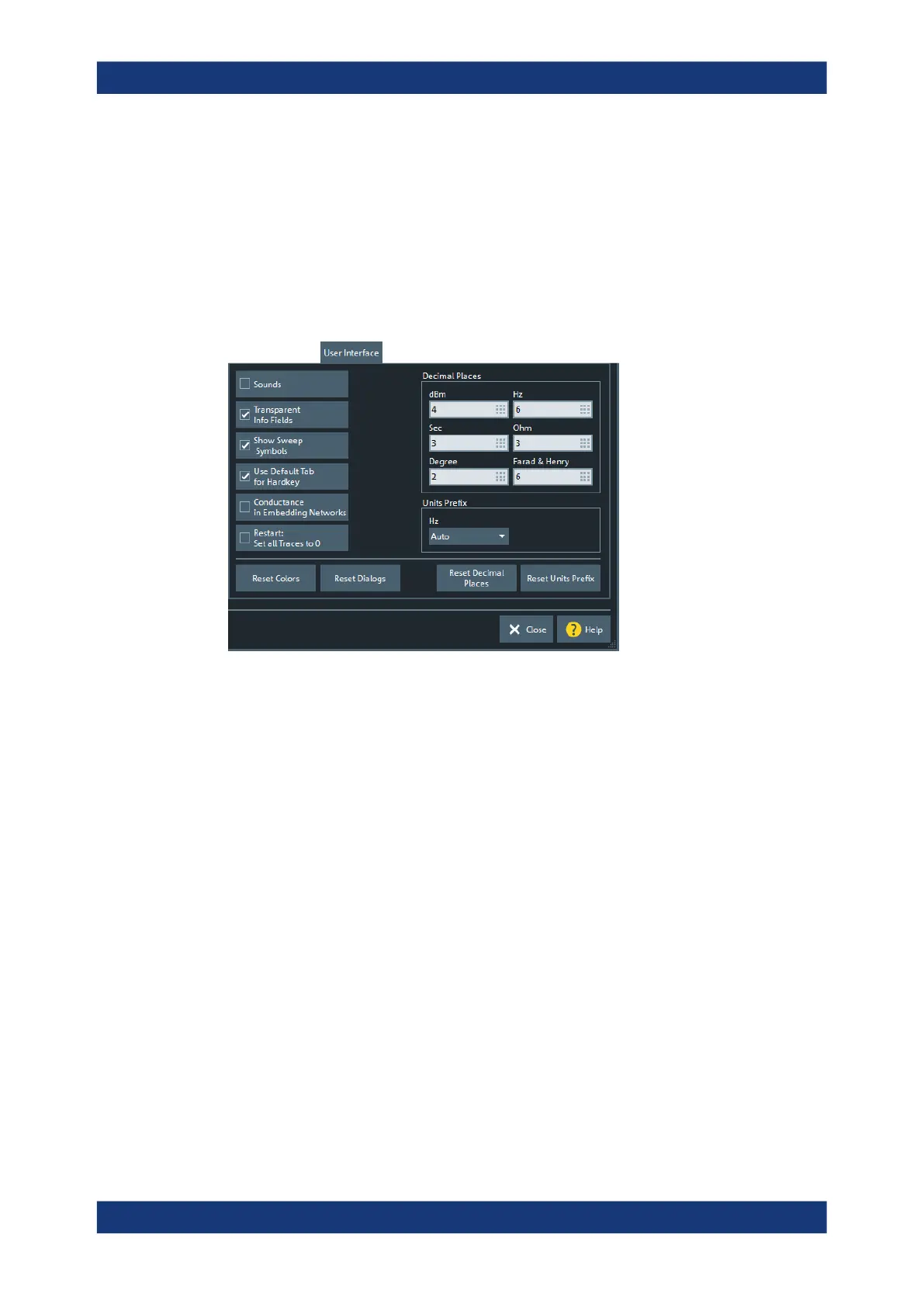

User Interface Tab
Provides general user interface configurations.
Sounds
Switches the sounds generated by the analyzer firmware on or off. Sounds are gener-
ated for certain GUI events, when the analyzer generates a notice, status or warning
message (alarm sounds) or during calibration.
The generation of limit fail beeps forlimit tests, ripple tests, and circle tests is not affec-
ted by this setting. If enabled, those beeps are generated even if "Sounds" is
unchecked.
Note: In contrast to the R&S ZNB, the R&S ZNBT does not have a built-in audio
device and loudspeaker. To hear these sounds, connect a USB audio device to the
R&S ZNBT or operate it via remote desktop.
Remote command:
SYSTem:SOUNd:ALARm[:STATe]
SYSTem:SOUNd:STATus[:STATe]
/ Transparent Info Fields / Show Sweep Symbols
The buttons switch the instrument messages, acoustic messages, transparent info
fields for markers and trace statistics, and sweep symbols on or off.
●
Transparent info fields do not hide an underlying trace.
●
The sweep symbols are arrows pointing downward onto the trace. They are dis-
played if the sweep time exceeds an upper limit (e.g. if the number of points is high
or the measurement bandwidth is low).
Setup Softtool
To Next Page
