Skew Position
Defines the percentage of the step size that defines the position of the reference points
on the current and the reference trace. The "Skew" value is the delta between the X
coordinates of these reference points.
Remote command:
CALCulate<Chn>:DTIMe:POSition
Extended Info
Defines whether the info field for the skew measurement shall only provide basic infor-
mation (default) or extended information:

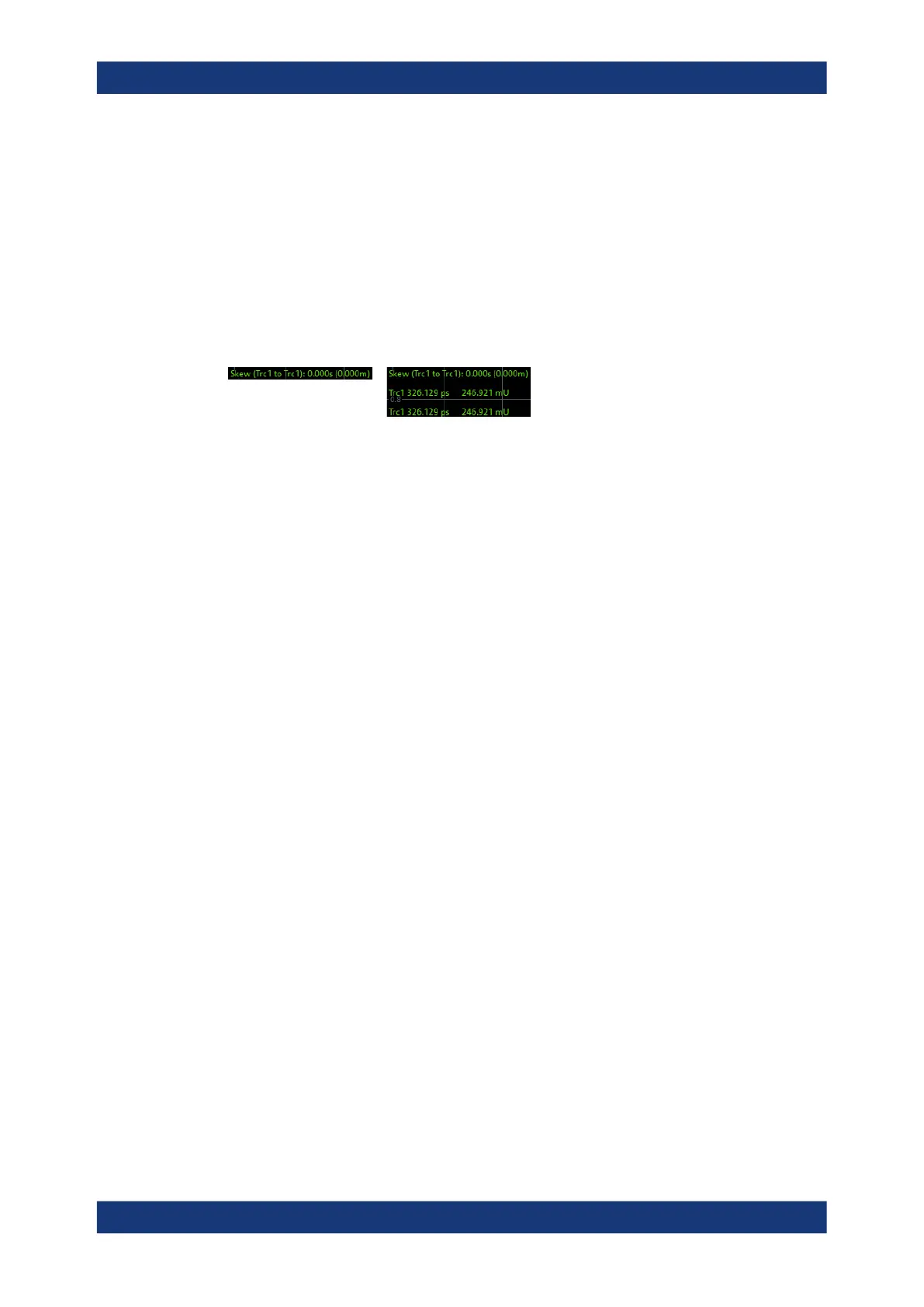

Figure 6-68: Skew info, basic vs. extended
The displayed skew values are positive, if, at the defined Skew Position, the active
trace is to the right of the Reference Trace.
Remote command:
CALCulate<Chn>:DTIMe:DATA?
Skew Check On
Enables the skew check with the specified Skew Limit.
Remote command:
CALCulate<Chn>:DTIMe:LIMit:STATe
Skew Limit
Defines the limit value for the skew check. The unit depends on the current format of
the X axis (see "Time / Distance" on page 387).
Remote command:
CALCulate<Chn>:DTIMe:LIMit:LIMit
Skew Fail Beep
This checkbox determines whether the R&S ZNB/ZNBT should make an audible beep
on skew limit violations.
Note: In contrast to the R&S ZNB, the R&S ZNBT does not have a built-in audio
device and loudspeaker. To hear these sounds, connect a USB audio device to the
R&S ZNBT or operate it via remote desktop.
Remote command:
CALCulate<Chn>:DTIMe:LIMit:FAIL:BEEP
Global Check, TTL1 Pass, TTL2 Pass
see Chapter 6.6.1, "Limit Test Tab", on page 341
6.15.2.11 Time Gate Tab
Replicates the "Time Gate" tab of the "Trace Config" softtool (see Chapter 6.5.6, "Time
Gate Tab", on page 321).
