GUI Reference
R&S
®
ZNB/ZNBT
355User Manual 1173.9163.02 ─ 55
The limit line colors are defined in the "Define User Color Scheme" dialog (see Chap-
ter 6.16.3.2, "Define User Color Scheme Dialog", on page 690). You can choose
between various options:
●
Assign the same color to traces and associated limit lines.
●
Assign different colors to limit line segments with disabled limit check.
Note: Display of the limit line and limit check are independent of each other: Hiding the
limit line does not switch off the limit check.
Remote command:
CALCulate<Chn>:LIMit:CIRCle:DISPlay[:STATe]

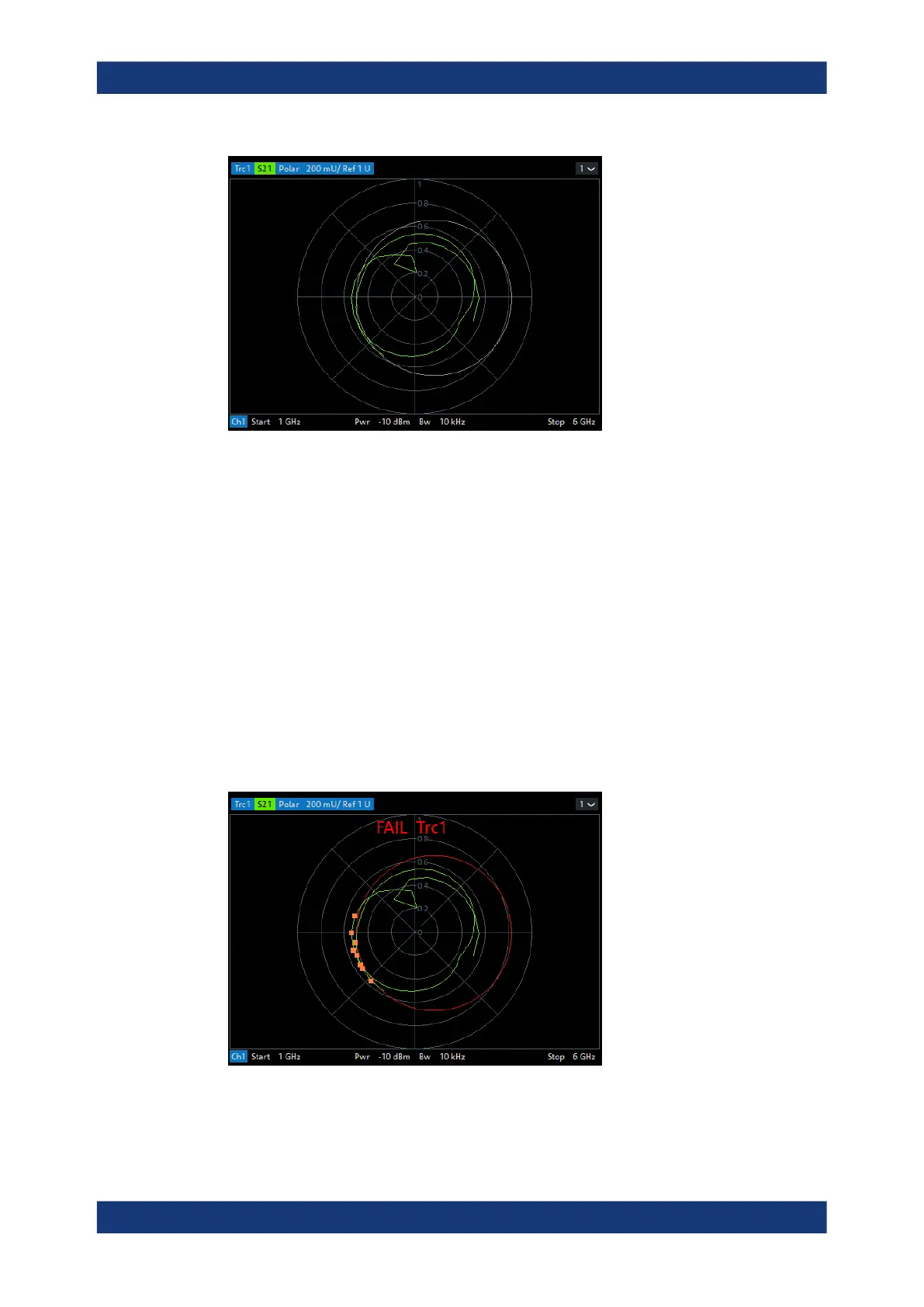

Limit Check
Switches the limit check of the active trace on or off.
When the limit check is switched on, a movable "PASS" or "FAIL" message is dis-
played in the diagram. If the limit check fails at a measurement point, the point is
marked with a colored square. An acoustic signal (Limit Fail Beep) and a TTL signal
indicating pass or fail can be generated in addition.
Lines Softtool
