test ports. It is recommended that you preset the R&S ZNB/ZNBT to start from a well-
defined instrument state.
DUT
1 2
VNA
1 2
2
3 4
5 6 7 8
9
10 11 12
13 14 15 16
1
18 19 20
21 22 23 24
17
DUT
1 2
VNA

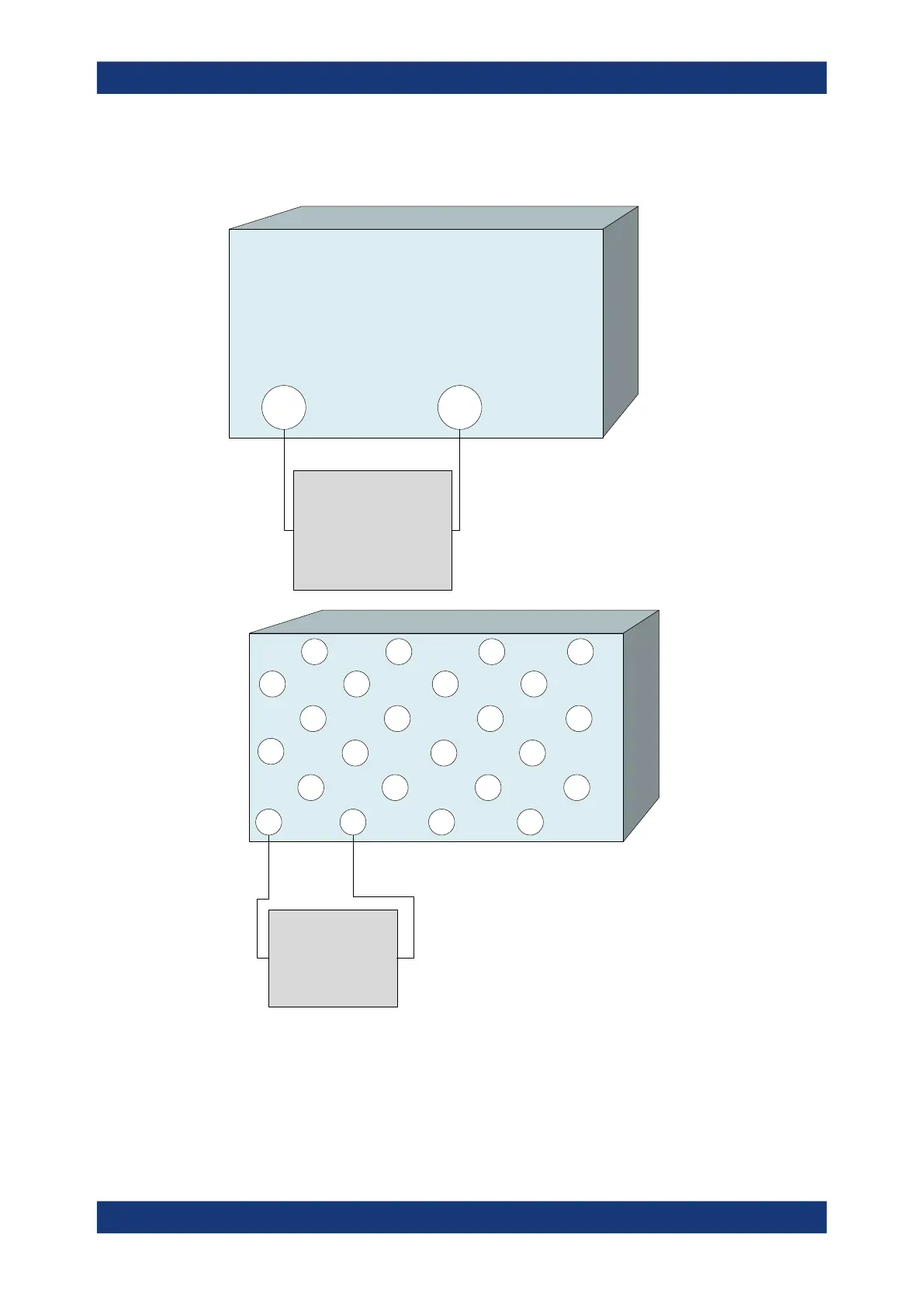

1. Connect the DUT between test ports 1 and 2 of the network analyzer as shown
above.
2. Switch on the instrument and start the VNA application.
Proceed as described in Chapter 4.1.7, "Starting the Analyzer and Shutting Down",
on page 22.
Performing Measurements
