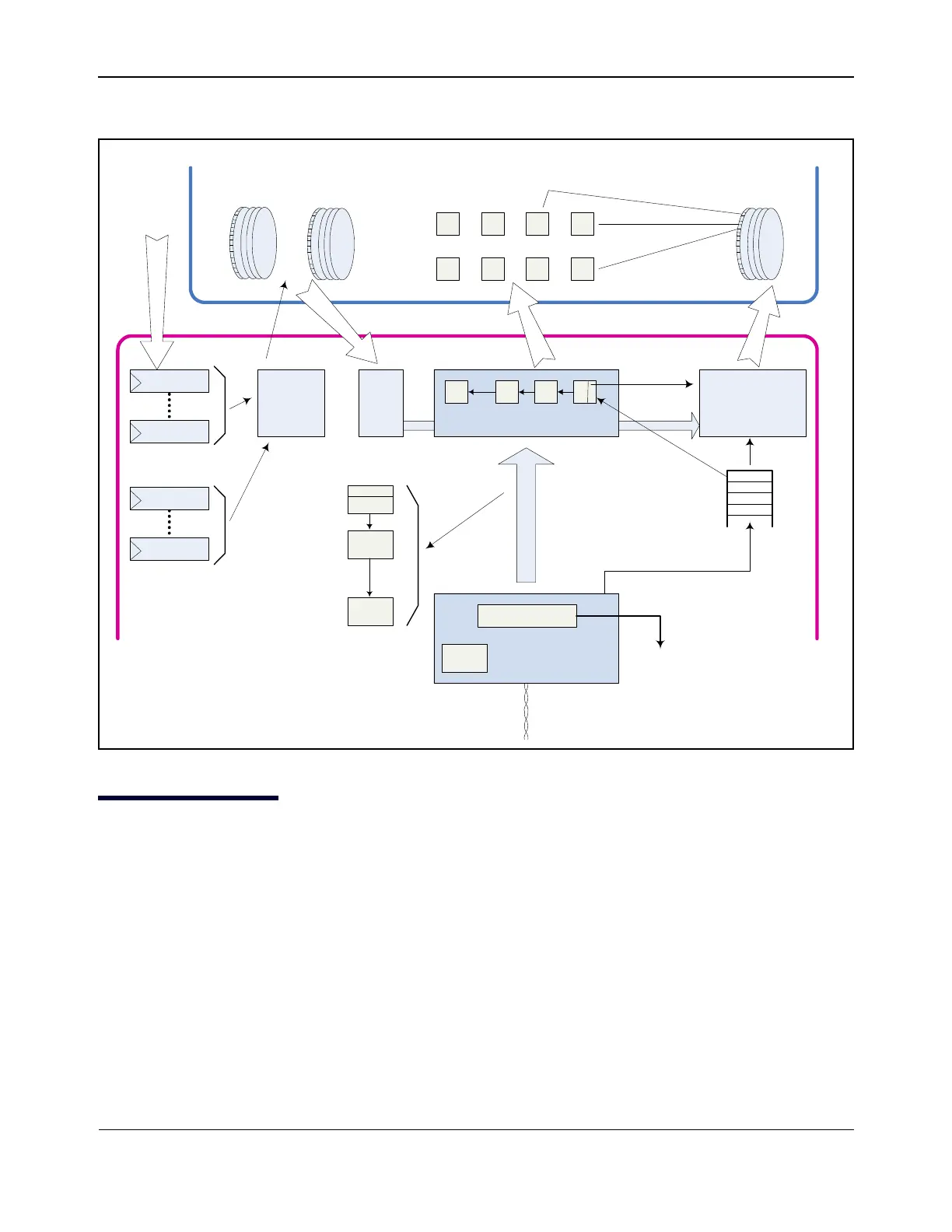

Figure 53: IOV Receive Flow
IOV – Transmit Side
Transmit enhancement for IOV involves adding multiple Host Send Rings or effectively adding multiple transmit
queues. At present, Feb 2009, only Netqueue is capable of utilizing multiple TX queues whilst VMQ is not.
Although, the Transmit Side Scaling (TSS) feature of NDIS 6.x is capable of using multiple transmit queues. This
is the reason this feature, namely 16 Send Rings, could be enabled in BCM5718/19/20 irrespective of the IOV-
Mode settings.
BCM5718/19/20 shall implement a limited set of capabilities in this regard:
• A maximum of 16 Send Rings (SBD Rings)
• Multiple Send Rings could be enumerated only in conjunction to either IOV-Mode or RSS Mode
• All 16 Send Rings may be enabled in conjunction of IOV Mode
• Up to 4 Send Rings may be enabled in conjunction of RSS Mode
