â—† The destination port cannot be a trunk or trunk member port.
â—† Note that Spanning Tree BPDU packets are not mirrored to the target
port.
PARAMETERS
These parameters are displayed:
◆ Source Port – The port whose traffic will be monitored.
◆ Target Port – The port that will mirror the traffic on the source port.
◆ Type – Allows you to select which traffic to mirror to the target port, Rx
(receive), Tx (transmit), or Both. (Default: Both)
WEB INTERFACE
To configure a local mirror session:
1. Click Interface, Port, Mirror.
2. Select Add from the Action List.
3. Specify the source port.
4. Specify the monitor port.
5. Specify the traffic type to be mirrored.
6. Click Apply.

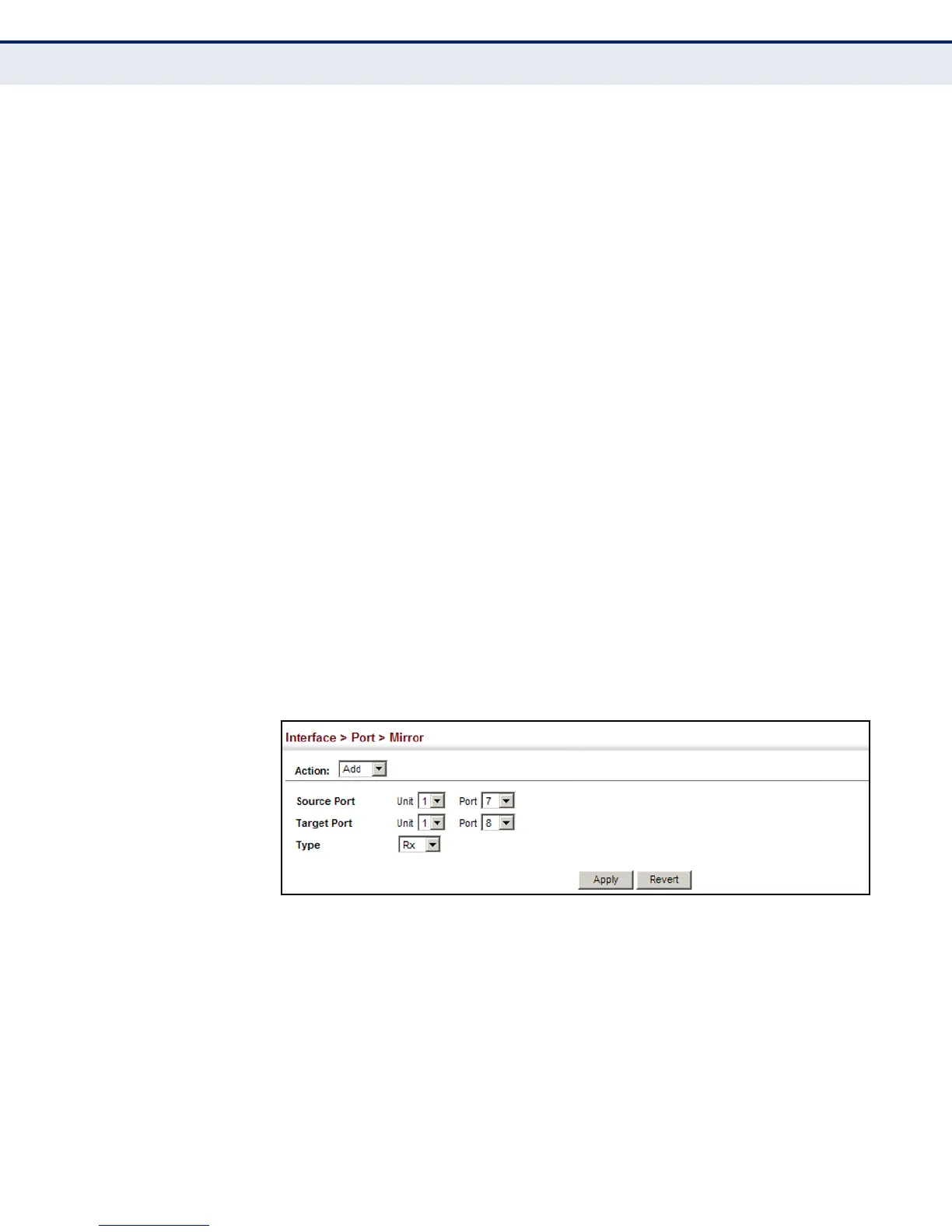

Figure 33: Configuring Local Port Mirroring
To display the configured mirror sessions:
1. Click Interface, Port, Mirror.
2. Select Show from the Action List.
To Next Page
