C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 540 –

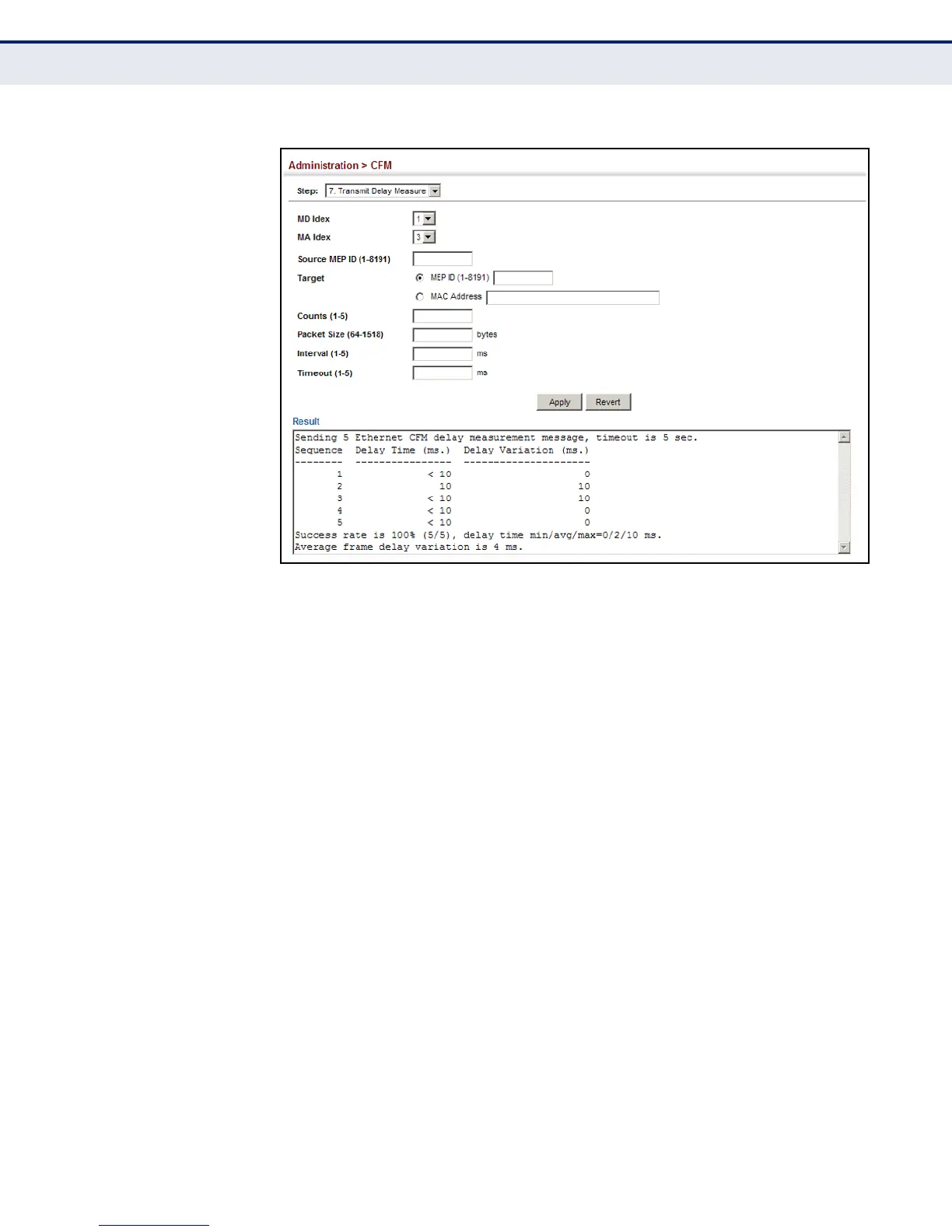

Figure 310: Transmitting Delay-Measure Messages
DISPLAYING
LOCAL MEPS
Use the Administration > CFM > Show Information (Show Local MEP) page
to show information for the MEPs configured on this device.
CLI REFERENCES
â—† "show ethernet cfm maintenance-points local" on page 1334
PARAMETERS
These parameters are displayed:
◆ MEP ID – Maintenance end point identifier.
◆ MD Name – Maintenance domain name.
◆ Level – Authorized maintenance level for this domain.
◆ Direction – Direction in which the MEP communicates CFM messages:
â–
Down indicates that the MEP is facing away from the switch, and
transmits CFM messages towards, and receives them from, the
direction of the physical medium.
â–
Up indicates that the MEP faces inward toward the switch cross-
connect matrix, and transmits CFM messages towards, and receives
them from, the direction of the internal bridge relay mechanism.
◆ Primary VLAN – Service VLAN ID.
◆ Interface – Physical interface of this entry (either a port or trunk).
◆ CC Status – Shows administrative status of CCMs.
