C
HAPTER
13
| Security Measures
Configuring 802.1X Port Authentication
– 393 –

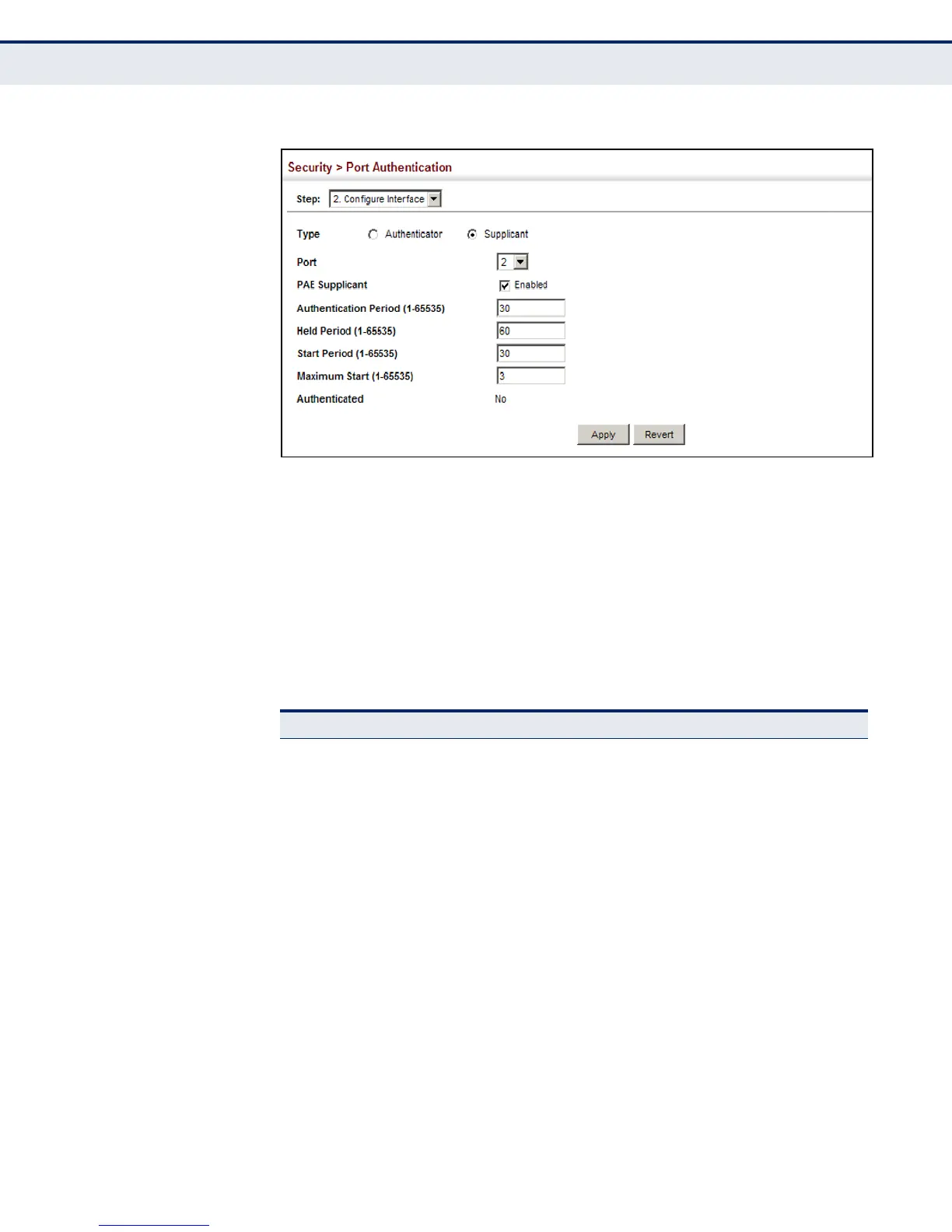

Figure 216: Configuring Interface Settings for 802.1X Port Supplicant
DISPLAYING 802.1X
STATISTICS
Use the Security > Port Authentication (Show Statistics) page to display
statistics for dot1x protocol exchanges for any port.
CLI REFERENCES
â—† "show dot1x" on page 860
PARAMETERS
These parameters are displayed:
Table 23: 802.1X Statistics
Parameter Description
Authenticator
Rx EAPOL Start The number of EAPOL Start frames that have been received
by this Authenticator.
Rx EAPOL Logoff The number of EAPOL Logoff frames that have been received
by this Authenticator.
Rx EAPOL Invalid The number of EAPOL frames that have been received by this
Authenticator in which the frame type is not recognized.
Rx EAPOL Total The number of valid EAPOL frames of any type that have been
received by this Authenticator.
Rx Last EAPOLVer The protocol version number carried in the most recent EAPOL
frame received by this Authenticator.
Rx Last EAPOLSrc The source MAC address carried in the most recent EAPOL
frame received by this Authenticator.
Rx EAP Resp/Id The number of EAP Resp/Id frames that have been received
by this Authenticator.
Rx EAP Resp/Oth The number of valid EAP Response frames (other than Resp/
Id frames) that have been received by this Authenticator.
Rx EAP LenError The number of EAPOL frames that have been received by this
Authenticator in which the Packet Body Length field is invalid.
