C
HAPTER
13
| Security Measures
Access Control Lists
– 356 –
To show a list of ACLs:
1. Click Security, ACL.
2. Select Configure ACL from the Step list.
3. Select Show from the Action list.

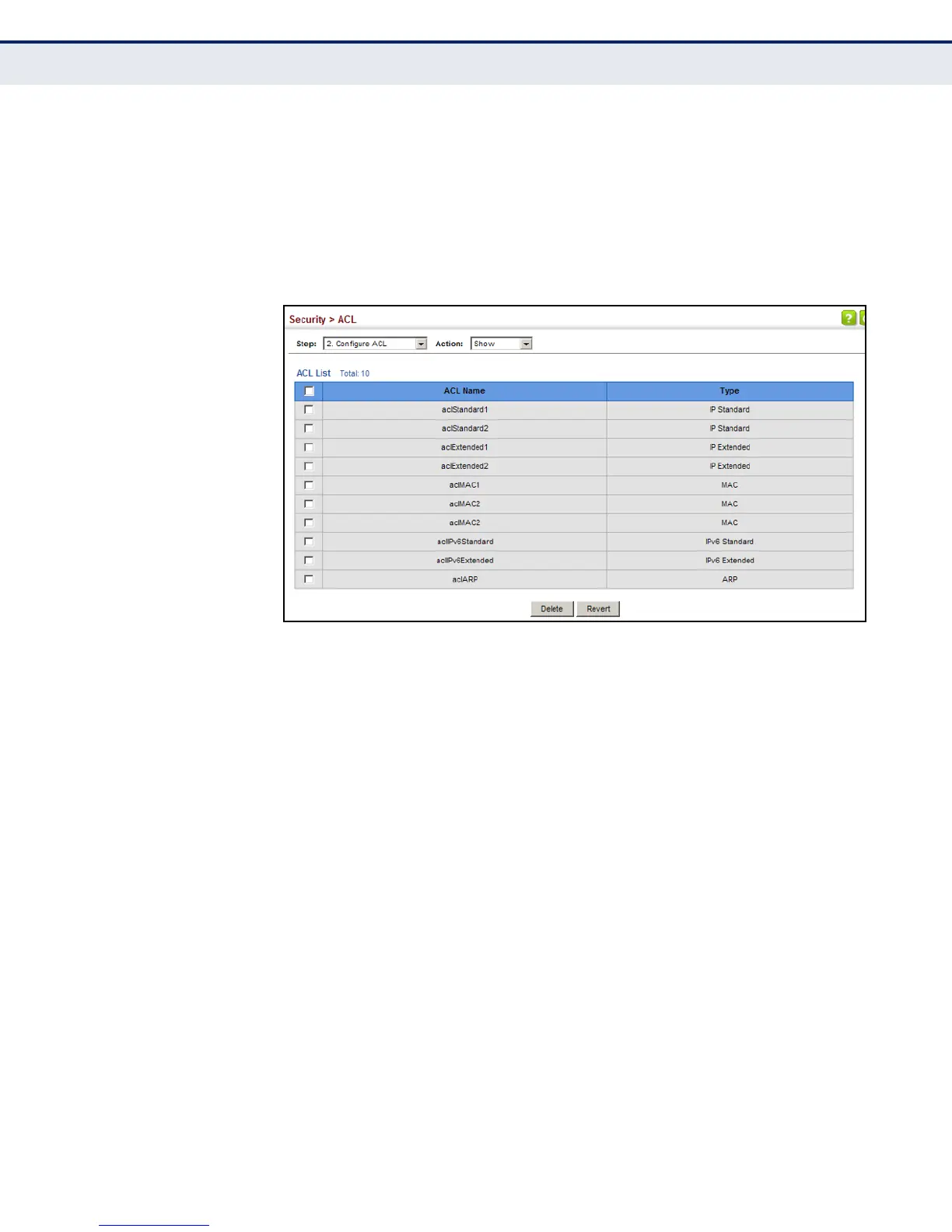

Figure 194: Showing a List of ACLs
CONFIGURING A
STANDARD IPV4 ACL
Use the Security > ACL (Configure ACL - Add Rule - IP Standard) page to
configure a Standard IPv4 ACL.
CLI REFERENCES
◆ "permit, deny (Standard IP ACL)" on page 953
◆ "show ip access-list" on page 957
◆ "Time Range" on page 762
PARAMETERS
These parameters are displayed:
◆ Type – Selects the type of ACLs to show in the Name list.
◆ Name – Shows the names of ACLs matching the selected type.
◆ Action – An ACL can contain any combination of permit or deny rules.
◆ Address Type – Specifies the source IP address. Use “Any” to include
all possible addresses, “Host” to specify a specific host address in the
Address field, or “IP” to specify a range of addresses with the Address
and Subnet Mask fields. (Options: Any, Host, IP; Default: Any)
◆ Source IP Address – Source IP address.
