C
HAPTER
17
| Multicast Filtering
Layer 2 IGMP (Snooping and Query for IPv4)
– 614 –

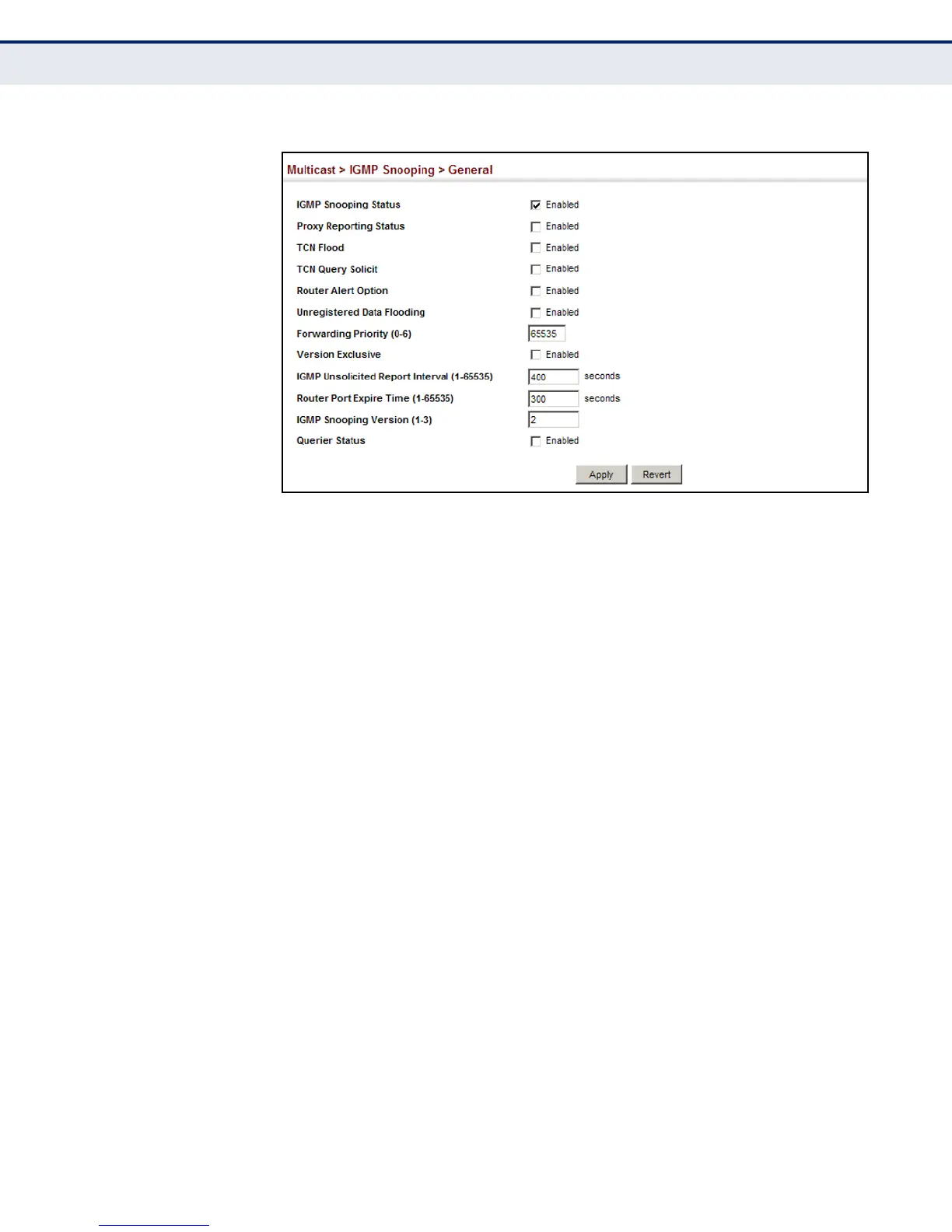

Figure 358: Configuring General Settings for IGMP Snooping
SPECIFYING STATIC
INTERFACES FOR A
MULTICAST ROUTER
Use the Multicast > IGMP Snooping > Multicast Router (Add) page to
statically attach an interface to a multicast router/switch.
Depending on network connections, IGMP snooping may not always be able
to locate the IGMP querier. Therefore, if the IGMP querier is a known
multicast router/switch connected over the network to an interface (port or
trunk) on the switch, the interface (and a specified VLAN) can be manually
configured to join all the current multicast groups supported by the
attached router. This can ensure that multicast traffic is passed to all the
appropriate interfaces within the switch.
CLI REFERENCES
â—† "Static Multicast Routing" on page 1226
COMMAND USAGE
IGMP Snooping must be enabled globally on the switch (see "Configuring
IGMP Snooping and Query Parameters" on page 610) before a multicast
router port can take effect.
PARAMETERS
These parameters are displayed:
◆ VLAN – Selects the VLAN which is to propagate all multicast traffic
coming from the attached multicast router. (Range: 1-4094)
◆ Interface – Activates the Port or Trunk scroll down list.
◆ Port or Trunk – Specifies the interface attached to a multicast router.
