C
HAPTER
17
| Multicast Filtering
MLD Snooping (Snooping and Query for IPv6)
– 637 –

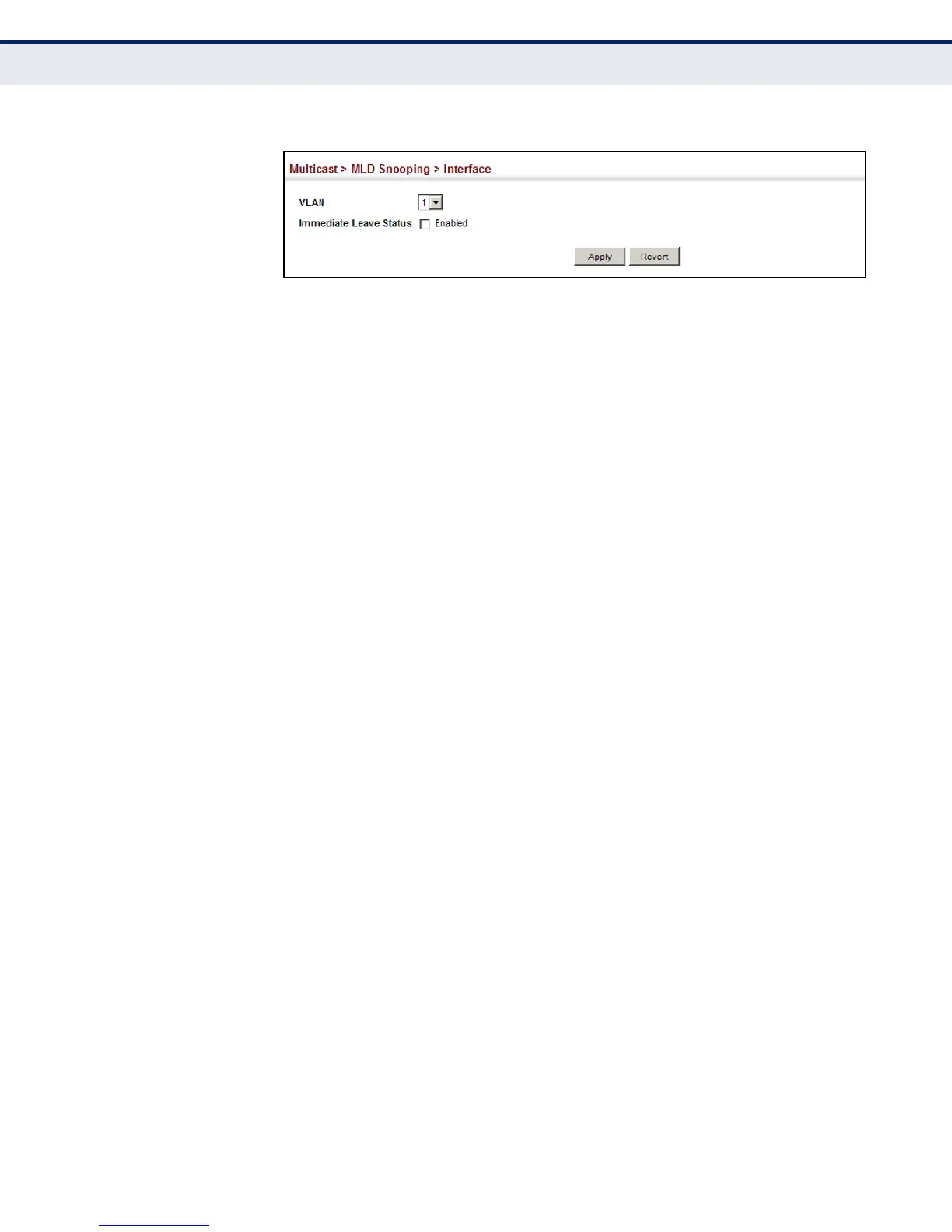

Figure 378: Configuring Immediate Leave for MLD Snooping
SPECIFYING STATIC
INTERFACES FOR AN
IPV6 MULTICAST
ROUTER
Use the Multicast > MLD Snooping > Multicast Router (Add Static Multicast
Router) page to statically attach an interface to an IPv6 multicast router/
switch.
Depending on your network connections, MLD snooping may not always be
able to locate the MLD querier. Therefore, if the MLD querier is a known
multicast router/switch connected over the network to an interface (port or
trunk) on the switch, you can manually configure that interface to join all
the current multicast groups.
CLI REFERENCES
â—† "ipv6 mld snooping vlan mrouter" on page 1245
COMMAND USAGE
MLD Snooping must be enabled globally on the switch (see "Configuring
MLD Snooping and Query Parameters" on page 634) before a multicast
router port can take effect.
PARAMETERS
These parameters are displayed:
◆ VLAN – Selects the VLAN which is to propagate all IPv6 multicast traffic
coming from the attached multicast router. (Range: 1-4094)
◆ Interface – Activates the Port or Trunk scroll down list.
◆ Port or Trunk – Specifies the interface attached to a multicast router.
WEB INTERFACE
To specify a static interface attached to a multicast router:
1. Click Multicast, MLD Snooping, Multicast Router.
2. Select Add Static Multicast Router from the Action list.
3. Select the VLAN which will forward all the corresponding IPv6 multicast
traffic, and select the port or trunk attached to the multicast router.
4. Click Apply.
