C
HAPTER
5
| Interface Configuration
Port Configuration
– 165 –
The switch can display diagnostic information for SFP modules which
support the SFF-8472 Specification for Diagnostic Monitoring Interface
for Optical Transceivers. This information allows administrators to
remotely diagnose problems with optical devices. This feature, referred
to as Digital Diagnostic Monitoring (DDM) provides information on
transceiver parameters.
WEB INTERFACE
To display identifying information and functional parameters for optical
transceivers:
1. Click Interface, Port, Transceiver.
2. Select a port from the scroll-down list.

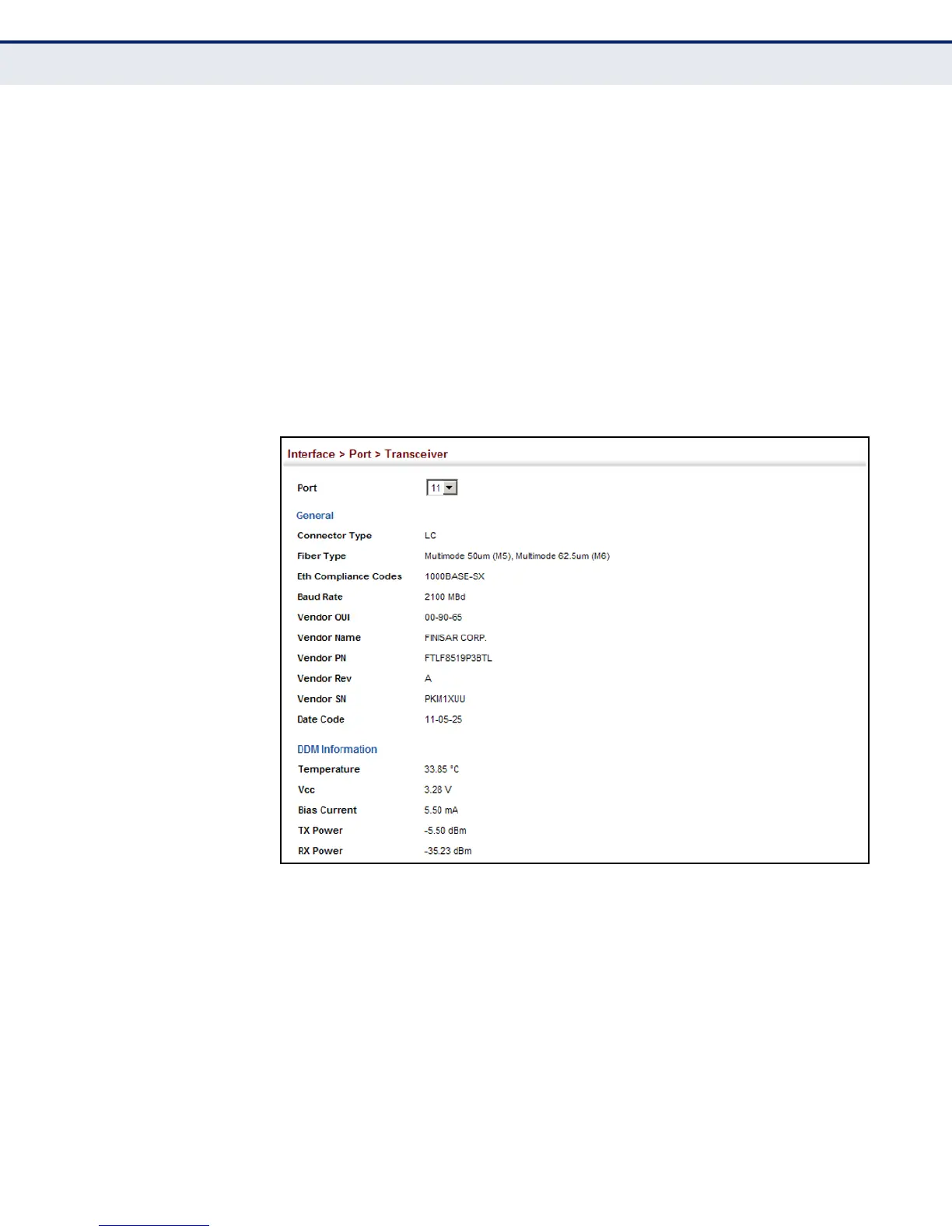

Figure 41: Displaying Transceiver Data
CONFIGURING
TRANSCEIVER
THRESHOLDS
Use the Interface > Port > Transceiver page to configure thresholds for
alarm and warning messages for optical transceivers which support Digital
Diagnostic Monitoring (DDM). This page also displays identifying
information for supported transceiver types, and operational parameters
for transceivers which support DDM.
CLI REFERENCES
â—† "transceiver-threshold-auto" on page 989
â—† "transceiver-monitor" on page 990
â—† "transceiver-threshold current" on page 990
â—† "transceiver-threshold rx-power" on page 992
