| VLAN Configuration
Configuring VLAN Mirroring
– 222 –
6. Click Apply.

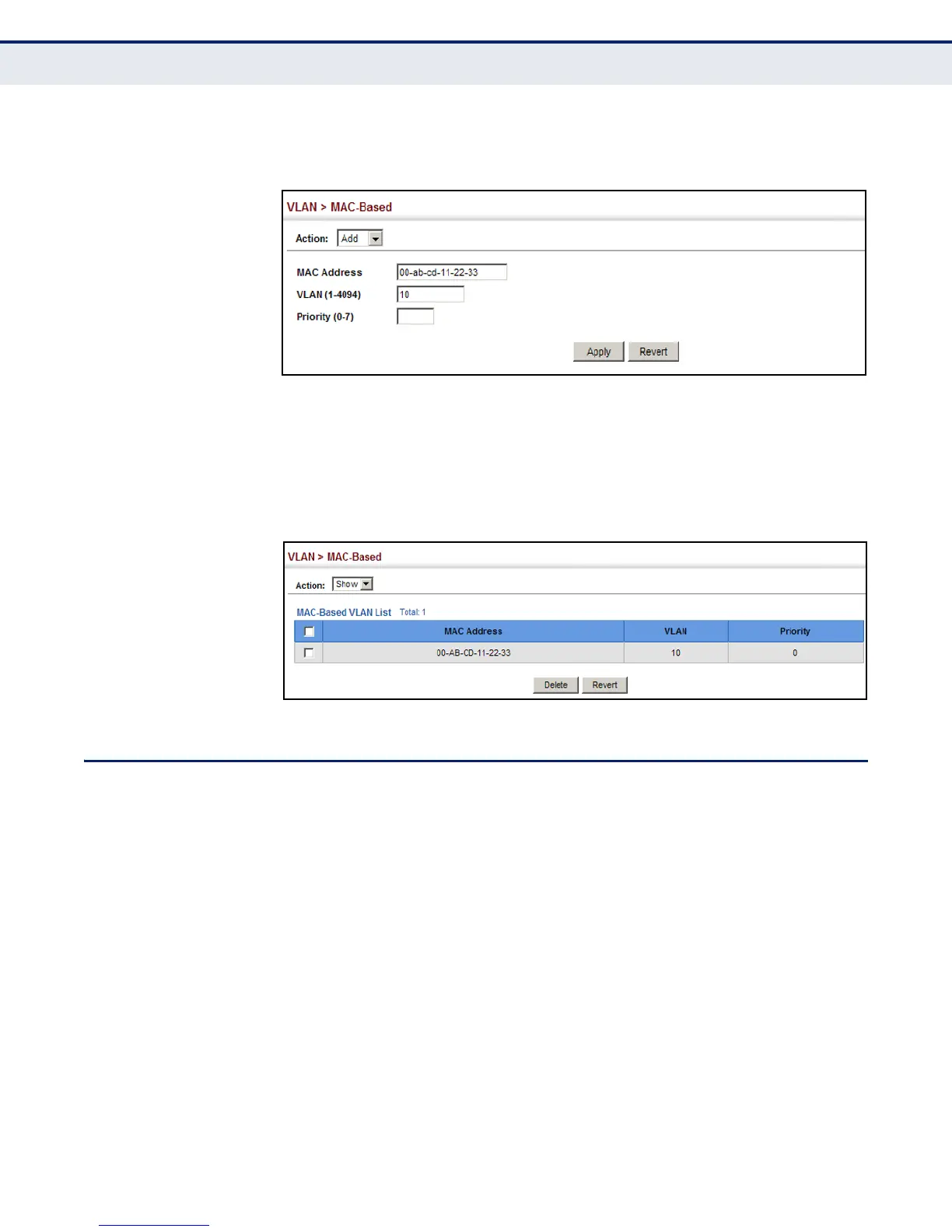

Figure 89: Configuring MAC-Based VLANs
To show the MAC addresses mapped to a VLAN:
1. Click VLAN, MAC-Based.
2. Select Show from the Action list.
Figure 90: Showing MAC-Based VLANs
CONFIGURING VLAN MIRRORING
Use the VLAN > Mirror (Add) page to mirror traffic from one or more
source VLANs to a target port for real-time analysis. You can then attach a
logic analyzer or RMON probe to the target port and study the traffic
crossing the source VLAN(s) in a completely unobtrusive manner.
CLI REFERENCES
â—† "Port Mirroring Commands" on page 1017
COMMAND USAGE
â—† All active ports in a source VLAN are monitored for ingress traffic only.
â—† All VLAN mirror sessions must share the same target port, preferably
one that is not a member of the source VLAN.
â—† When VLAN mirroring and port mirroring are both enabled, they must
use the same target port.
