| Interface Configuration
Trunk Configuration
– 180 –

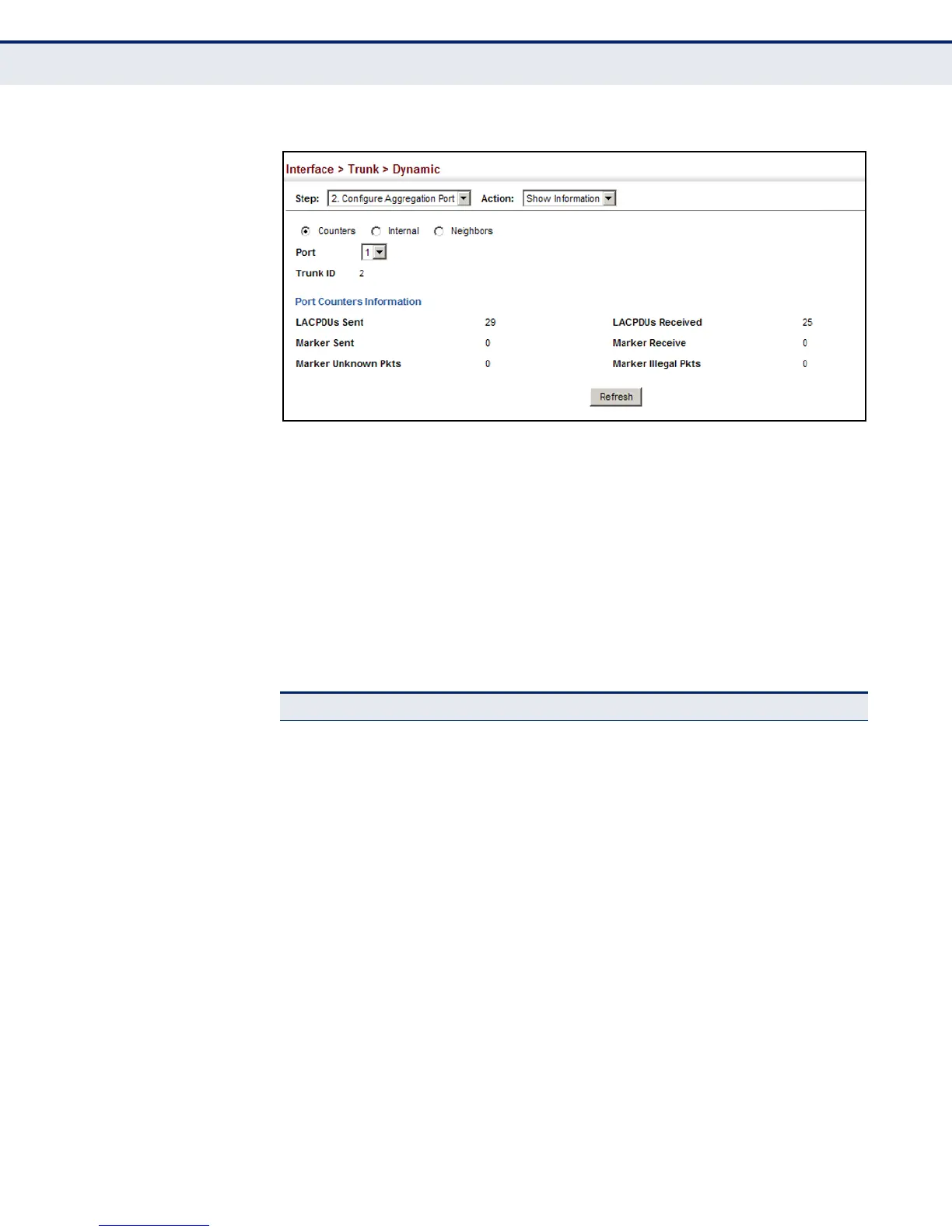

Figure 56: Displaying LACP Port Counters
DISPLAYING LACP
SETTINGS AND STATUS
FOR THE LOCAL SIDE
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Internal) page to display the configuration settings and
operational state for the local side of a link aggregation.
CLI REFERENCES
â—† "show lacp" on page 1012
PARAMETERS
These parameters are displayed:
Table 9: LACP Internal Configuration Information
Parameter Description
LACP System Priority LACP system priority assigned to this port channel.
LACP Port Priority LACP port priority assigned to this interface within the channel group.
Admin Key Current administrative value of the key for the aggregation port.
Oper Key Current operational value of the key for the aggregation port.
LACPDUs Interval Number of seconds before invalidating received LACPDU information.
Admin State,
Oper State
Administrative or operational values of the actor’s state parameters:
â—†
Expired – The actor’s receive machine is in the expired state;
â—†
Defaulted – The actor’s receive machine is using defaulted
operational partner information, administratively configured for
the partner.
â—†
Distributing – If false, distribution of outgoing frames on this link
is disabled; i.e., distribution is currently disabled and is not
expected to be enabled in the absence of administrative changes
or changes in received protocol information.
â—†
Collecting – Collection of incoming frames on this link is enabled;
i.e., collection is currently enabled and is not expected to be
disabled in the absence of administrative changes or changes in
received protocol information.
â—†
Synchronization – The System considers this link to be IN_SYNC;
i.e., it has been allocated to the correct Link Aggregation Group,
the group has been associated with a compatible Aggregator, and
the identity of the Link Aggregation Group is consistent with the
System ID and operational Key information transmitted.
