| VLAN Configuration
Protocol VLANs
– 216 –

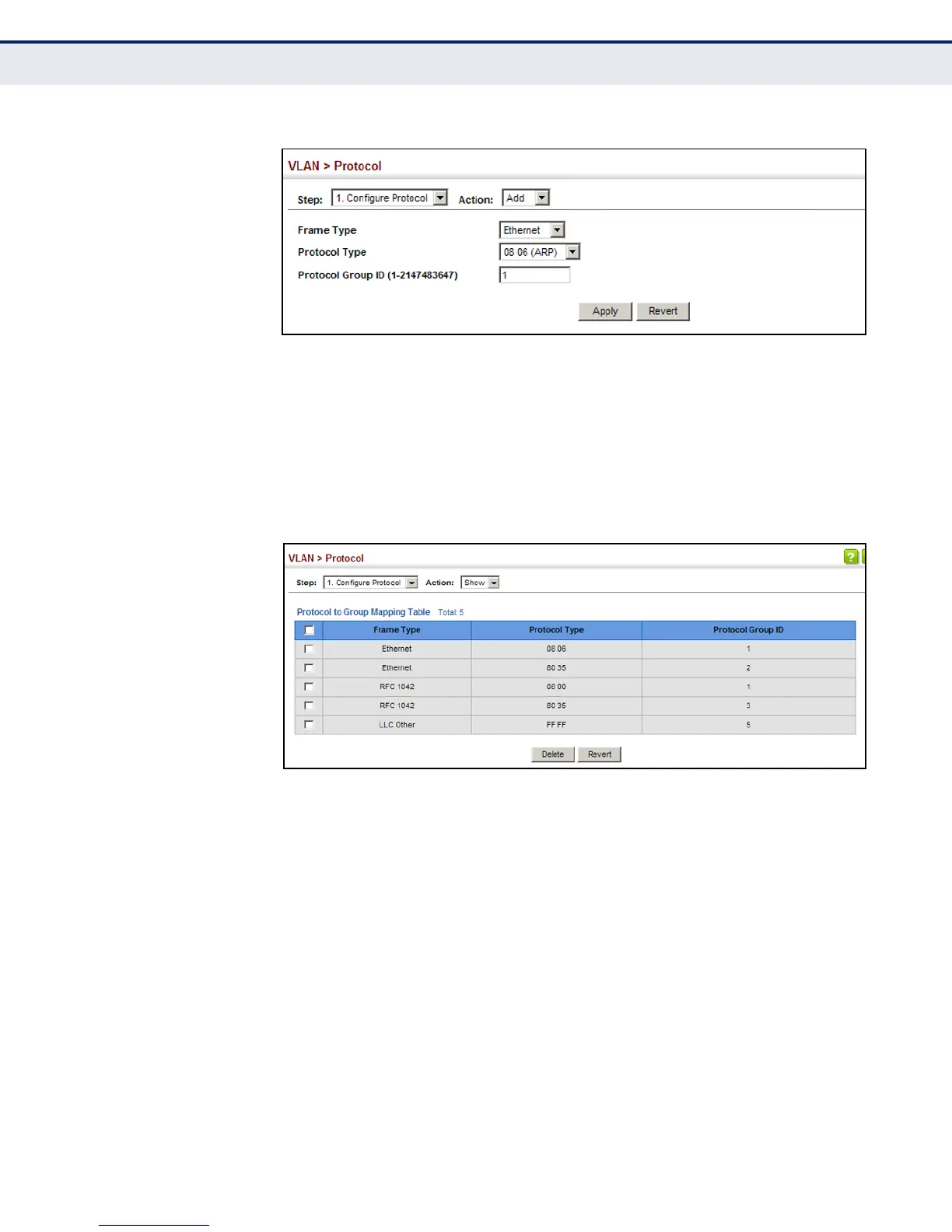

Figure 83: Configuring Protocol VLANs
To configure a protocol group:
1. Click VLAN, Protocol.
2. Select Configure Protocol from the Step list.
3. Select Show from the Action list.
Figure 84: Displaying Protocol VLANs
MAPPING
PROTOCOL GROUPS
TO INTERFACES
Use the VLAN > Protocol (Configure Interface - Add) page to map a
protocol group to a VLAN for each interface that will participate in the
group.
CLI REFERENCES
â—† "protocol-vlan protocol-group (Configuring Interfaces)" on page 1155
COMMAND USAGE
â—† When creating a protocol-based VLAN, only assign interfaces using this
configuration screen. If you assign interfaces using any of the other
VLAN menus such as the VLAN Static table (page 198), these interfaces
will admit traffic of any protocol type into the associated VLAN.
