C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 670 –

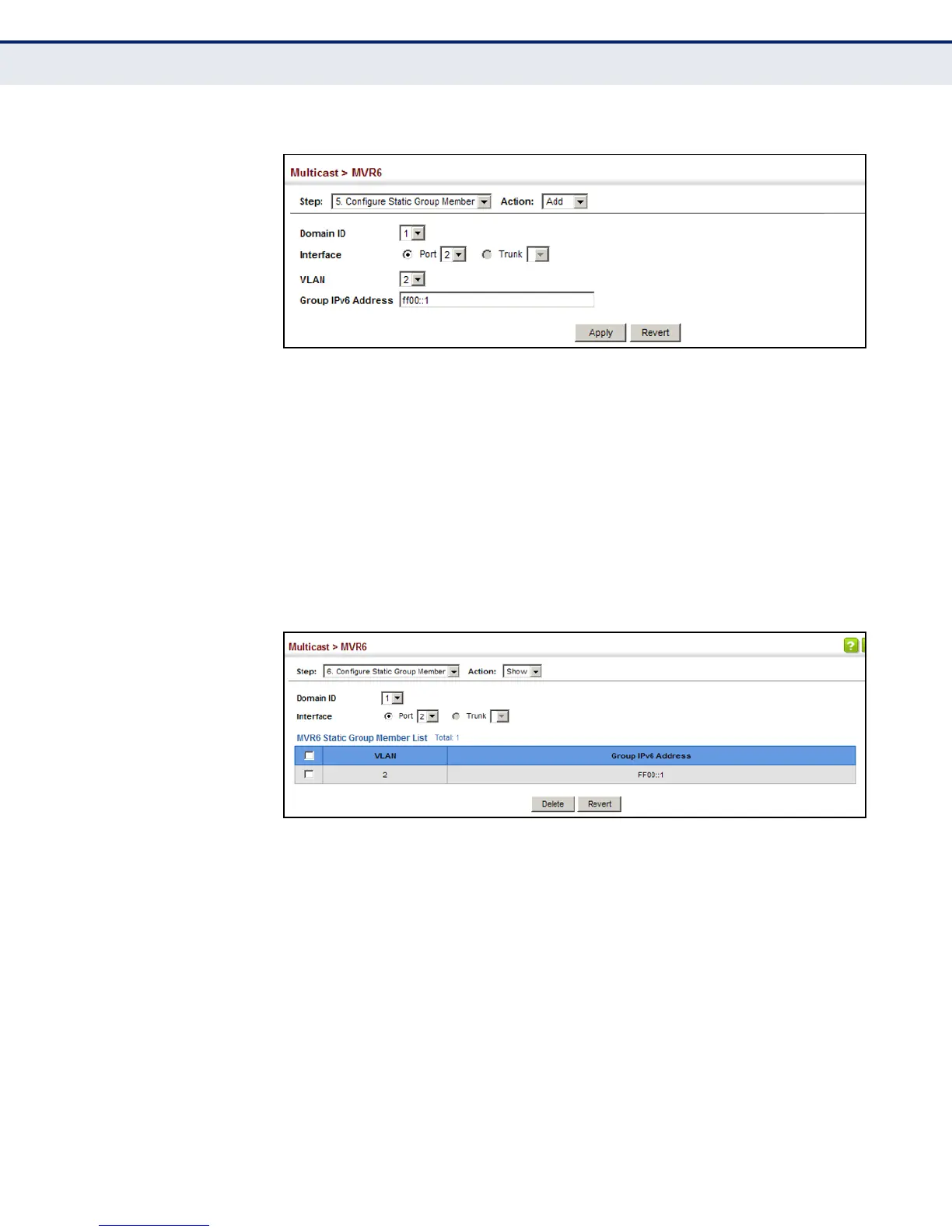

Figure 407: Assigning Static MVR6 Groups to a Port
To show the static MVR6 groups assigned to an interface:
1. Click Multicast, MVR6.
2. Select Configure Static Group Member from the Step list.
3. Select Show from the Action list.
4. Select an MVR6 domain.
5. Select the port or trunk for which to display this information.
Figure 408: Showing the Static MVR6 Groups Assigned to a Port
DISPLAYING MVR6
R
ECEIVER GROUPS
Use the Multicast > MVR6 (Show Member) page to show the multicast
groups either statically or dynamically assigned to the MVR6 receiver
groups on each interface.
CLI REFERENCES
◆ "show mvr6 members" on page 1291
PARAMETERS
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Group IPv6 Address – Multicast groups assigned to the MVR6 VLAN.
