C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 545 –
WEB INTERFACE
To show information for remote MEPs:
1. Click Administration, CFM.
2. Select Show Information from the Step list.
3. Select Show Remote MEP from the Action list.

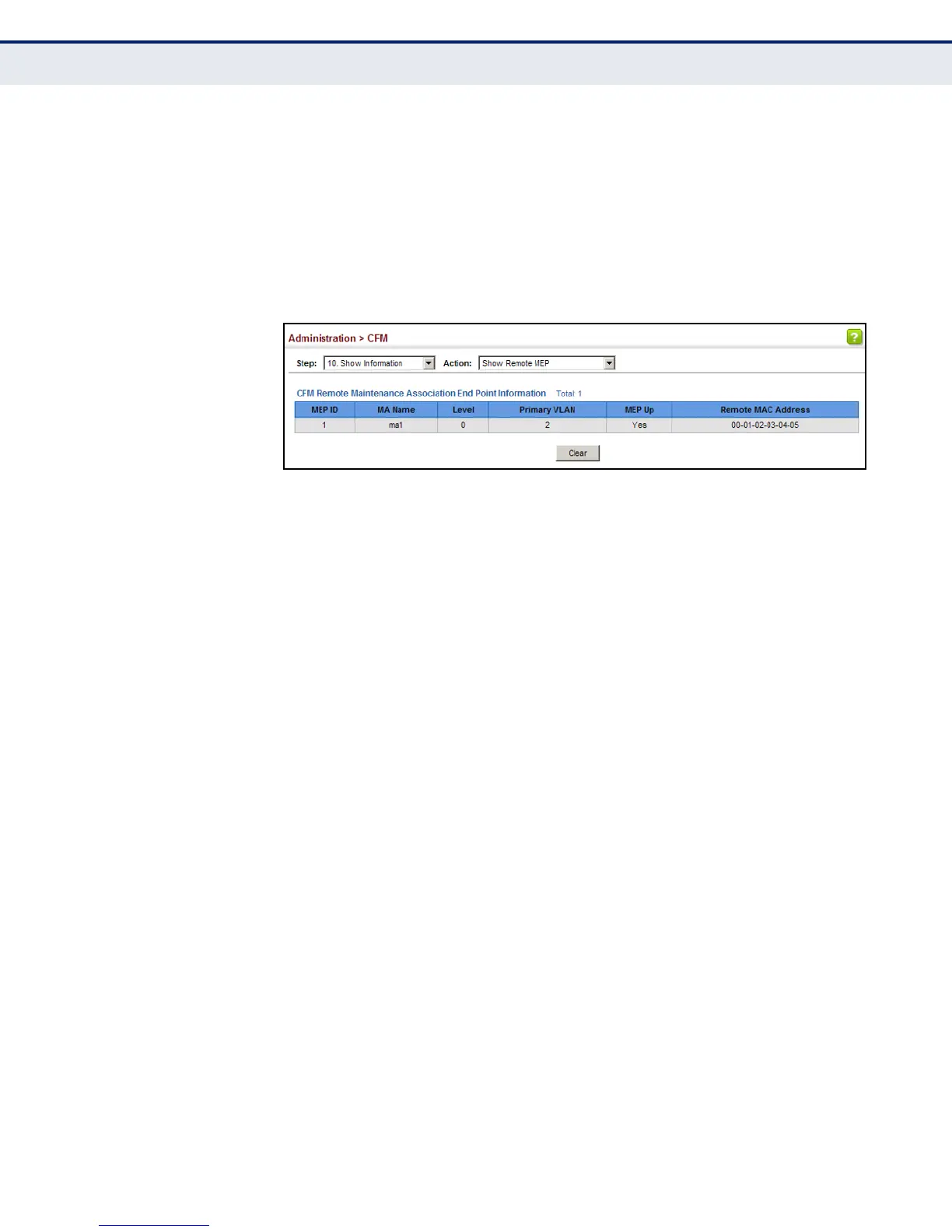

Figure 314: Showing Information on Remote MEPs
DISPLAYING DETAILS
FOR REMOTE MEPS
Use the Administration > CFM > Show Information (Show Remote MEP
Details) page to show detailed information for MEPs located on other
devices which have been discovered through continuity check messages, or
statically configured in the MEP database and verified through cross-check
messages.
CLI REFERENCES
â—† "show ethernet cfm maintenance-points remote detail" on page 1337
PARAMETERS
These parameters are displayed:
◆ MD Index – Domain index. (Range: 1-65535)
◆ MA Index – MA identifier. (Range: 1-2147483647)
◆ MEP ID – Maintenance end point identifier. (Range: 1-8191)
◆ MD Name – Maintenance domain name.
◆ MA Name – Maintenance association name.
◆ Level – Authorized maintenance level for this domain.
◆ MAC Address – MAC address of this MEP entry.
◆ Primary VLAN – Service VLAN ID.
◆ Incoming Port – Port to which this remote MEP is attached.
◆ CC Lifetime – Length of time to hold messages about this MEP in the
CCM database.
