C
HAPTER
5
| Interface Configuration
Trunk Configuration
– 183 –

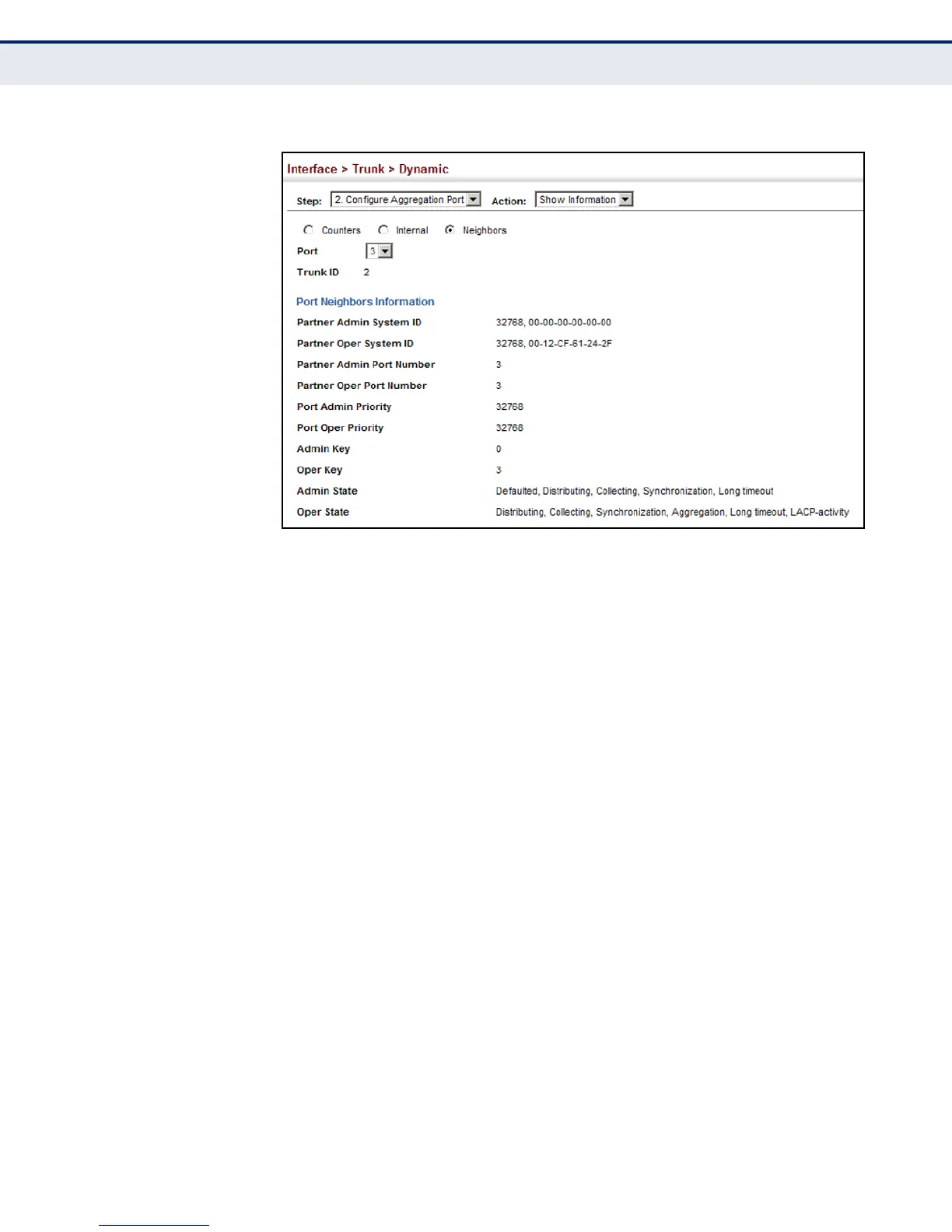

Figure 58: Displaying LACP Port Remote Information
CONFIGURING
LOAD BALANCING
Use the Interface > Trunk > Load Balance page to set the load-distribution
method used among ports in aggregated links.
CLI REFERENCES
â—† "port channel load-balance" on page 1004
COMMAND USAGE
â—† This command applies to all static and dynamic trunks on the switch.
â—† To ensure that the switch traffic load is distributed evenly across all
links in a trunk, select the source and destination addresses used in the
load-balance calculation to provide the best result for trunk
connections:
â–
Destination IP Address: All traffic with the same destination IP
address is output on the same link in a trunk. This mode works best
for switch-to-router trunk links where traffic through the switch is
destined for many different hosts. Do not use this mode for switch-
to-server trunk links where the destination IP address is the same
for all traffic.
â–
Destination MAC Address: All traffic with the same destination
MAC address is output on the same link in a trunk. This mode works
best for switch-to-switch trunk links where traffic through the
switch is destined for many different hosts. Do not use this mode
for switch-to-router trunk links where the destination MAC address
is the same for all traffic.
â–
Source and Destination IP Address: All traffic with the same
source and destination IP address is output on the same link in a
