C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 541 –
◆ MAC Address – MAC address of this MEP entry.
WEB INTERFACE
To show information for the MEPs configured on this device:
1. Click Administration, CFM.
2. Select Show Information from the Step list.
3. Select Show Local MEP from the Action list.

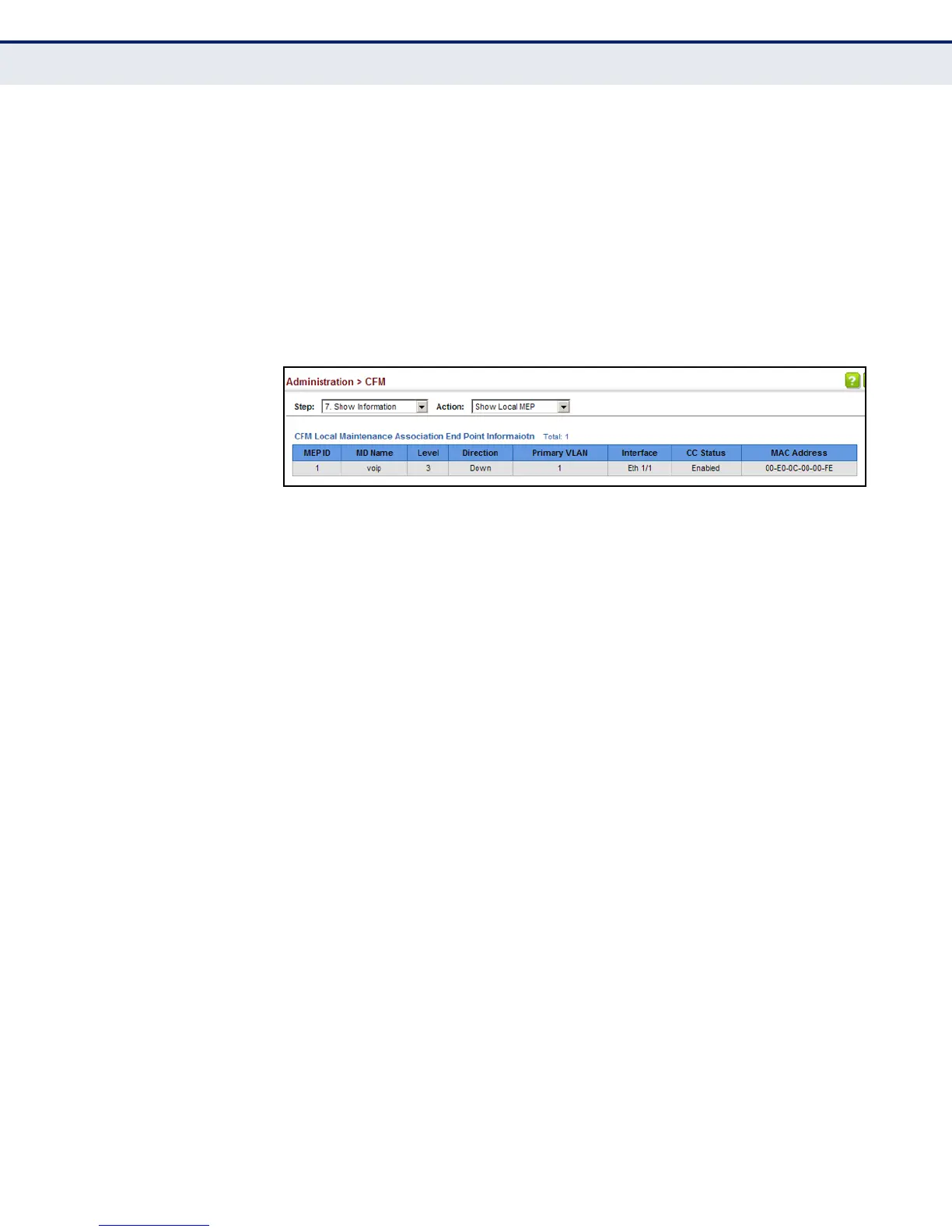

Figure 311: Showing Information on Local MEPs
DISPLAYING DETAILS
FOR LOCAL MEPS
Use the Administration > CFM > Show Information (Show Local MEP
Details) page to show detailed CFM information about a local MEP in the
continuity check database.
CLI REFERENCES
â—† "show ethernet cfm maintenance-points local detail mep" on page 1335
PARAMETERS
These parameters are displayed:
◆ MD Index – Domain index. (Range: 1-65535)
◆ MA Index – MA identifier. (Range: 1-2147483647)
◆ MEP ID – Maintenance end point identifier. (Range: 1-8191)
◆ MD Name – The maintenance domain for this entry.
◆ MA Name – Maintenance association to which this remote MEP
belongs.
◆ MA Name Format – The format of the Maintenance Association name,
including primary VID, character string, unsigned Integer 16, or
RFC 2865 VPN ID.
◆ Level – Maintenance level of the local maintenance point.
◆ Direction – The direction in which the MEP faces on the Bridge port (up
or down).
◆ Interface – The port to which this MEP is attached.
