C
HAPTER
16
| IP Services
Configuring the PPPoE Intermediate Agent
– 602 –

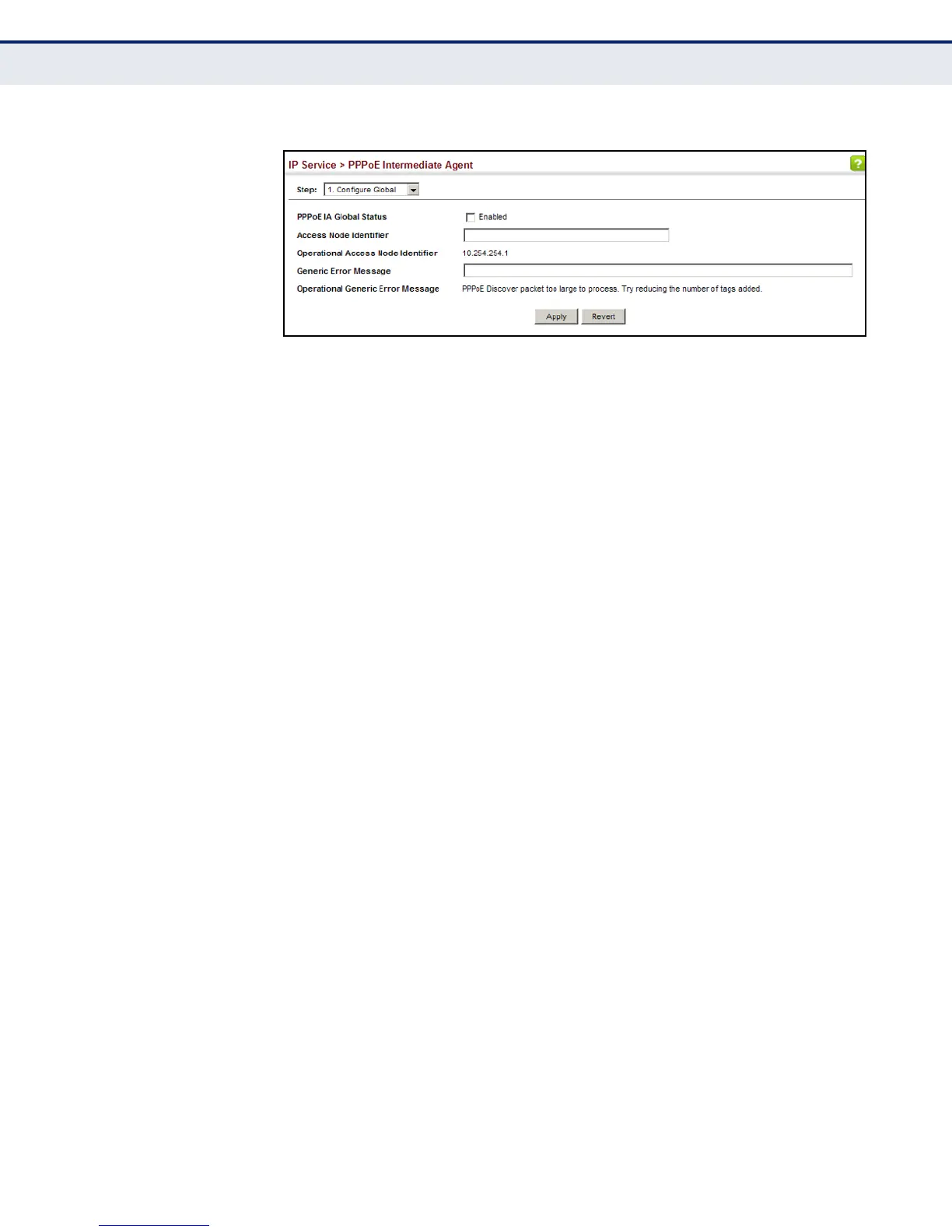

Figure 354: Configuring Global Settings for PPPoE Intermediate Agent
CONFIGURING
PPPOEIA INTERFACE
SETTINGS
Use the IP Service > PPPoE Intermediate Agent (Configure Interface) page
to enable PPPoE IA on an interface, set trust status, enable vendor tag
stripping, and set the circuit ID and remote ID.
CLI REFERENCES
â—† "PPPoE Intermediate Agent" on page 865
PARAMETERS
These parameters are displayed:
◆ Interface – Port or trunk selection.
◆ PPPoE IA Status – Enables the PPPoE IA on an interface.
(Default: Disabled)
Note that PPPoE IA must also be enabled globally on the switch for this
command to take effect.
◆ Trust Status – Sets an interface to trusted mode to indicate that it is
connected to a PPPoE server. (Default: Disabled)
â–
Set any interfaces connecting the switch to a PPPoE Server as
trusted. Interfaces that connect the switch to users (PPPoE clients)
should be set as untrusted.
â–
At least one trusted interface must be configured on the switch for
the PPPoE IA to function.
◆ Vendor Tag Strip – Enables the stripping of vendor tags from PPPoE
Discovery packets sent from a PPPoE server. (Default: Disabled)
This parameter only applies to trusted interfaces. It is used to strip off
vendor-specific tags (which carry subscriber and line identification
information) in PPPoE Discovery packets received from an upstream
PPPoE server before forwarding them to a user.
◆ Circuit ID – String identifying the circuit identifier (or interface) on this
switch to which the user is connected. (Range: 1-10 ASCII characters;
Default: Unit/Port:VLAN-ID, or 0/Trunk-ID:VLAN-ID)
â–
The PPPoE server extracts the Line-ID tag from PPPoE discovery
stage messages, and uses the Circuit-ID field of that tag as a NAS-
Port-ID attribute in AAA access and accounting requests.
