C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 547 –

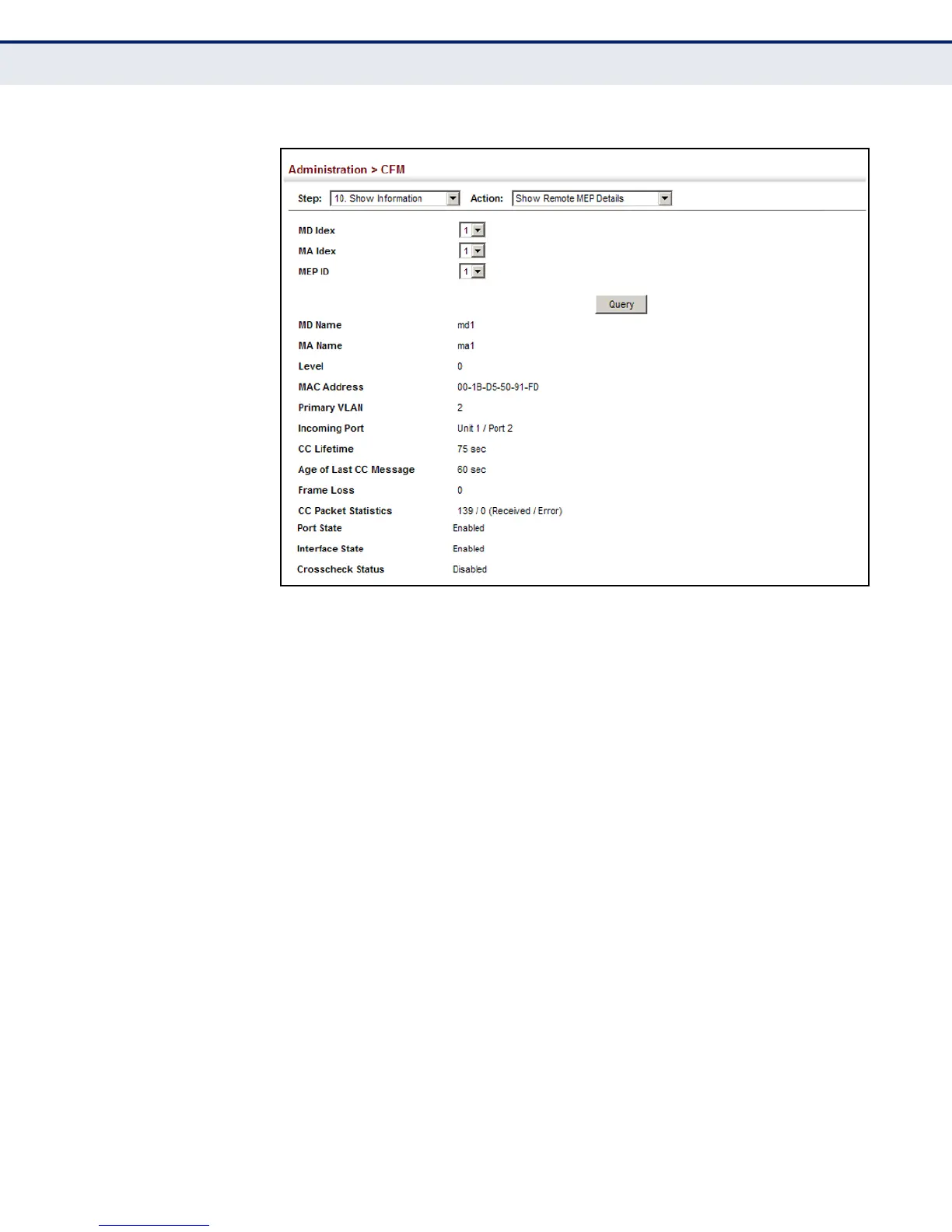

Figure 315: Showing Detailed Information on Remote MEPs
DISPLAYING THE
LINK TRACE CACHE
Use the Administration > CFM > Show Information (Show Link Trace
Cache) page to show information about link trace operations launched from
this device.
CLI REFERENCES
â—† "show ethernet cfm linktrace-cache" on page 1352
â—† "clear ethernet cfm linktrace-cache" on page 1351
PARAMETERS
These parameters are displayed:
◆ Hops – The number hops taken to reach the target MEP.
◆ MA – Maintenance association name.
◆ IP/Alias – IP address or DNS alias of the target device’s CPU.
◆ Forwarded – Shows whether or not this link trace message was
forwarded. A message is not forwarded if received by the target MEP.
◆ Ingress MAC Address – MAC address of the ingress port on the target
device.
◆ Egress MAC Address – MAC address of the egress port on the target
device.
