C HAPTER 10 | Class of Service
Layer 3/4 Priority Settings
– 283 –
WEB INTERFACE
To map CoS/CFI values to internal PHB/drop precedence:
1. Click Traffic, Priority, CoS to DSCP.
2. Select Configure from the Action list.
3. Select a port.
4. Set the PHB and drop precedence for any of the CoS/CFI combinations.
5. Click Apply.

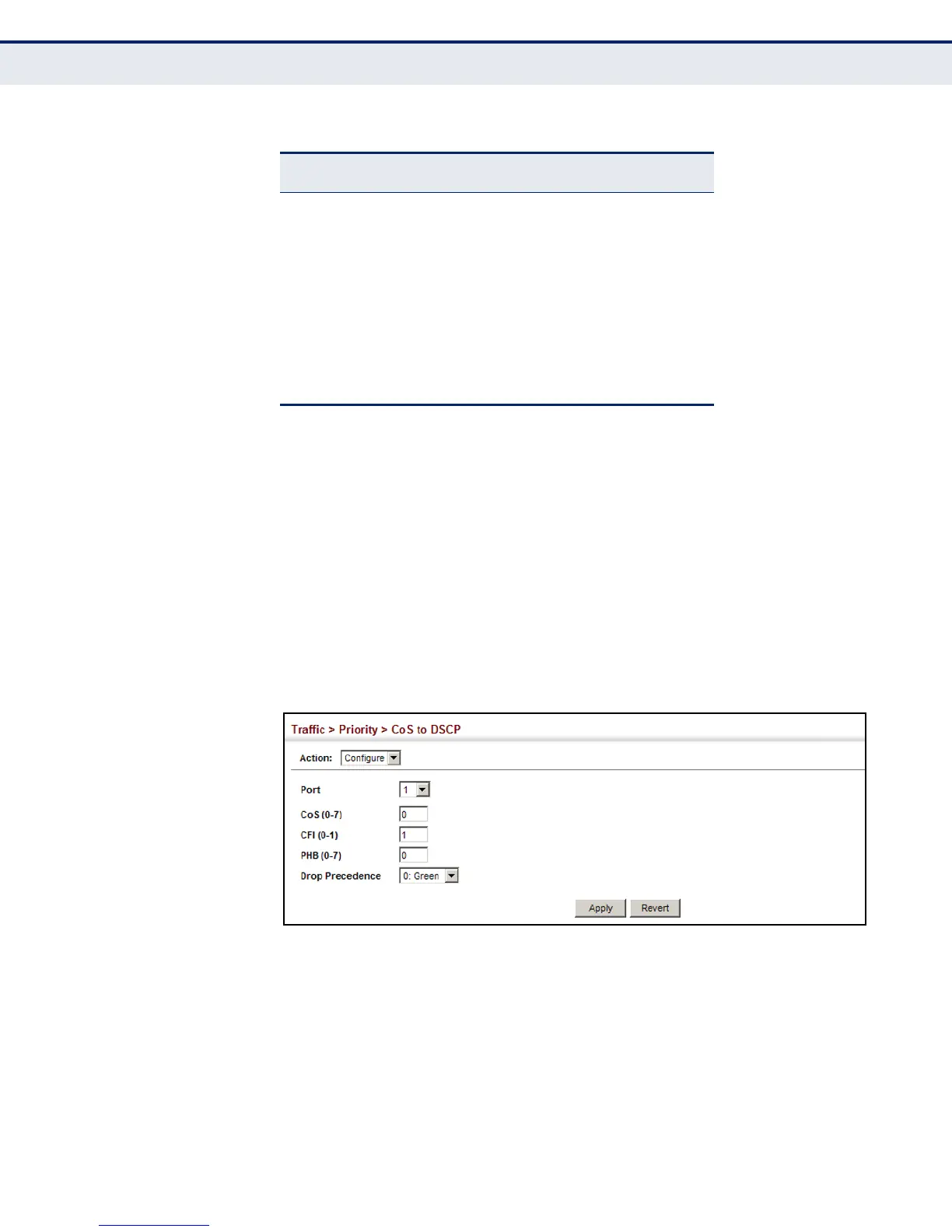

Figure 138: Configuring CoS to DSCP Internal Mapping
Table 18: Default Mapping of CoS/CFI to Internal PHB/Drop Precedence
CFI
CoS
0 1
0(0,0)(0,0)
1(1,0)(1,0)
2(2,0)(2,0)
3(3,0)(3,0)
4(4,0)(4,0)
5(5,0)(5,0)
6(6,0)(6,0)
7(7,0)(7,0)
