C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 666 –

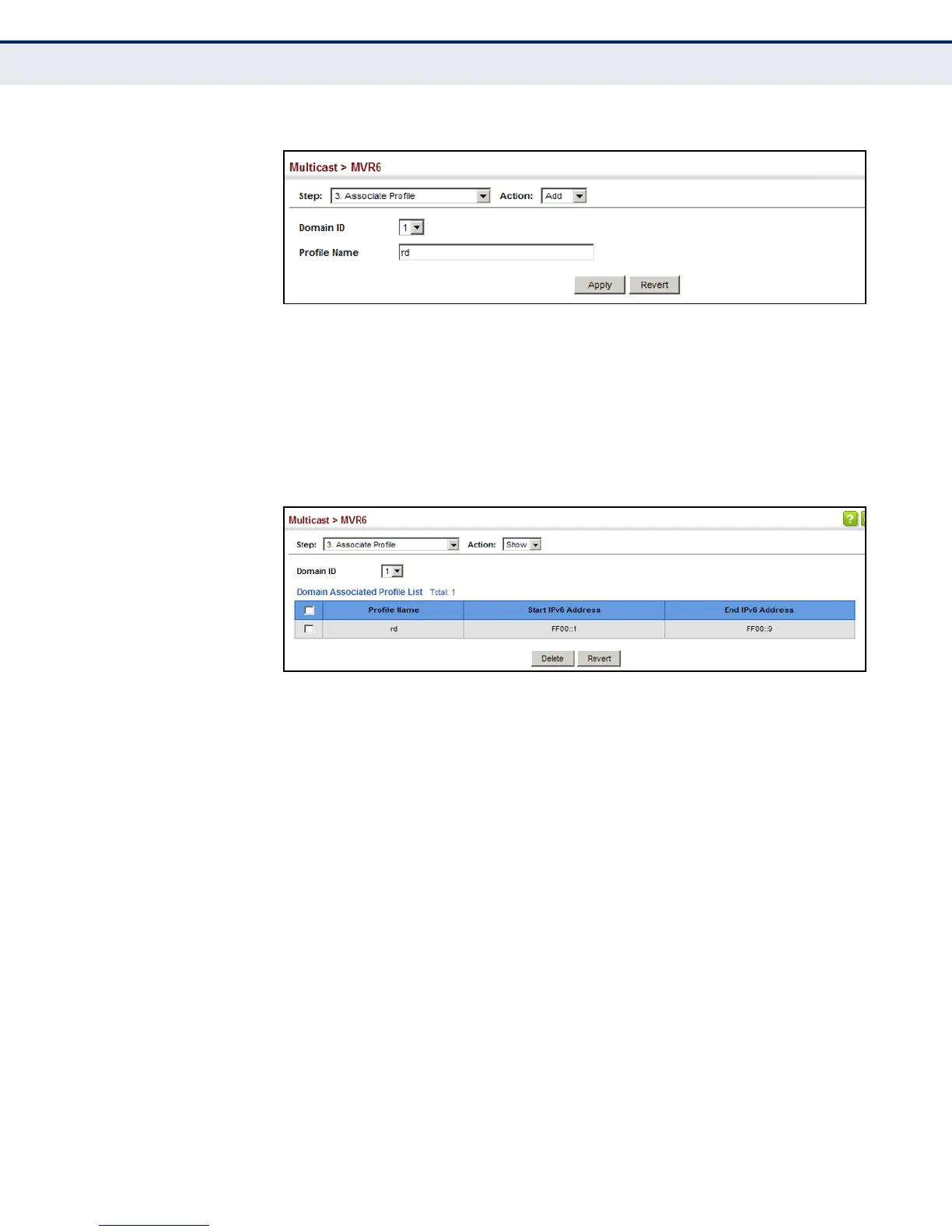

Figure 404: Assigning an MVR6 Group Address Profile to a Domain
To show the MVR6 group address profiles assigned to a domain:
1. Click Multicast, MVR6.
2. Select Associate Profile from the Step list.
3. Select Show from the Action list.
Figure 405: Showing MVR6 Group Address Profiles Assigned to a Domain
CONFIGURING MVR6
INTERFACE STATUS
Use the Multicast > MVR6 (Configure Interface) page to configure each
interface that participates in the MVR6 protocol as a source port or receiver
port. If you are sure that only one subscriber attached to an interface is
receiving multicast services, you can enable the immediate leave function.
CLI REFERENCES
â—† "MVR for IPv6" on page 1277
COMMAND USAGE
â—† A port configured as an MVR6 receiver or source port can join or leave
multicast groups configured under MVR6. A port which is not configured
as an MVR receiver or source port can use MLD snooping to join or
leave multicast groups using the standard rules for multicast filtering
(see "MLD Snooping" on page 1239).
â—† Receiver ports can belong to different VLANs, but should not be
configured as a member of the MVR6 VLAN. MVR6 allows a receiver
port to dynamically join or leave multicast groups within an MVR6
VLAN. Multicast groups can also be statically assigned to a receiver port
(see "Assigning Static MVR Multicast Groups to Interfaces" on
page 652).
