C
HAPTER
14
| Basic Administration Protocols
OAM Configuration
– 557 –
WEB INTERFACE
To display information about attached OAM-enabled devices:
1. Click Administration, OAM, Remote Interface.

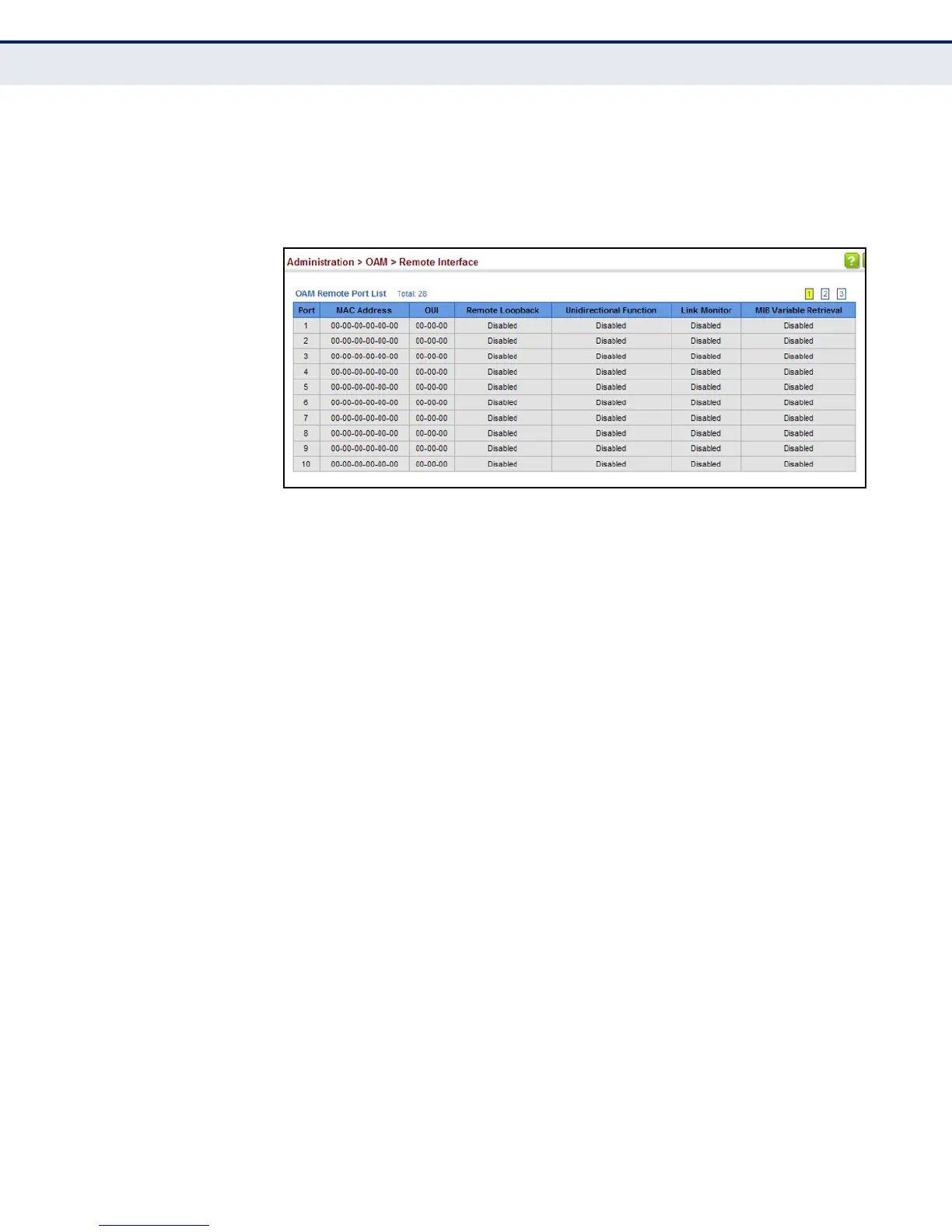

Figure 322: Displaying Status of Remote Interfaces
CONFIGURING
A REMOTE
LOOP BACK TEST
Use the Administration > OAM > Remote Loopback (Remote Loopback
Test) page to initiate a loop back test to the peer device attached to the
selected port.
CLI REFERENCES
â—† "efm oam remote-loopback" on page 1367
â—† "efm oam remote-loopback test" on page 1368
COMMAND USAGE
• You can use this command to perform an OAM remote loop back test on
the specified port. The port that you specify to run this test must be
connected to a peer OAM device capable of entering into OAM remote
loop back mode.
â—† During a remote loop back test, the remote OAM entity loops back
every frame except for OAMPDUs and pause frames.
â—† OAM remote loopback can be used for fault localization and link
performance testing. Statistics from both the local and remote DTE can
be queried and compared at any time during loop back testing.
â—† To perform a loopback test, first enable Remote Loop Back Mode, click
Test, and then click End. The number of packets transmitted and
received will be displayed.
